Seat Belt Component Views

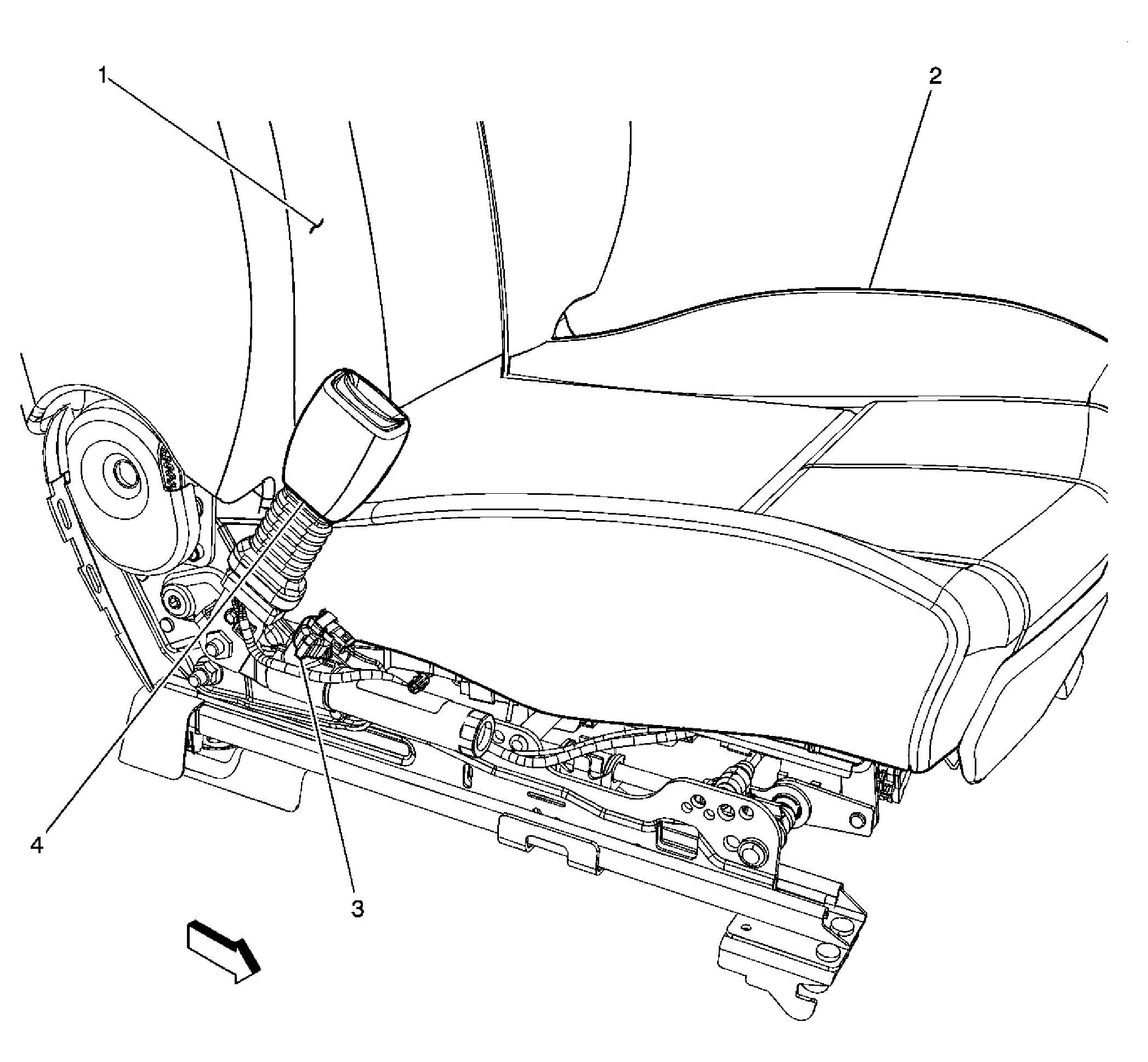

Fig 1: Seat Belt Switch and Pretensioner - Left Front Component View
GM1530180Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Back
2 Seat Cushion
3 Inflatable Restraint Seat Belt Pretensioner - LF
4 Seat Belt Switch - LF

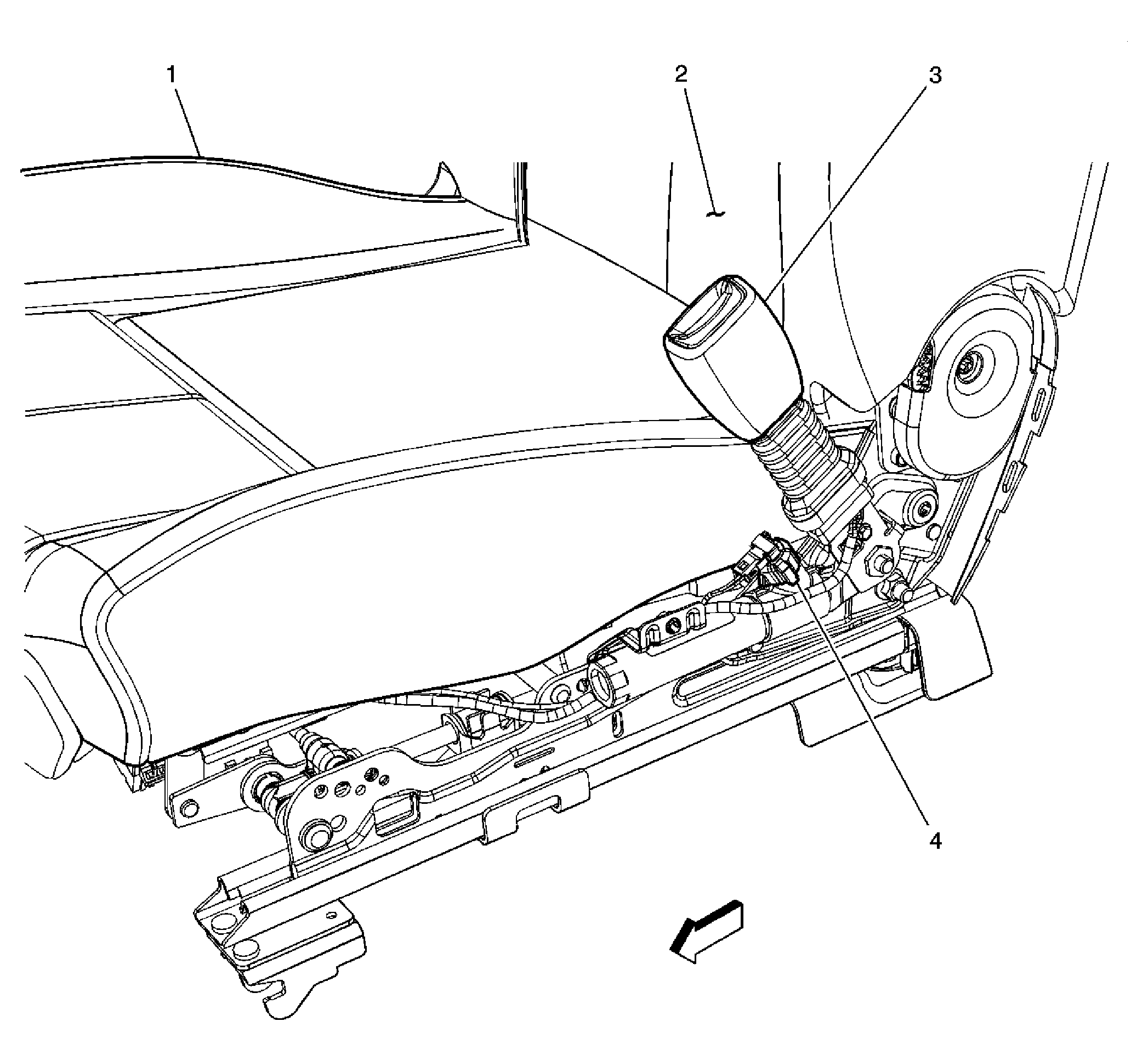

Fig 2: Seat Belt and Pretensioner - Right Front Component View
GM1530179Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Cushion
2 Seat Back
3 Seat Belt Switch - RF
4 Inflatable Restraint Seat Belt Pretensioner - RF
