Installation Procedure

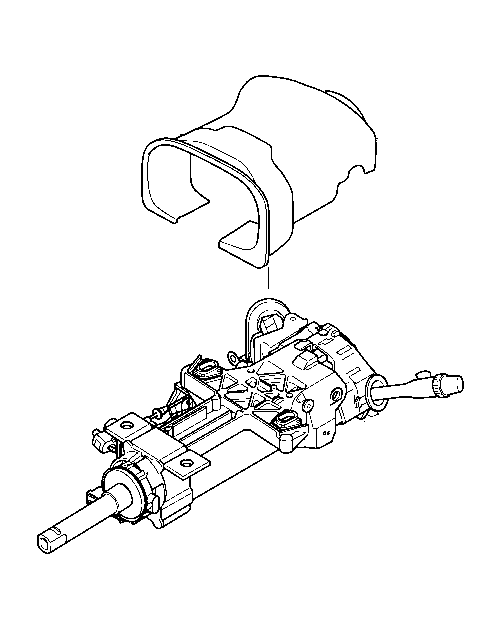

    Fig 1: Upper Steering Column Trim Cover
    GM1702769Courtesy of GENERAL MOTORS CORP.
  1. If necessary, install the upper steering column trim cover to the closeout trim cover.
  2. Install the upper trim cover to the steering column.
  3. Install the ignition lock cylinder.

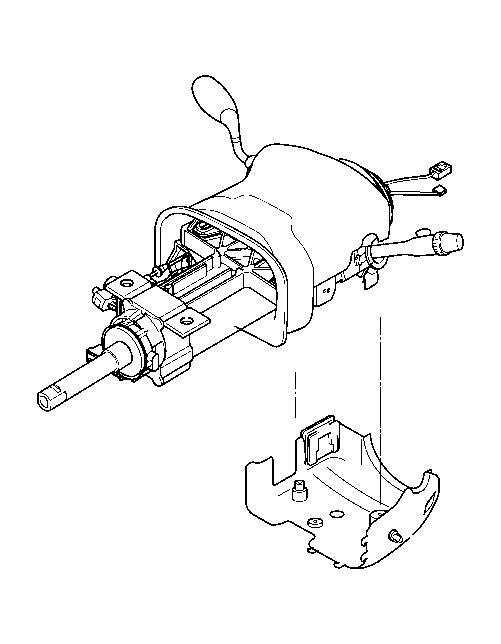

    4. Fig 2: Lower Trim Cover
    GM1702768Courtesy of GENERAL MOTORS CORP.
  4. Install the lower trim cover and ensure that the tabs engage with the tabs on the upper trim cover.

    Snap the tabs together.

  5. Connect the lower steering column trim cover to the closeout trim cover.
    6. Fig 3: View Of Tilt Lever
    GM603840Courtesy of GENERAL MOTORS CORP.
  6. Install the tilt lever (1).
  7. Install the gap hider. Refer to Instrument Cluster Replacement .
  8. Install the knee bolster. Refer to Driver Knee Bolster Replacement .
  9. Install the steering wheel. Refer to Steering Wheel Replacement .
  10. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (L26) or Battery Negative Cable Disconnection and Connection (LY7) .
  11. Enable the SIR system. Refer to SIR Disabling and Enabling .
