Installation Procedure

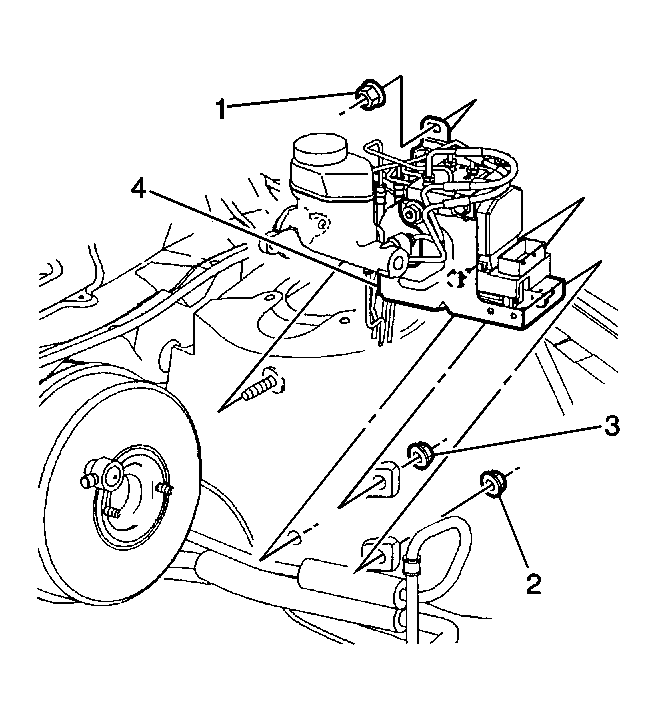

    Fig 1: View Of BPMV Bracket Nuts
    GM230411Courtesy of GENERAL MOTORS CORP.
  1. Install the BPMV bracket (4) to the wheel house.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the 3 BPMV bracket nuts (1, 2, 3) to the studs on the BPMV bracket (4).

    Tighten:  Tighten the 3 BPMV bracket nuts to 10 N.m (7 lb ft).

  3. Install the BPMV and EBCM as an assembly to the BPMV bracket. Refer to Brake Pressure Modulator Valve Replacement .
  4. Turn the ignition switch to the RUN position.
  5. Perform the Diagnostic Trouble Code (DTC) List - Vehicle .
