Lumbar Switch Replacement

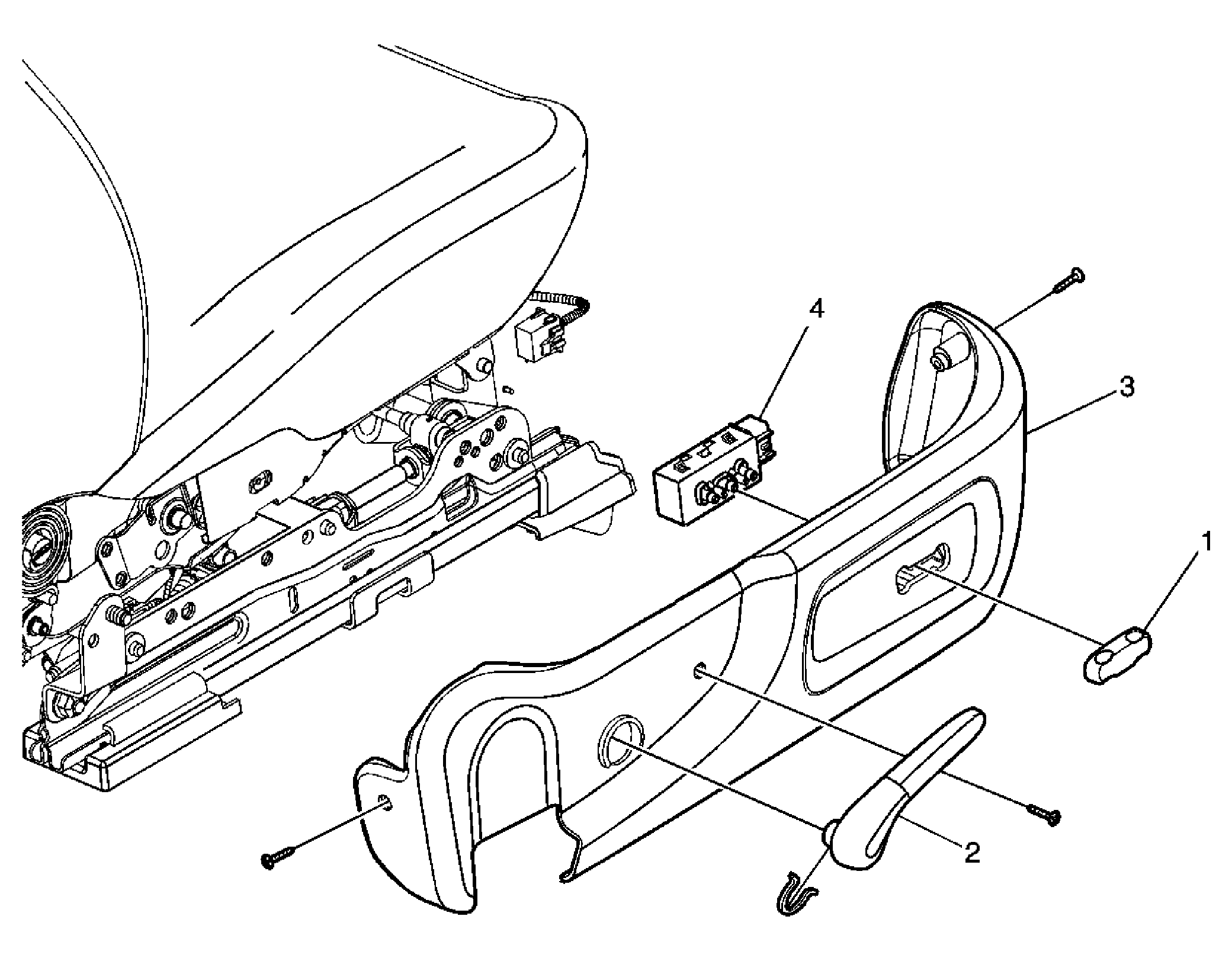

Fig 1: View Of Front Seat Lumbar Support switch
GM1633080Courtesy of GENERAL MOTORS CORP.
Lumbar Switch Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Power Seat Adjuster Switch Knob
2 Seat Recliner Handle
Refer to Seat Back Recliner Handle Replacement - Front .
3 Seat Adjuster Finish Cover
Refer to Front Seat Adjuster Track Finish Cover Replacement .
4 Power Seat Lumbar Switch
Tip:
  1. Disconnect the electrical connector.
  2. Release the switch from the finish cover.
