LED Indicator Replacement - Vehicle Security System

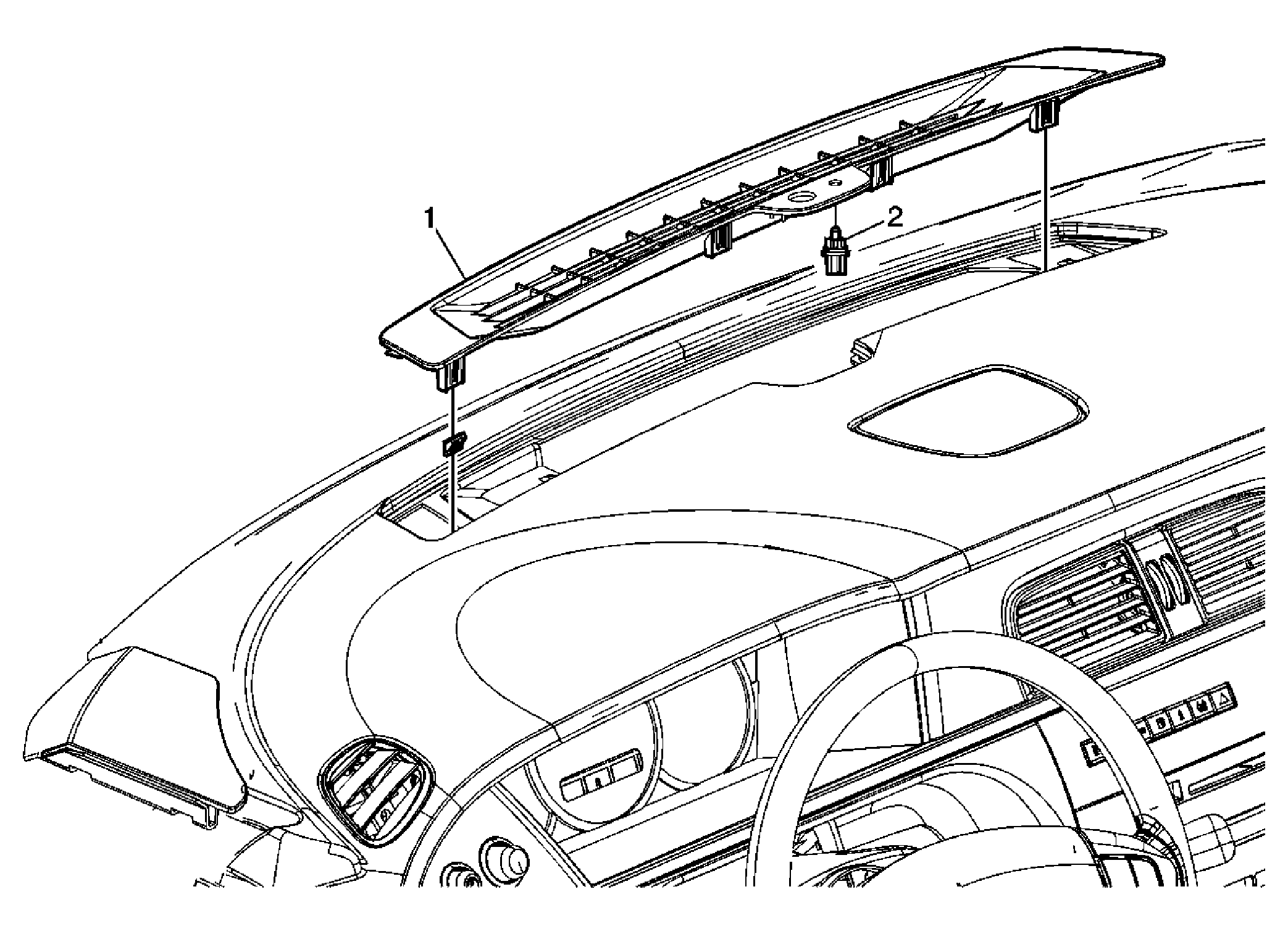

Courtesy of GENERAL MOTORS CORP. LED Indicator Replacement - Vehicle Security System
| Callout |
Component Name |
| 1 |
Grille, Windshield Defroster Nozzle
Tip:
Disconnect the electrical connectors. |
| 2 |
Lamp, Security Indicator
Tip:
Twist and pull down to remove from the defroster grille. |
