Power and Grounding Component Views

Fig 1: Power and Grounding Components (Right Side I/P Lighting)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	Instrument Panel
2	Fuse Block - I/P
3	I/P Courtesy Lamp - Right

Fig 2: Power and Grounding Components (RF of Engine Compartment)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	RF Strut Tower
2	Fuse Block - Underhood
3	Front Radiator Core Support
4	Front Radiator Core Support
5	Battery

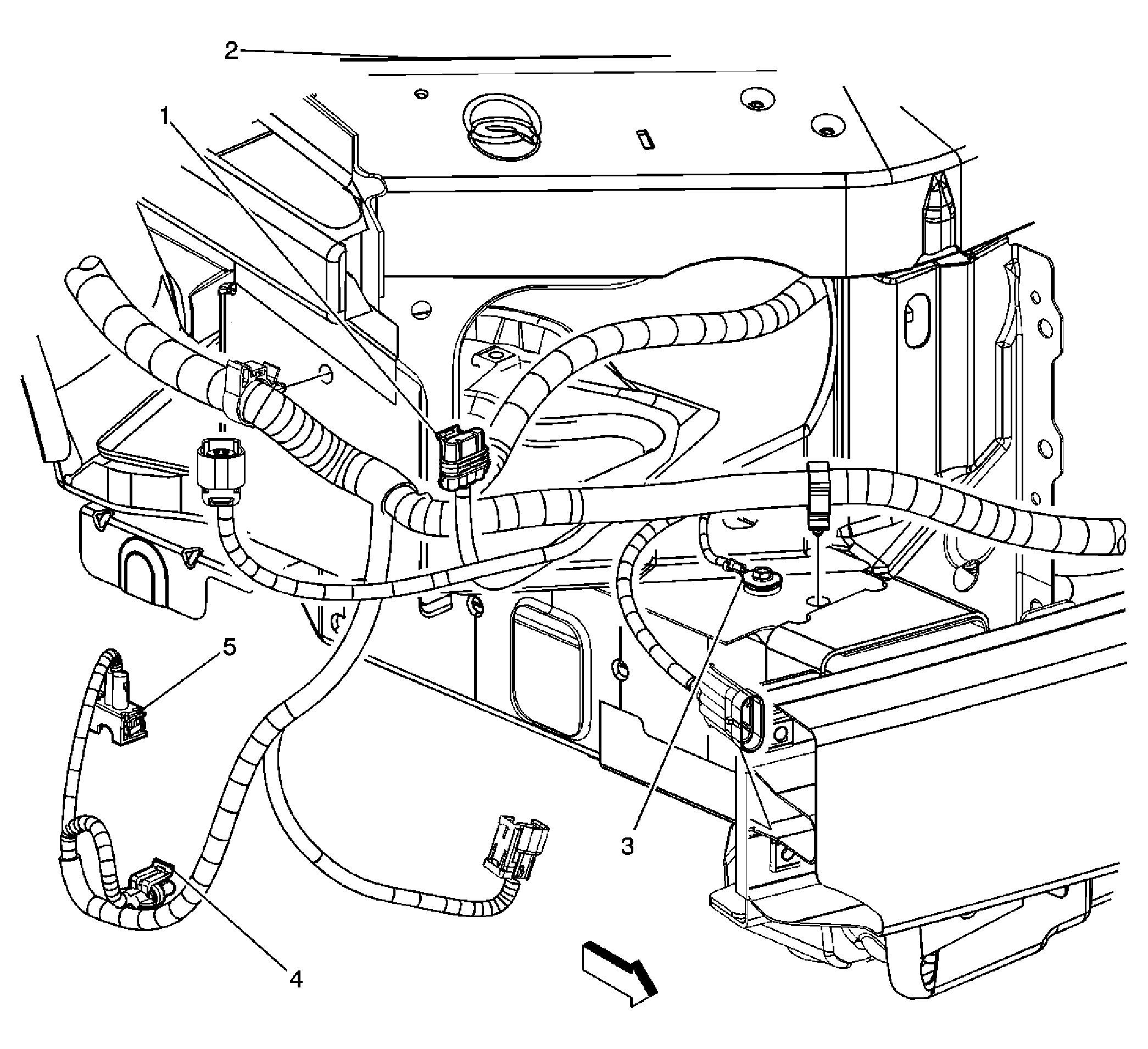

Fig 3: Power and Grounding Components (G100)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 3

Callout	Component Name
1	Headlamp Connector
2	Core Support - RF
3	G100
4	Washer Level Sensor Connector
5	Washer Pump Connector

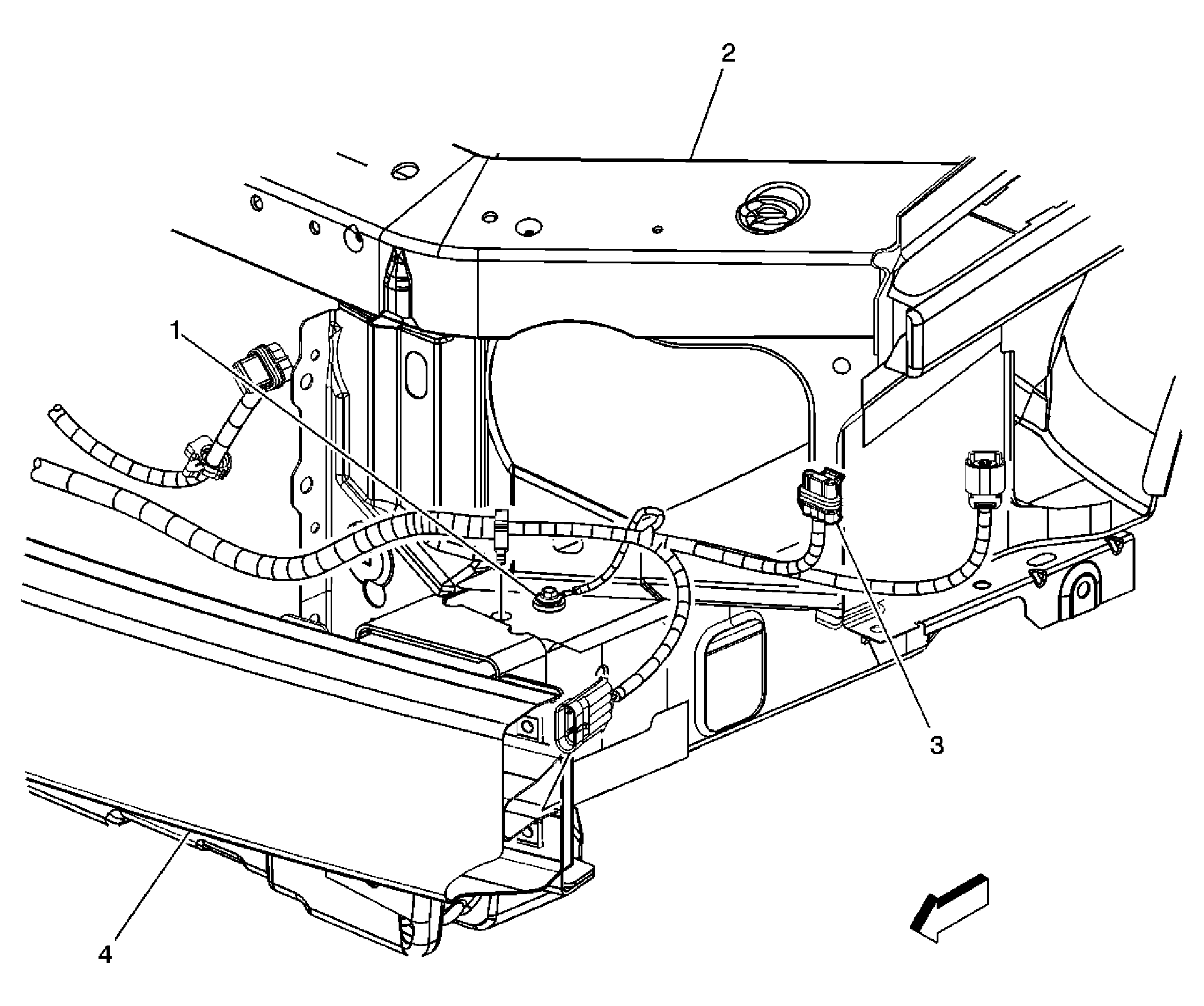

Fig 4: Power and Grounding Components (G101)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 4

Callout	Component Name
1	G101
2	Core Support - LF
3	Headlamp Connector
4	Bumper - LF

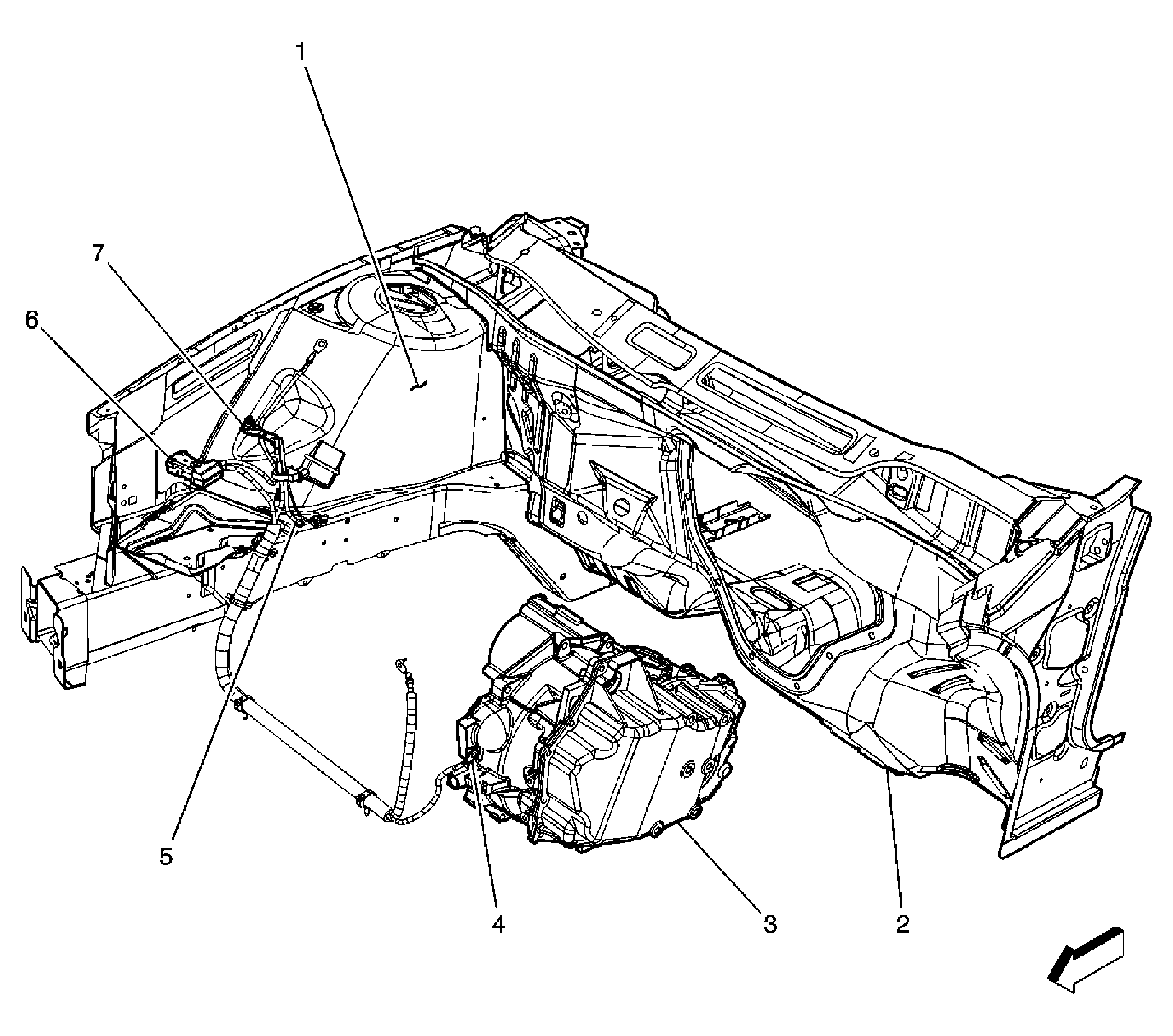

Fig 5: Power and Grounding Components (G102 and G111 - LY7)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 5

Callout	Component Name
1	RF Strut Tower
2	Dash Panel
3	Transmission
4	G111
5	G102
6	Positive Battery Terminal
7	Negative Battery Terminal

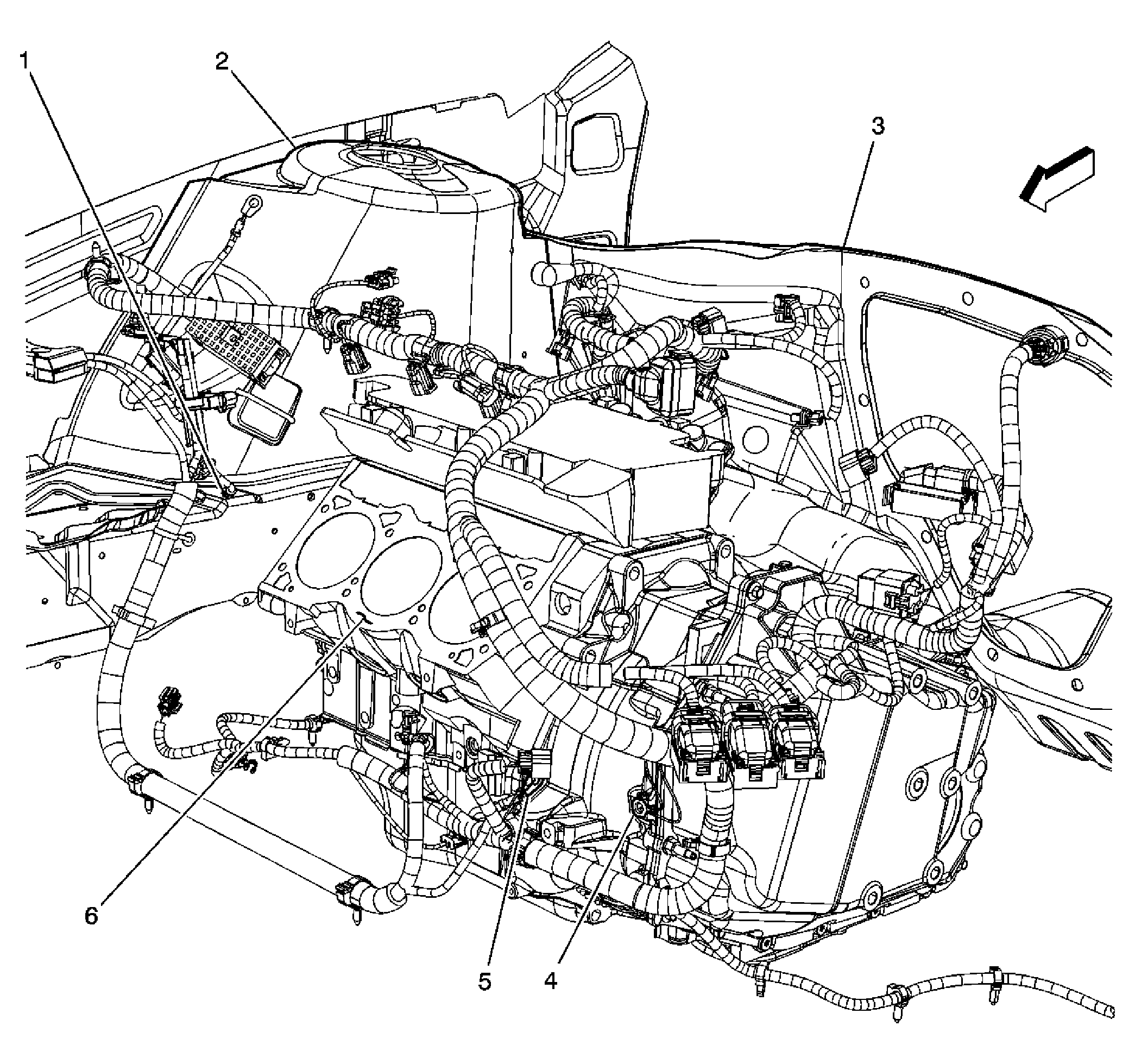

Fig 6: Power and Grounding Components (G102, G111, and G115 - L26)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 6

Callout	Component Name
1	G102
2	RF Strut Tower
3	Dash Panel
4	G115
5	G111
6	Engine Block

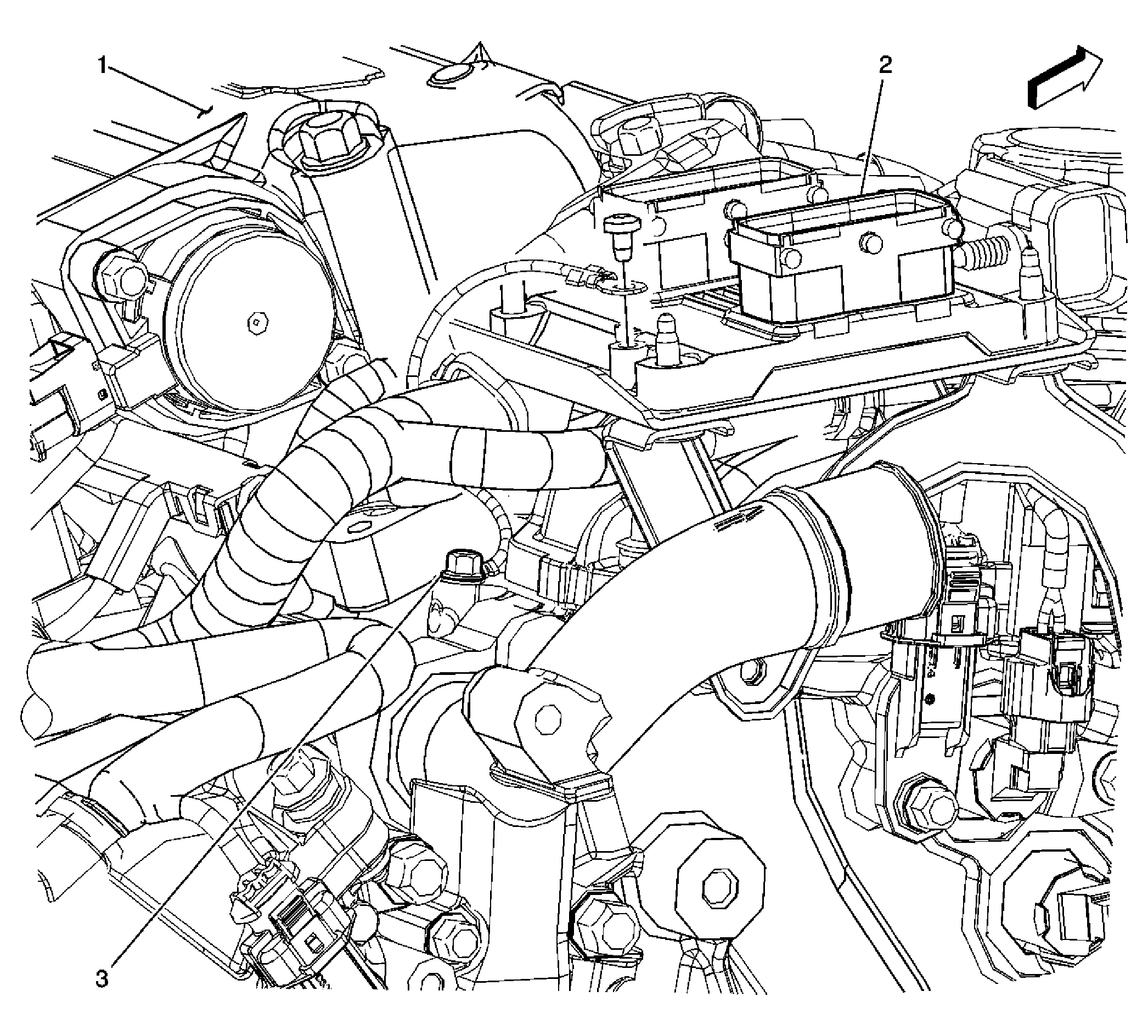

Fig 7: Power and Grounding Components (G103 - LY7)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 7

Callout	Component Name
1	Engine
2	Engine Control Module (ECM)
3	G103

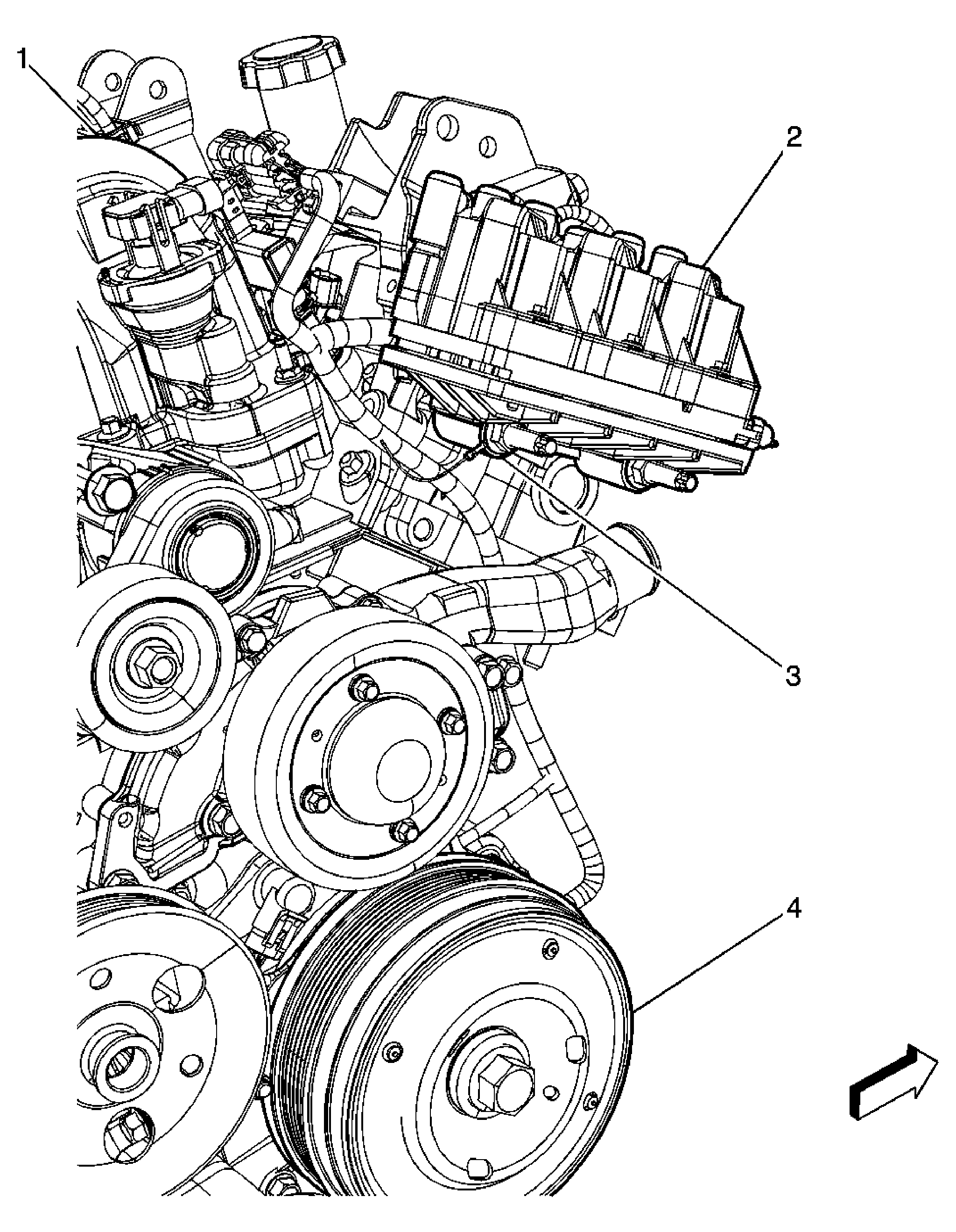

Fig 8: Power and Grounding Components (G112 - L26)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 8

Callout	Component Name
1	Intake Manifold
2	Ignition Control Module
3	G112
4	A/C Compressor Clutch

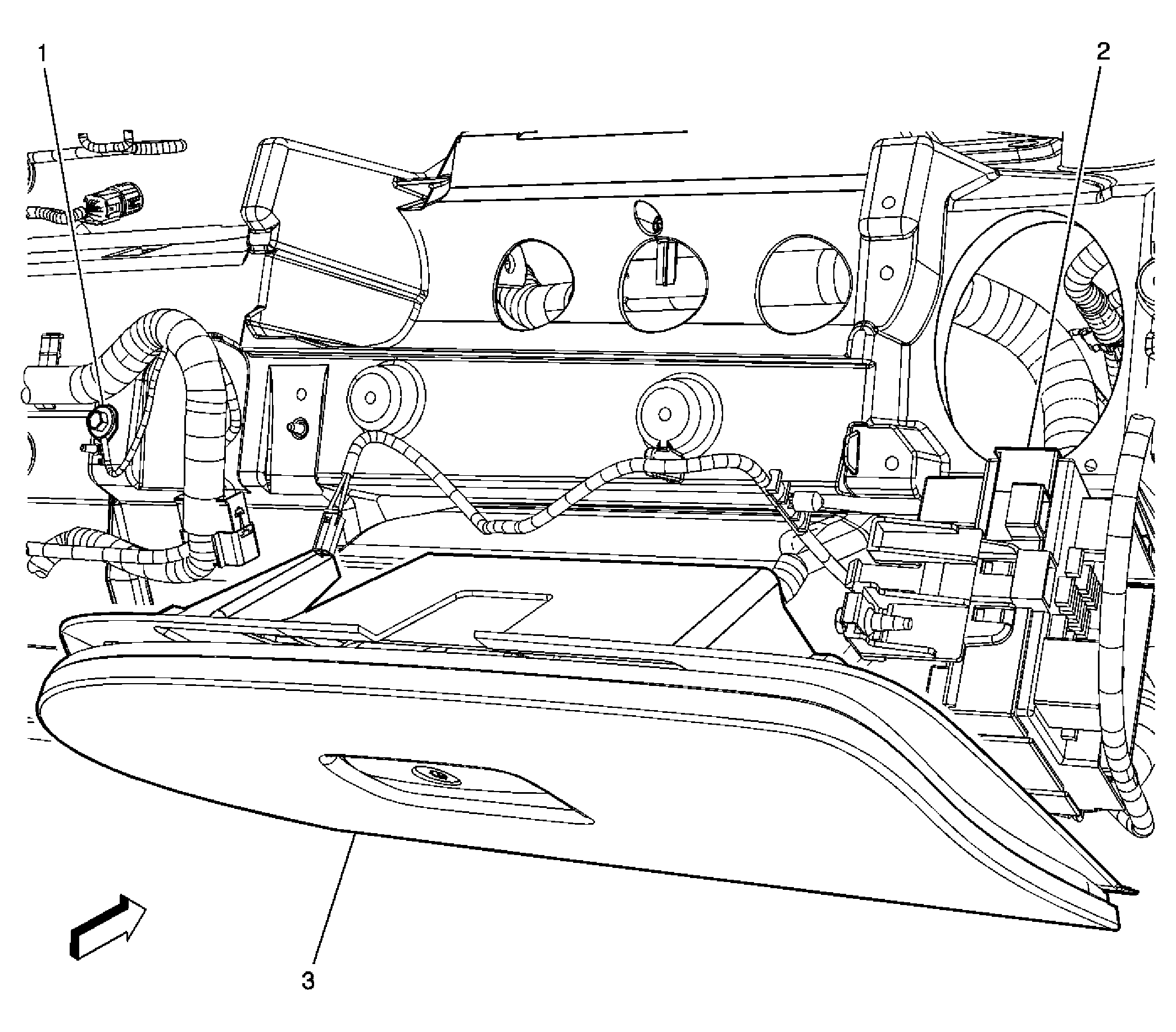

Fig 9: Power and Grounding Components (G201)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 9

Callout	Component Name
1	G201
2	Fuse Block - I/P
3	I/P Compartment Lid

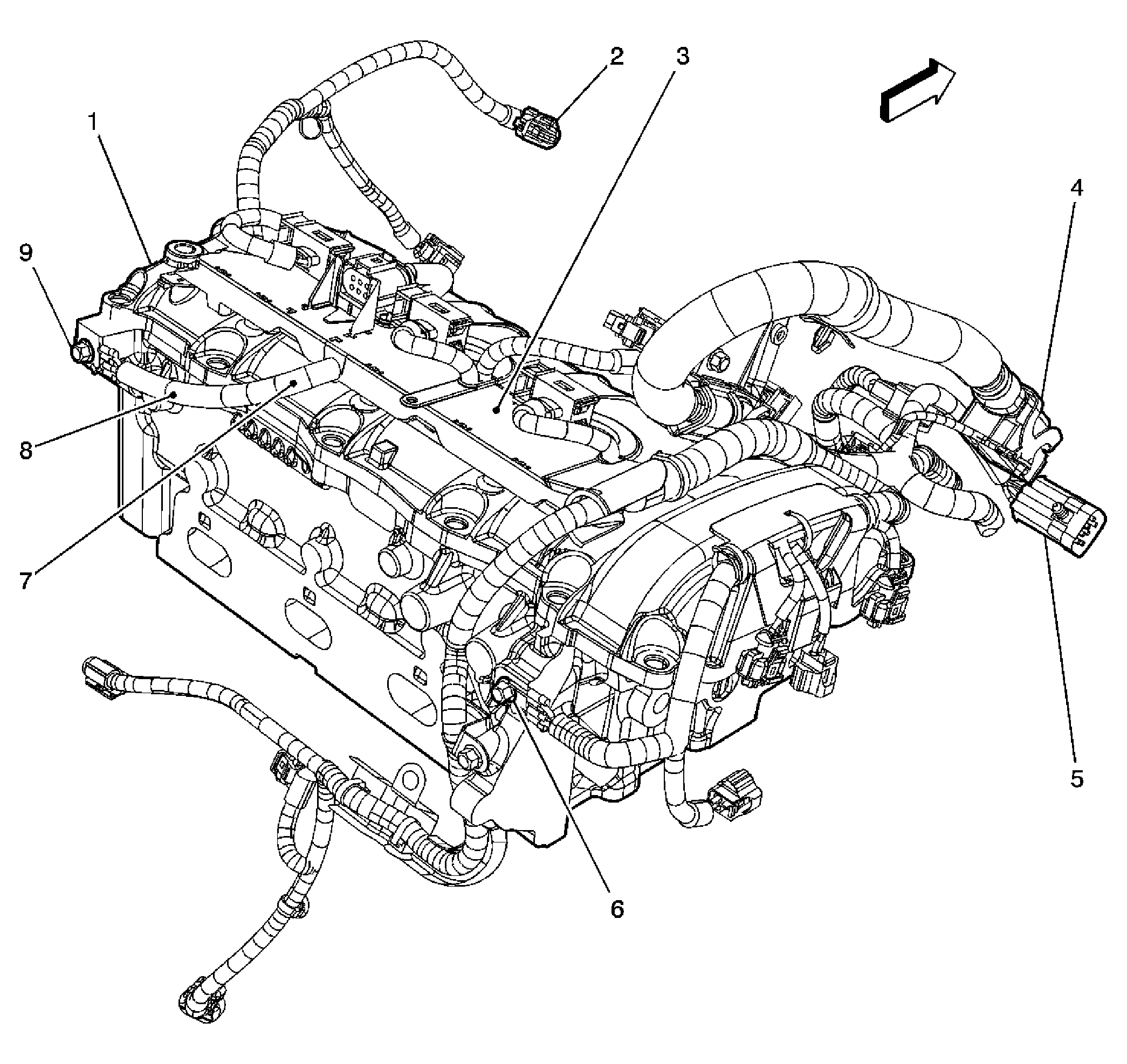

Fig 10: Power and Grounding Components (Rear Cylinder Head - LY7)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 10

Callout	Component Name
1	Cylinder Block
2	Throttle Actuator Control (TAC) Module Connector
3	S108
4	Engine Control Module (ECM) C1 Connector
5	C107
6	G115
7	S131
8	S130
9	G130

Fig 11: Power and Grounding Components (RF of Engine Compartment)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 11

Callout	Component Name
1	RF Strut Tower
2	Fuse Block - Underhood
3	Front Radiator Core Support
4	Front Radiator Core Support
5	Battery

Fig 12: Power and Grounding Components (Behind Instrument Panel)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 12

Callout	Component Name
1	I/P Compartment Lamp
2	HVAC Control Module
3	Radio
4	Air Temperature Sensor - Inside
5	Steering Wheel
6	Instrument Panel Cluster (IPC)
7	Body Control Module (BCM)
8	Steering Angle Sensor
9	Vehicle Communication Interface Module (VCIM)
10	Cigar Lighter
11	Fuse Block - I/P

Fig 13: Power and Grounding Components (Below I/P Carrier)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 13

Callout	Component Name
1	G202
2	G200
3	Data Link Connector
4	Steering Column

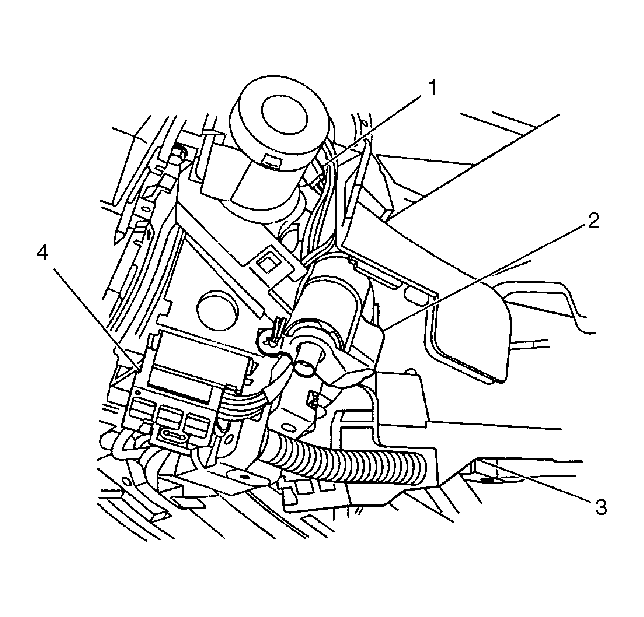

Fig 14: Power and Grounding Components (Ignition Switch)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 14

Callout	Component Name
1	Ignition Key Alarm Switch
2	Ignition Lock Cylinder Control Actuator
3	Steering Column
4	Ignition Switch

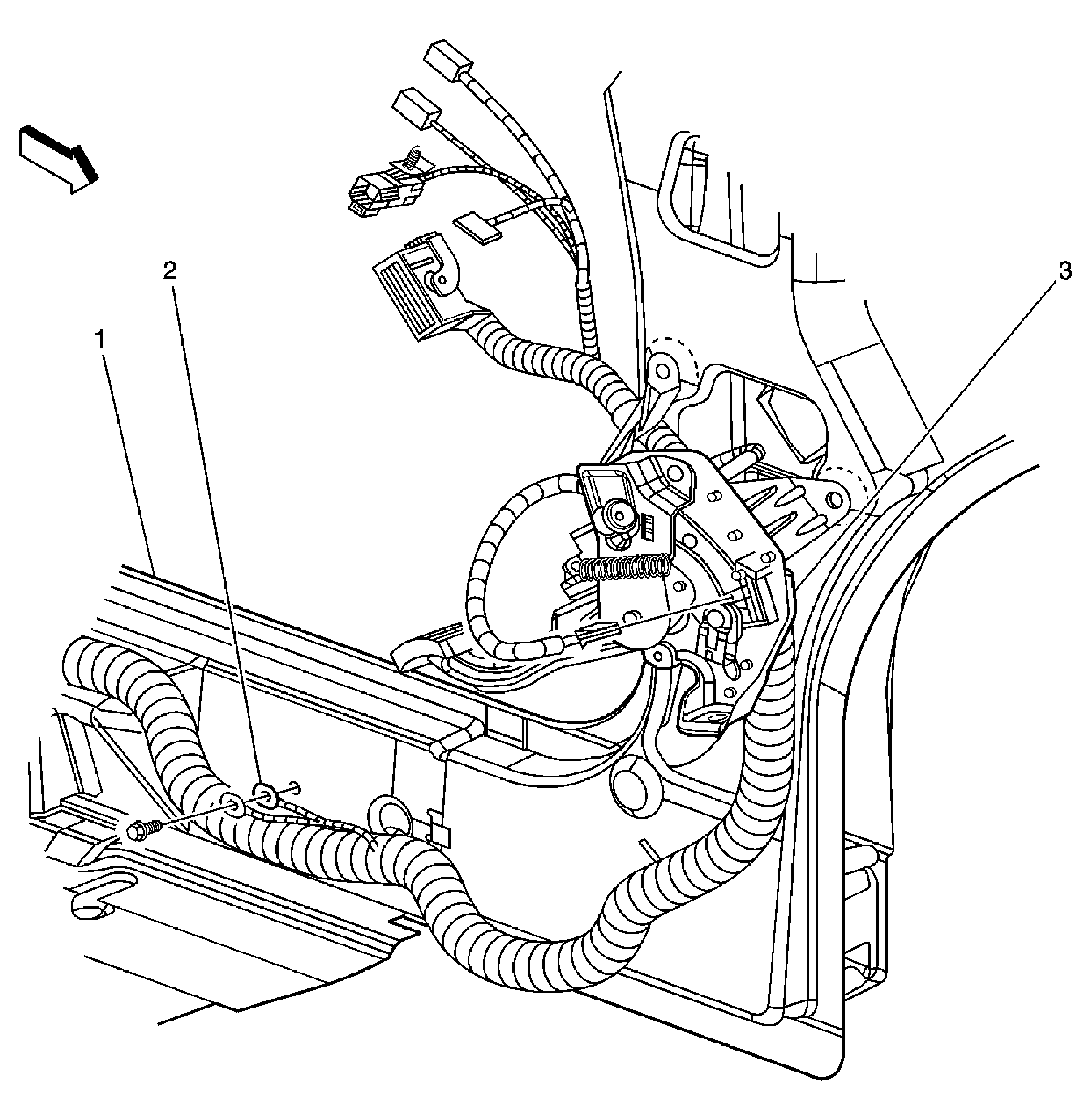

Fig 15: Power and Grounding Components (G301)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 15

Callout	Component Name
1	Floor Panel
2	G301
3	Park Brake Assembly

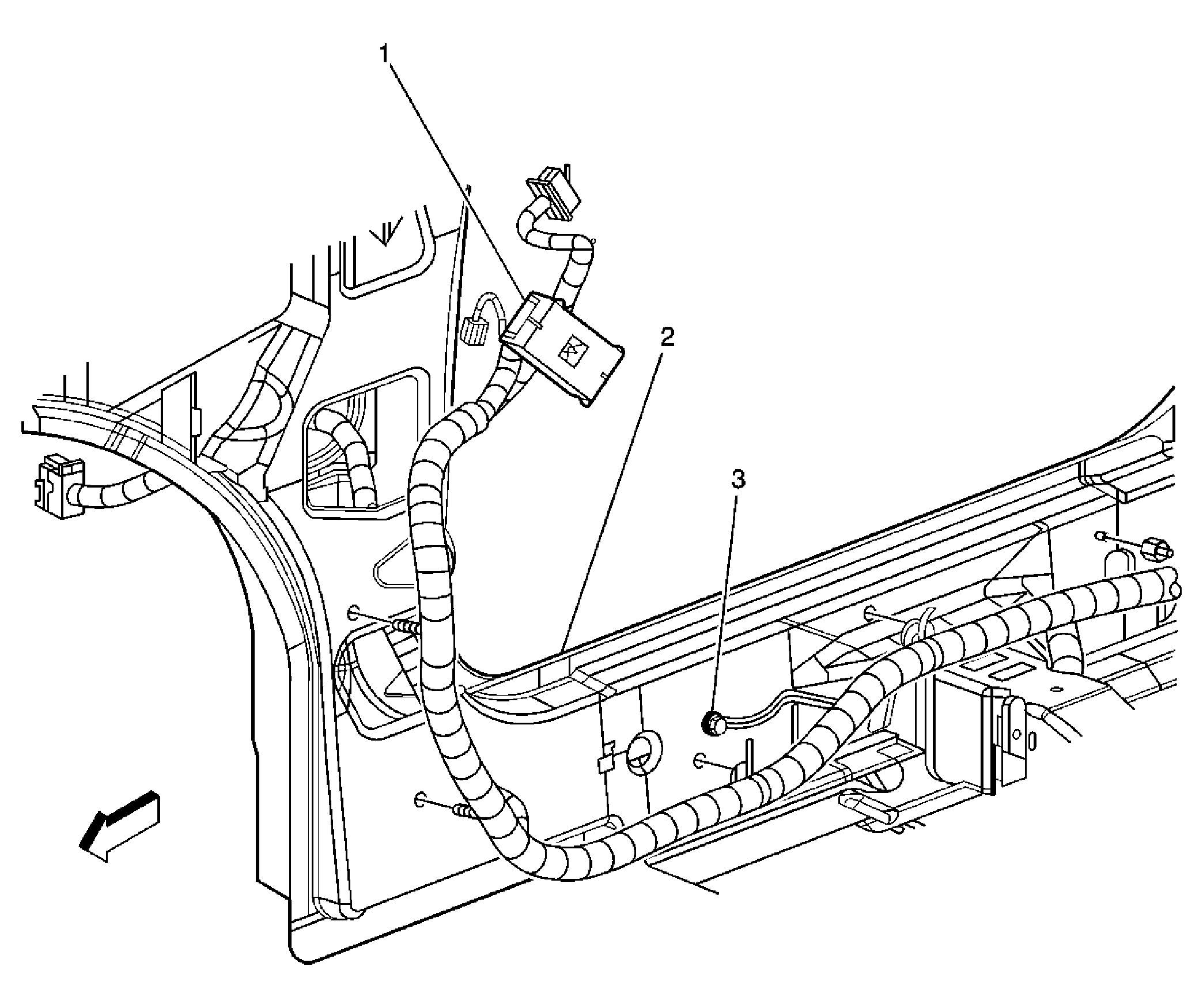

Fig 16: Power and Grounding Components (G302)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 16

Callout	Component Name
1	Fuse Block - I/P Connector
2	Floor Panel
3	G302
