Brake Pressure Modulator Valve (BPMV) Bracket Replacement

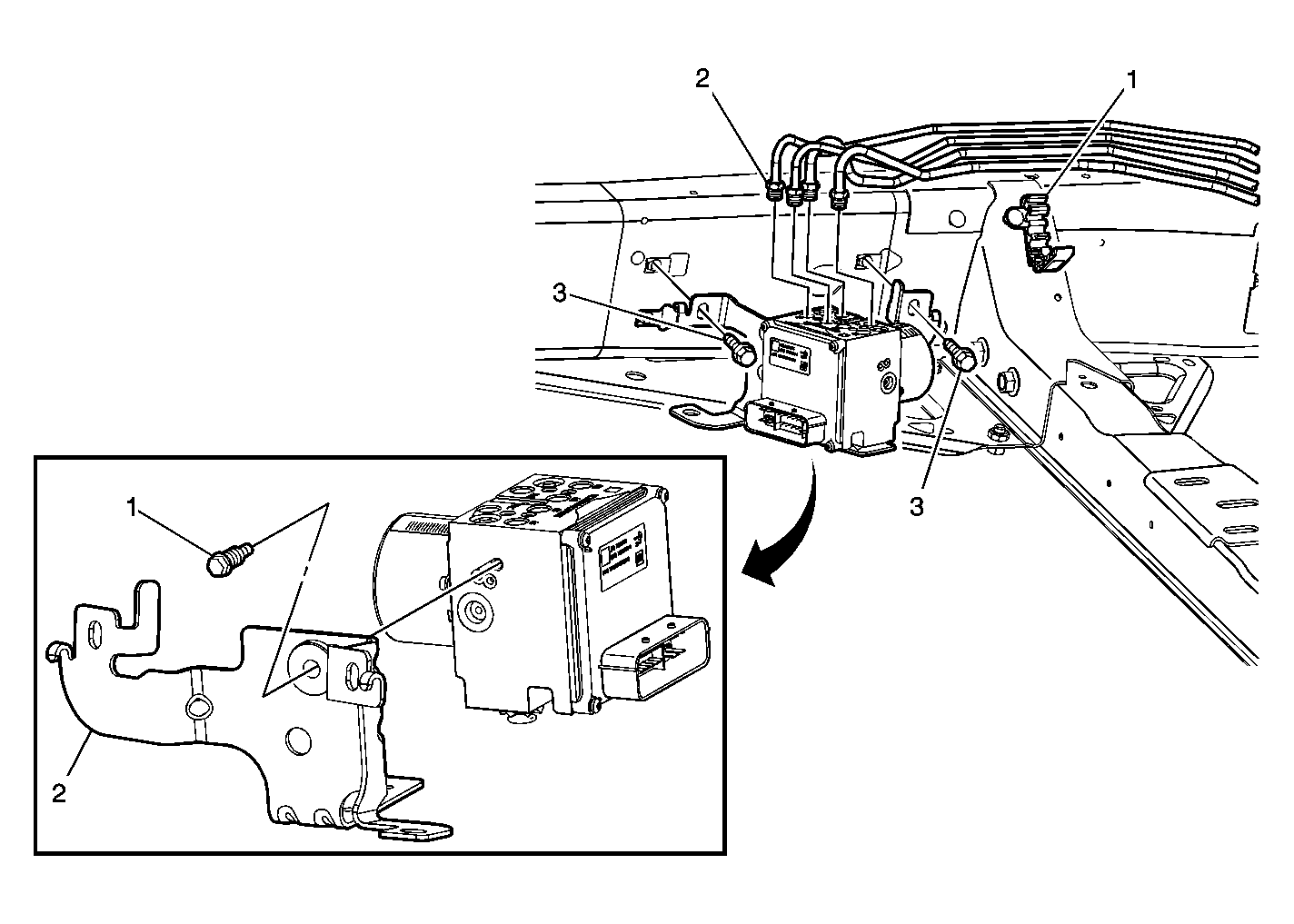

Fig 1: Brake Pressure Modulator Valve (BPMV) Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Notice . CAUTION: Refer to Brake Fluid Irritant Caution . NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Clip Tip: Before working on the brake pipes, release the locking tab on the retaining clip.
2	Fittings (Qty: 4) Tip: Before remove removing the brake pipes from the ABS module, remove all dirt and debris from the ABS module. Cap or plug the brake pipes to prevent contamination of the brake system and fluid leaks. Bleed the brake system. Refer to ABS Automated Bleed Procedure Tightening Specification: Tighten to 25 N.m (18 lb ft).
3	Bolt (Qty: 2) Tightening Specification: Tighten to 20 N.m (15 lb ft).
4	Bolt Tightening Specification: Tighten to 11 N.m (97 lb in).
5	Bracket
