Home >> Buick >> 2006 >> LaCrosse CX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Interlock System >> Schematic and Routing Diagrams >> Automatic Transmission Shift Lock Control Schematics

Automatic Transmission Shift Lock Control Schematics

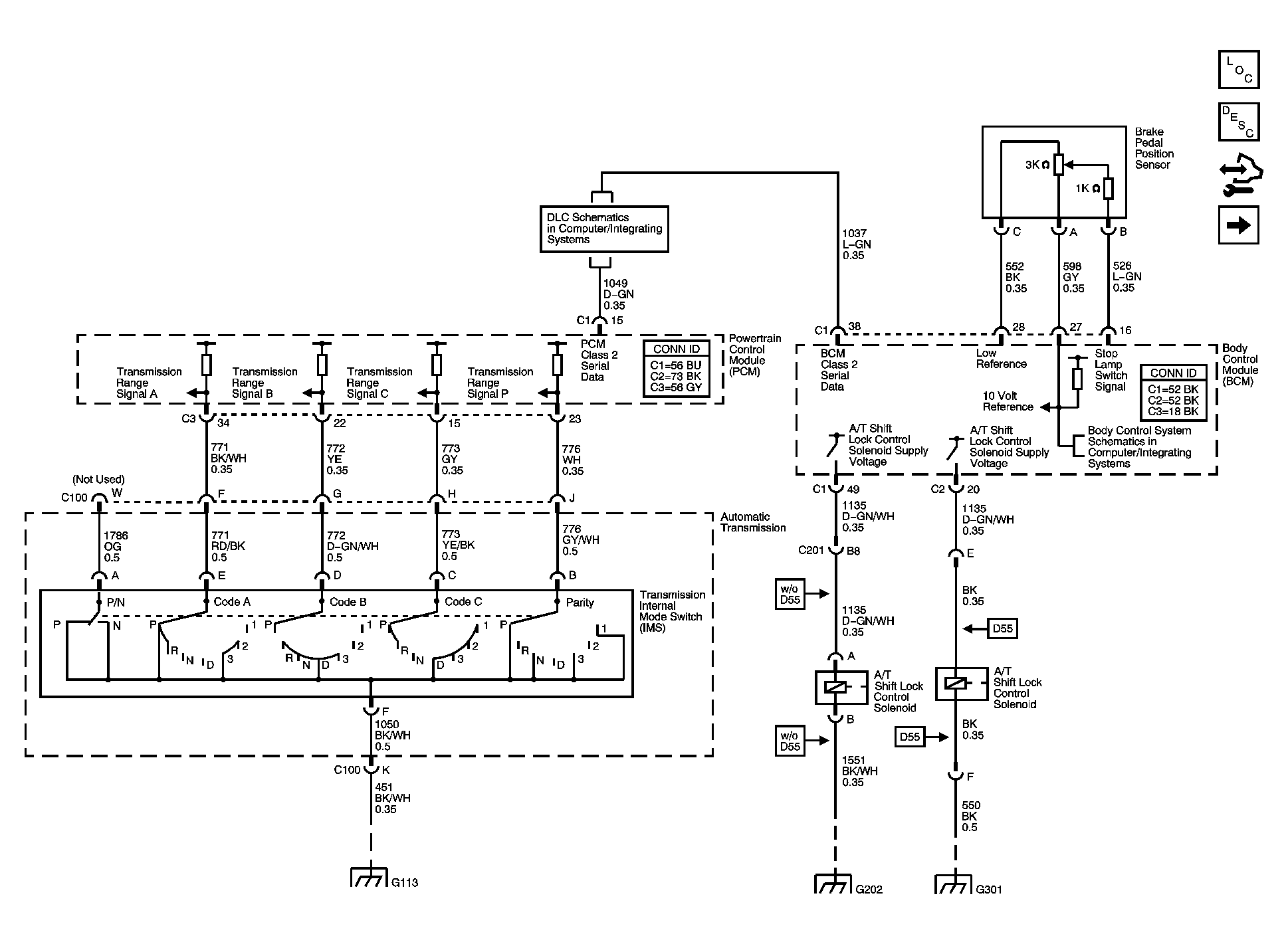

Fig 1: Shift Lock Control Schematic - L26

GM1645646

Courtesy of GENERAL MOTORS CORP.

Fig 2: Shift Lock Control Schematic - LY7

GM1645646

Courtesy of GENERAL MOTORS CORP.
