Fuse Block - I/P - Top View
Fuse Block - I/P - Top View

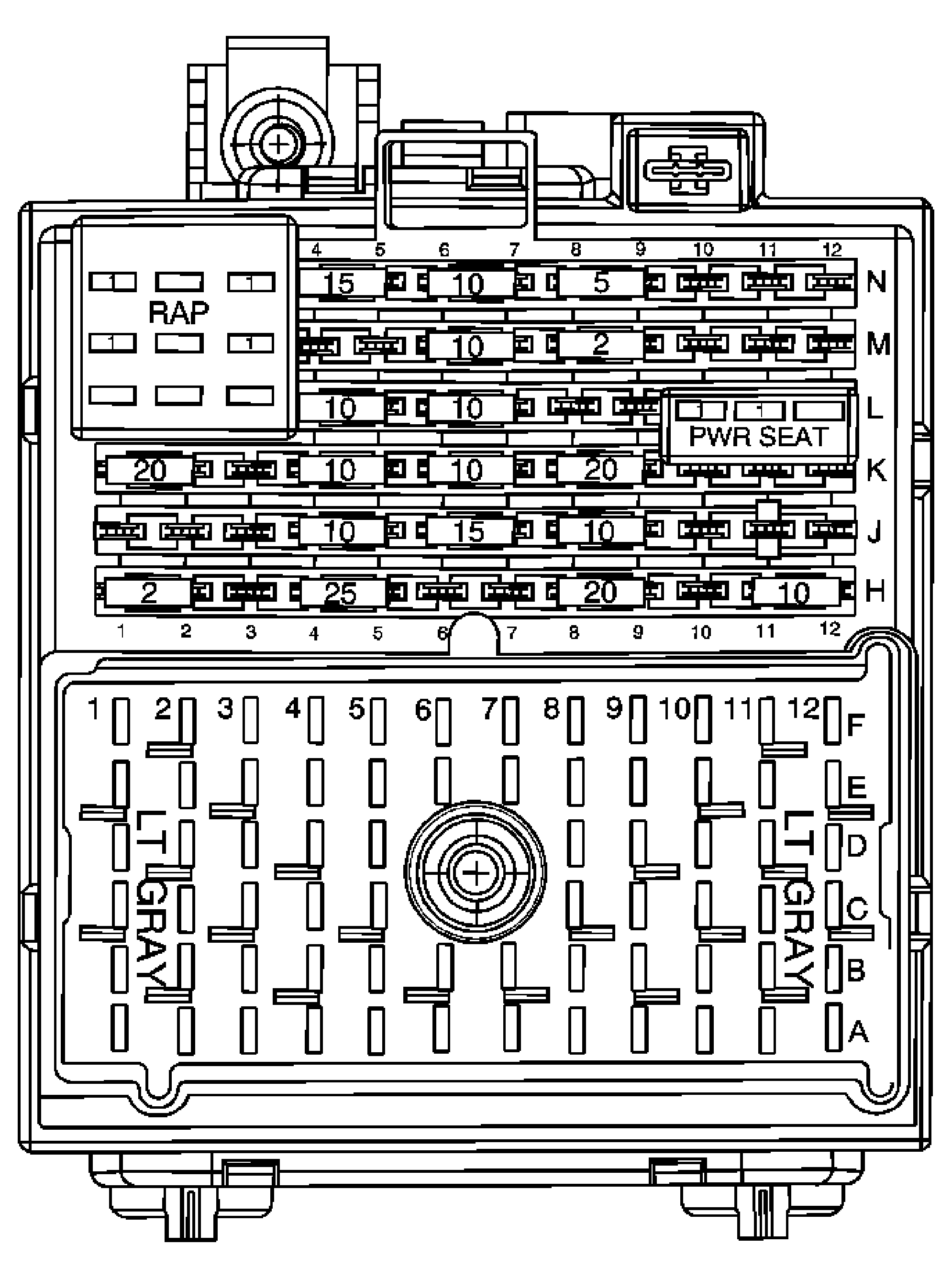

Fig 1: Top View Of I/P Fuse Block
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
