Automatic Transmission Shift Lock Control Schematics

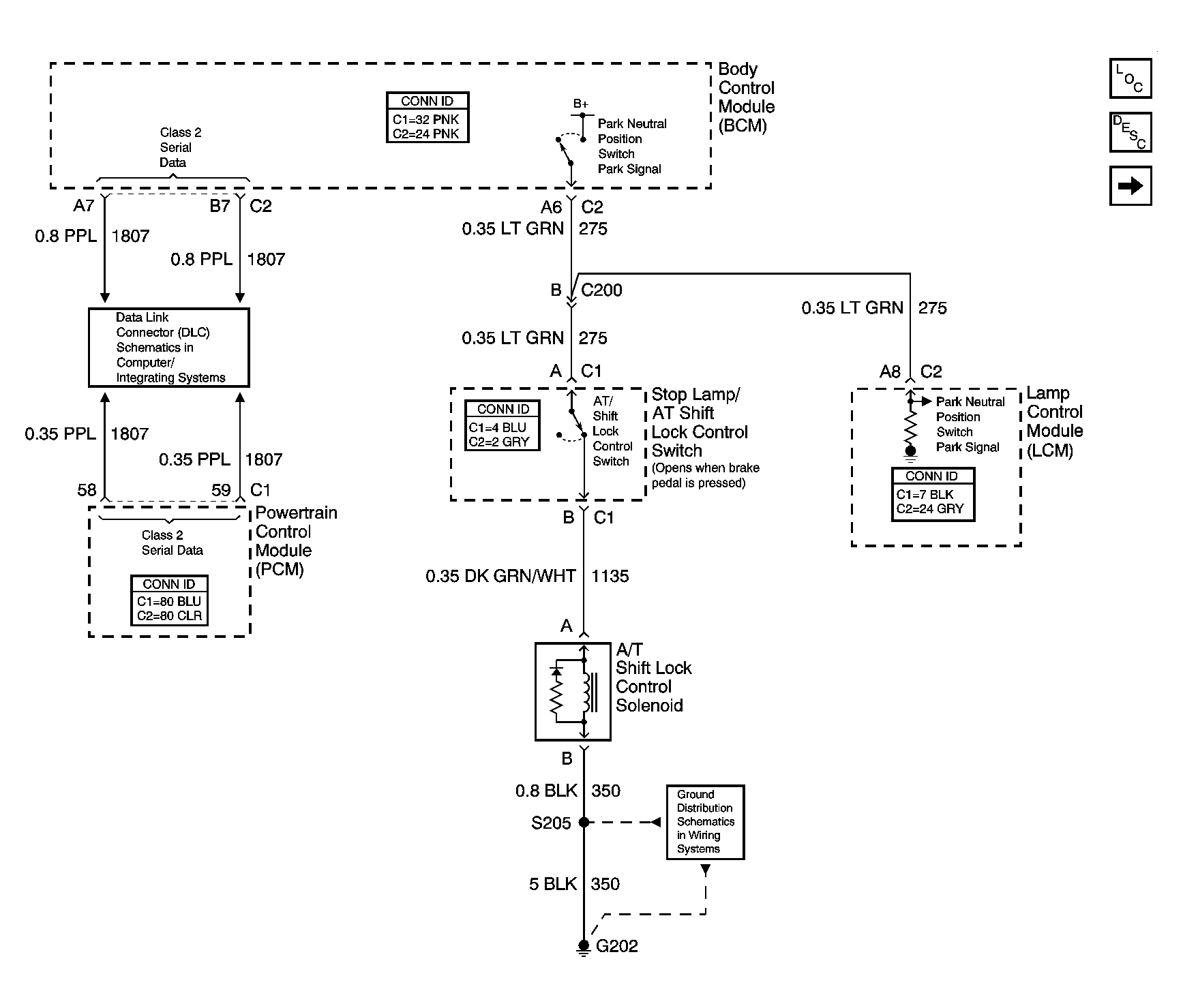

Fig 1: A/T Shift Lock Control Solenoid Schematics

GM1479890

Courtesy of GENERAL MOTORS CORP.

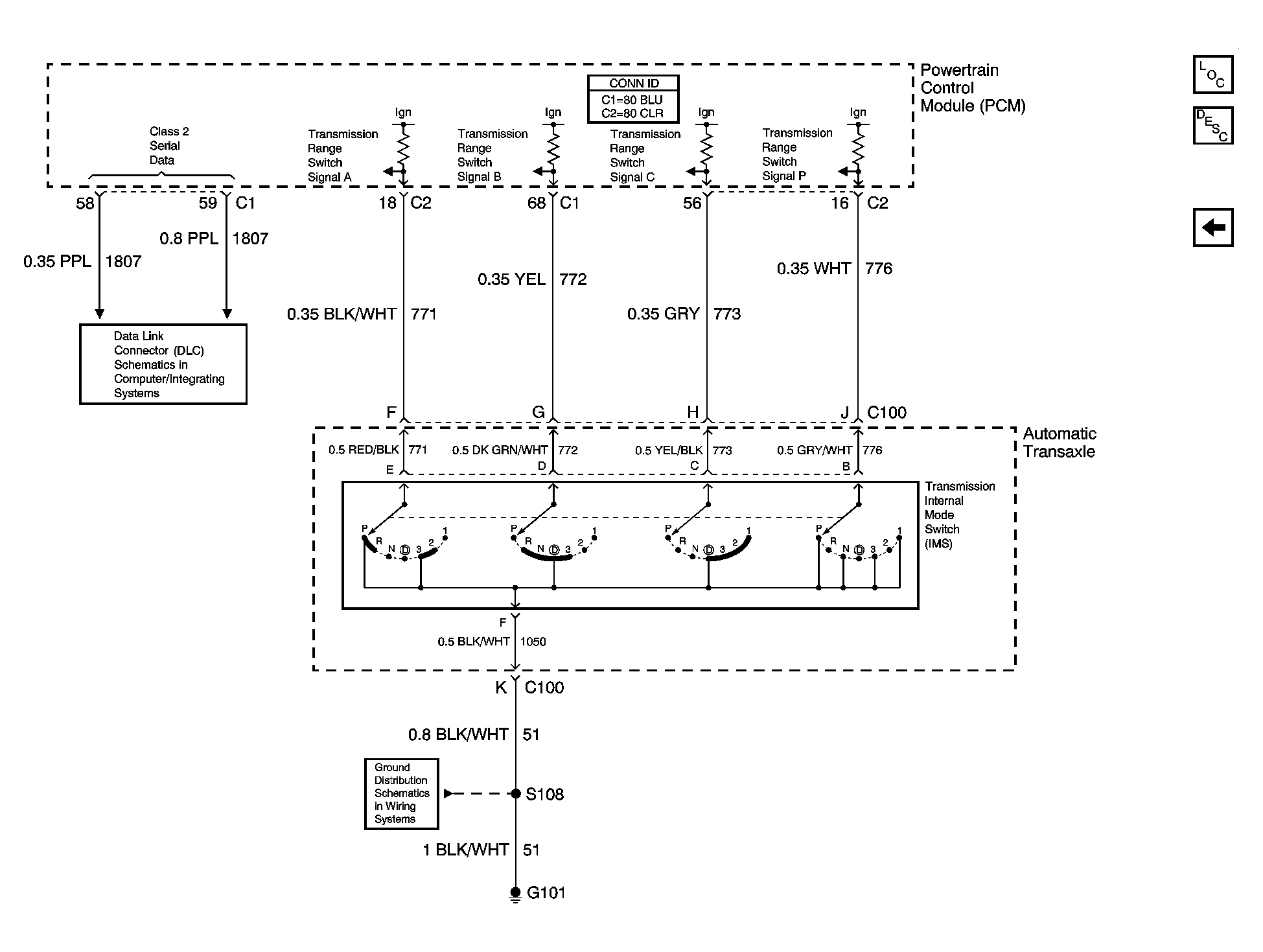

Fig 2: IMS Schematics

GM1441047

Courtesy of GENERAL MOTORS CORP.
