Installation Procedure

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

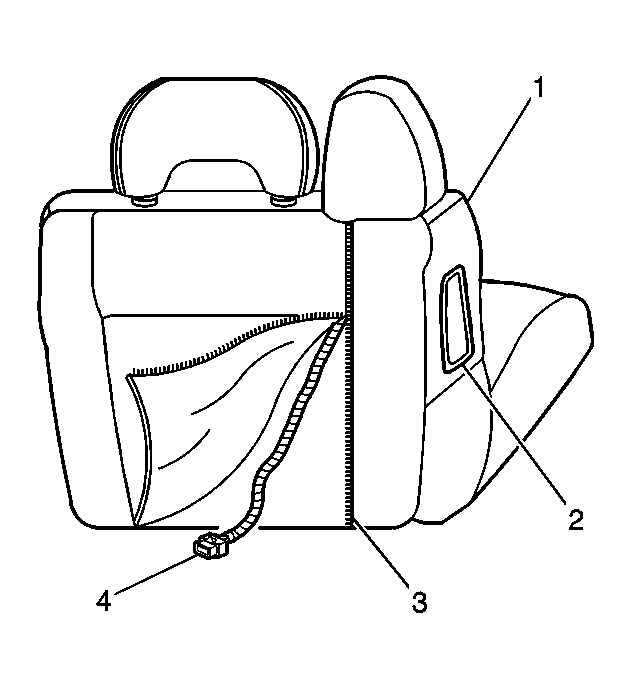

    Fig 1: View of Inflatable Restraint Side Impact Inflator Module, Seat, Seat Back Cover, and Wiring Harness
    GM498670Courtesy of GENERAL MOTORS CORP.
  1. Install the new side impact inflator module wiring harness (4) to seat (1).
  2. Install the retaining clips that secure the side inflator module wiring harness (4) to seat (1).
  3. Install the inflatable restraint side impact inflator module (2) to seat (1). Refer to Inflatable Restraint Side Impact Module Replacement - Front  for installation.
  4. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 7  or SIR Disabling and Enabling Zone 9 .
