SIR Zone Identification Views
WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

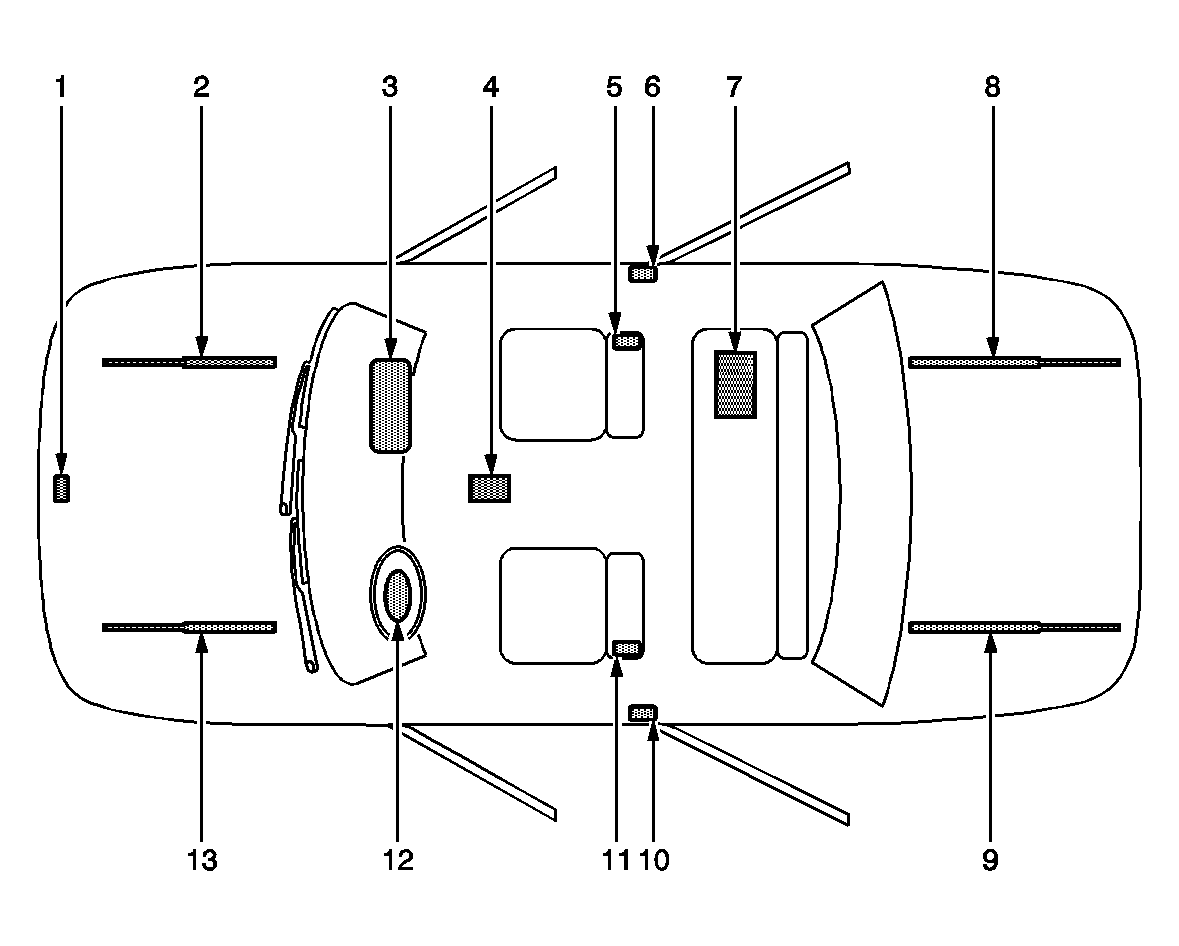

The SIR Zone Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling Zones for a given service procedure, refer to SIR Disabling and Enabling Zones .
| Callout | Component Name |
|---|---|
| 1 | Frontal Sensor - Located on the front of the vehicle in the engine compartment |
| 2 | Front Hood Assist Rod - A gas shock located under the front hood on the passenger side |
| 3 | I/P Air Bag - Located at the top right under the instrument panel |
| 4 | Sensing and Diagnostic Module (SDM) - Located underneath the vehicle carpet under the center console |
| 5 | RF Side Impact Air Bag - Located on the seat back of passenger seat |
| 6 | Side Impact Sensor (SIS) - Located under the center pillar trim near the bottom |
| 7 | Vehicle Battery - Located under rear seat on the right side |
| 8 | Rear Compartment Lid Assist Rod - A gas shock is located under the rear trunk lid on the passenger side |
| 9 | Rear Compartment Lid Assist Rod - A gas shock is located under the rear trunk lid on the driver side |
| 10 | Side Impact Sensor (SIS) - Located under the center pillar trim near the bottom |
| 11 | LF Side Impact Air Bag - Located on the seat back of driver seat |
| 12 | Steering Wheel Air Bag-Located on the steering wheel |
| 13 | Front Hood Assist Rod-A gas shock located under the front hood on the driver side |
