SIR Component Views
WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

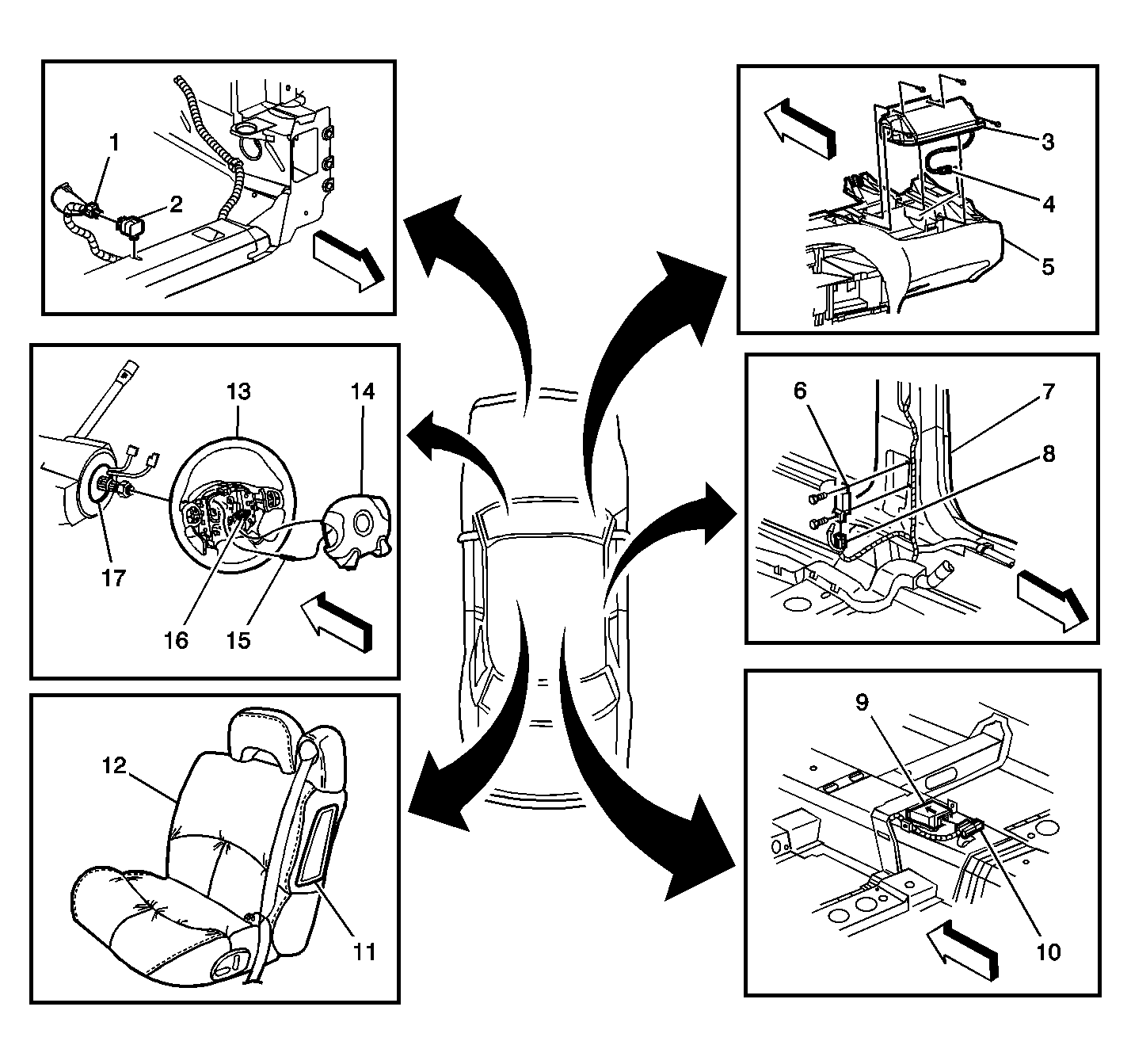

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Front End Sensor Connector |
| 2 | Inflatable Restraint Front End Sensor |
| 3 | Inflatable Restraint I/P Inflator Module |
| 4 | Inflatable Restraint I/P Inflator Connector and Wiring Harness |
| 5 | Instrument Panel |
| 6 | Driver Inflatable Restraint Side Impact Sensor (SIS) Passenger Similar (AJ7) |
| 7 | Driver Center Pillar (Passenger Similar) |
| 8 | Driver Inflatable Restraint Side Impact Sensor (SIS) Connector and Wiring Harness (Passenger Similar) |
| 9 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 10 | Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector and Wiring Harness |
| 11 | Driver Inflatable Restraint Side Impact Module (Passenger Similar) (AJ7) |
| 12 | Drivers Seat (Passenger Similar) |
| 13 | Steering Wheel |
| 14 | Inflatable Restraint Steering Wheel Inflator Module |
| 15 | Horn Switch Contact |
| 16 | Inflatable Restraint Steering Wheel Inflator Module Connector |
| 17 | Inflatable Restraint Steering Wheel Inflator Module Coil |
