Installation Procedure

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

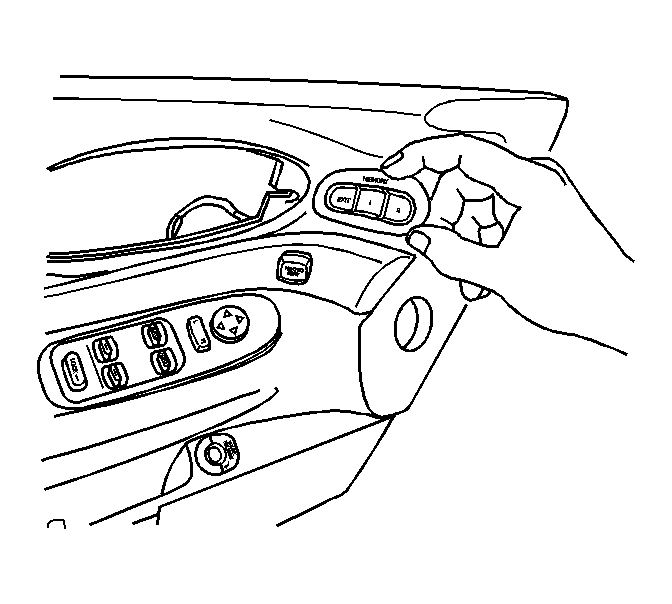

    Fig 1: View of Memory Seat Switch & Door Trim Panel
    GM779089Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the memory seat switch.
  2. Align the memory switch to the opening in the door trim panel.
  3. Snap the memory seat switch into the door trim panel.
