Installation Procedure

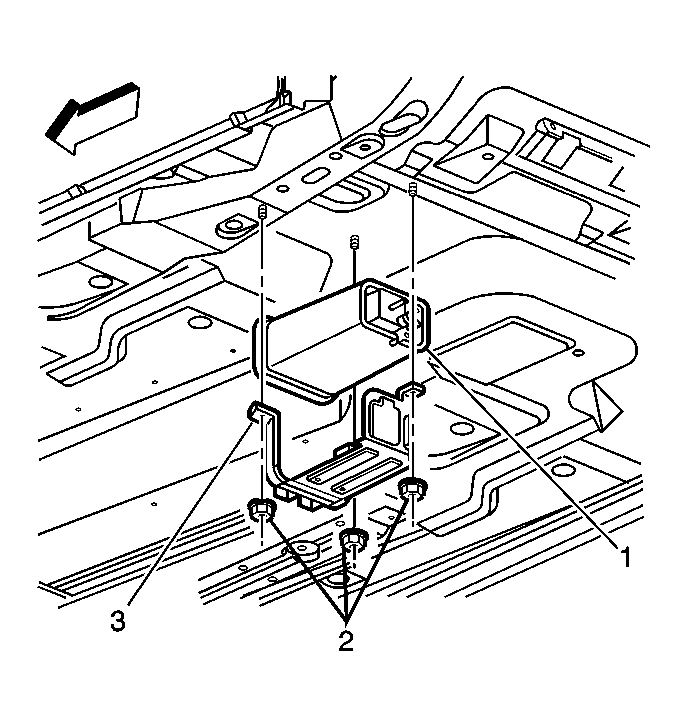

Fig 1: Removing/Installing Evaporative Emission (EVAP) Canister

Courtesy of GENERAL MOTORS CORP.

Install the EVAP canister (1) to the EVAP canister bracket (3) and position the canister on the underbody.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the EVAP canister bracket retaining nuts (2).
Tighten: Tighten the nuts to 6 N.m (53 lb in).

Fig 2: View Of EVAP Pipe To Canister

Courtesy of GENERAL MOTORS CORP.

Connect the EVAP purge pipe (3), vapor pipe (2) and vent hose/pipe (1) to the EVAP canister.
Lower the vehicle.
