Installation Procedure

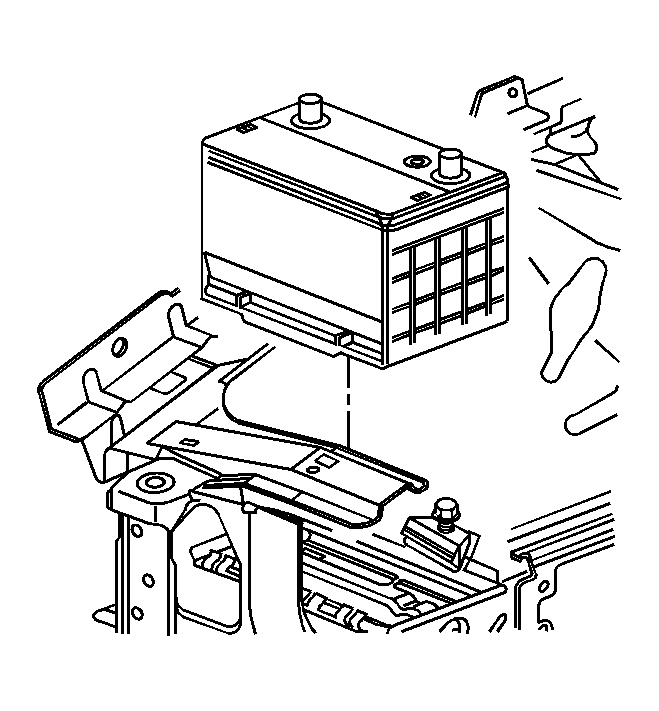

    Fig 1: Removing/Installing Battery
    GM800515Courtesy of GENERAL MOTORS CORP.
  1. Install the battery into the vehicle.

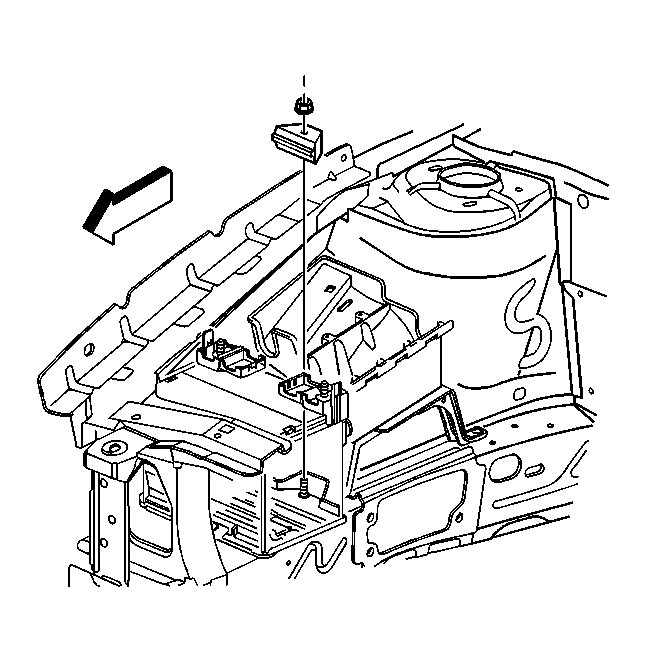

    2. Fig 2: Removing/Installing Battery Retainer Nut & Battery Retainer
    GM723076Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the battery retainer and nut.

    Tighten:  Tighten the battery retainer nut to 17 N.m (13 lb ft).

    3. Fig 3: Removing/Installing Negative Battery Cable At Negative Battery Post
    GM800514Courtesy of GENERAL MOTORS CORP.
  3. Install the nut securing the positive battery cable to the positive battery post.

    Tighten:  Tighten the battery cable nut to 6 N.m (53 lb in).

  4. Connect the battery negative cable to the negative battery post. Refer to Battery Negative Cable Disconnect/Connect Procedure (Top Post) .
