Engine Electrical Component Views

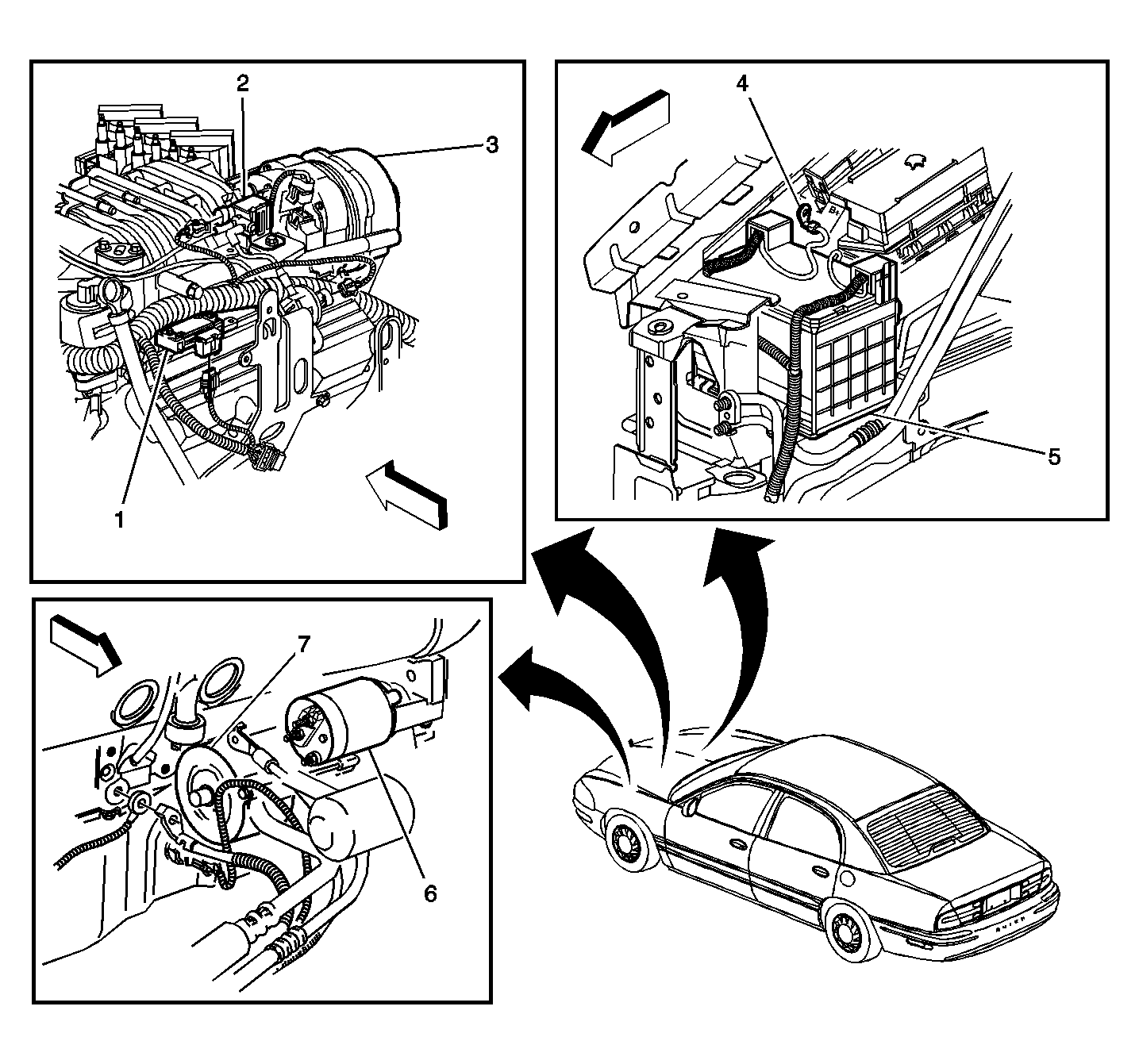

Fig 1: Identifying Engine Electrical Subsystem Components
GM789760Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Manifold Absolute Pressure (MAP) Sensor
2 Evaporative Emission (EVAP) Canister Purge Solenoid
3 Generator
4 G103
5 Battery
6 Starter Solenoid
7 Starter Motor
