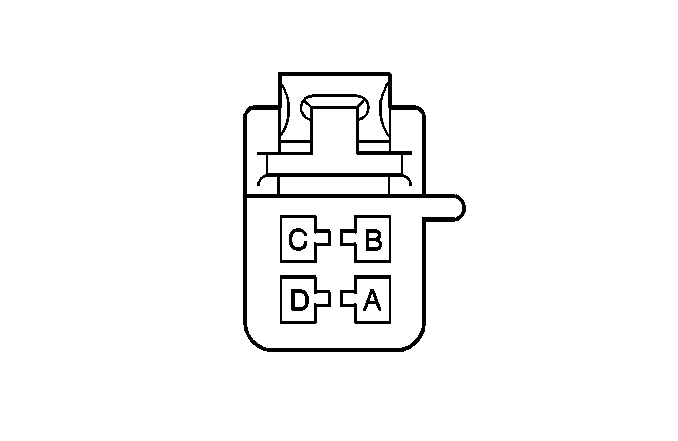

Rear Compartment Lid Release Switch Connector End View
Rear Compartment Lid Release Switch Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12064760
- 4-Way F Metri-Pack 150 Series (BLK)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
BLK |
450 |
Ground |
| B |
BLK |
1576 |
Trunk Release Switch Signal |
| C-D |
- |
- |
Not Used |
