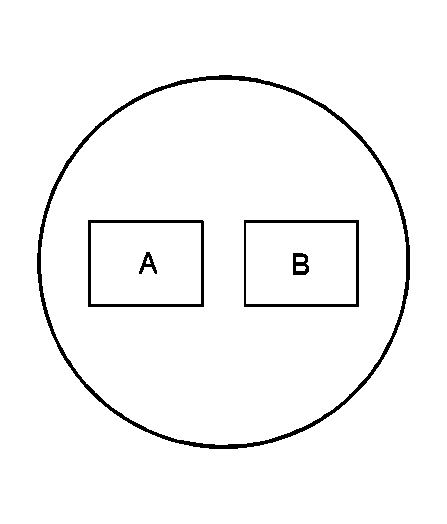

License Lamp Connector End View
License Lamp Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12077765
- 2-Way Type W-2 (CRM)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
BRN/WHT |
309 |
Right Park Lamp Supply Voltage |
| B |
BLK |
650 |
Ground |
