Door Control Module Schematics

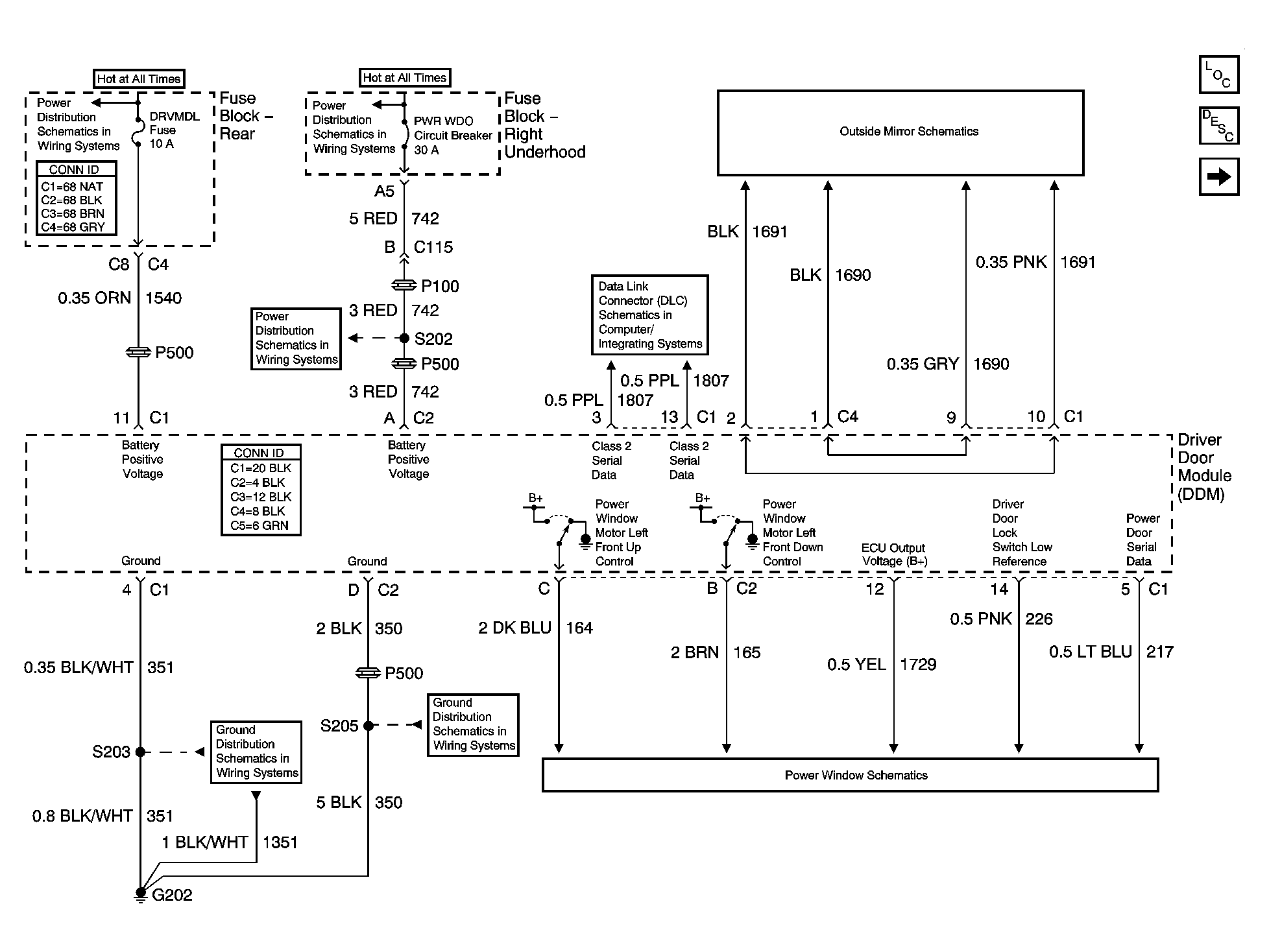

Fig 1: Driver Door Module Schematics
GM1441261Courtesy of GENERAL MOTORS CORP.

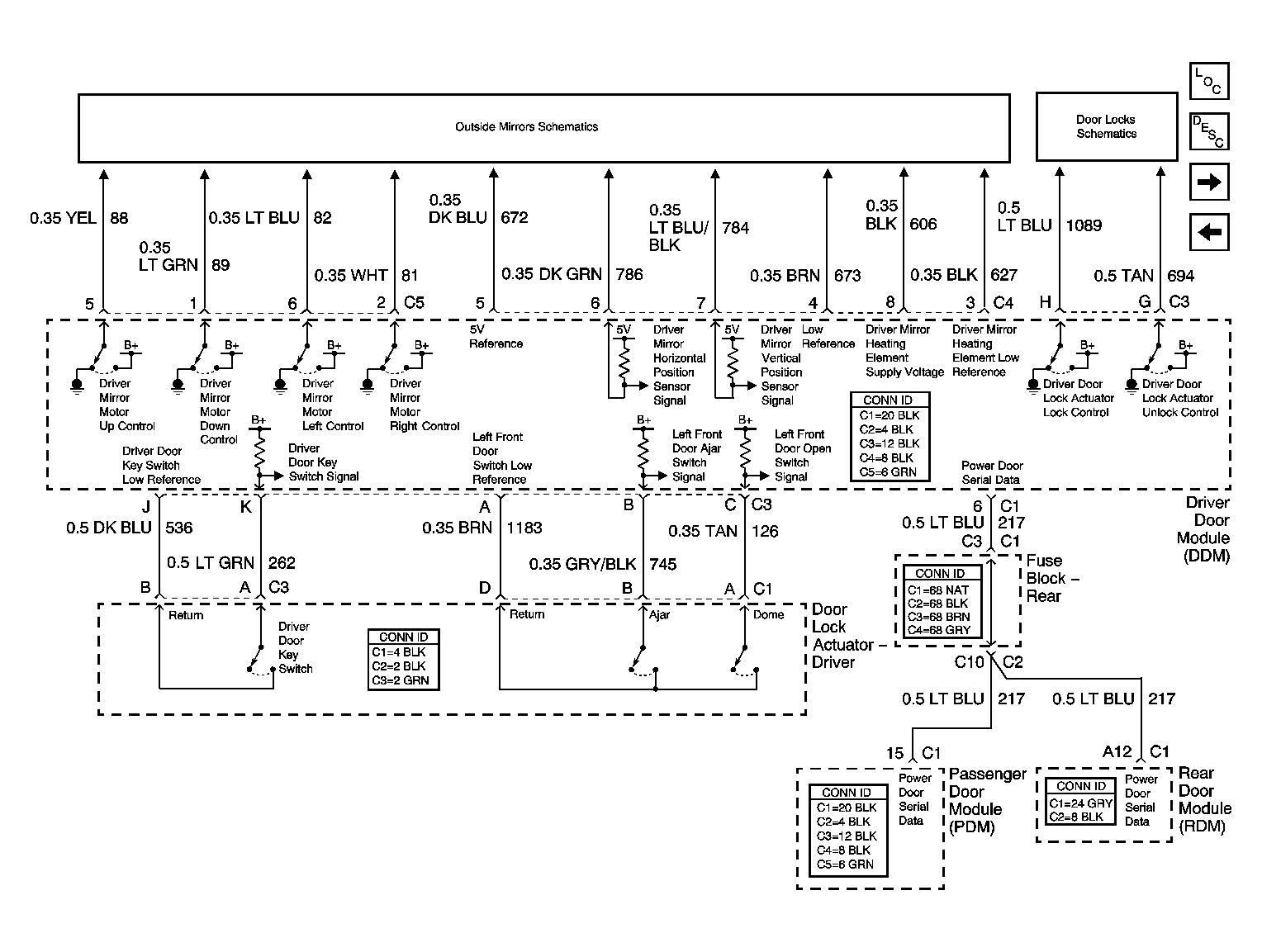

Fig 2: Driver Door Module Inputs and Outputs Schematic
GM660030Courtesy of GENERAL MOTORS CORP.

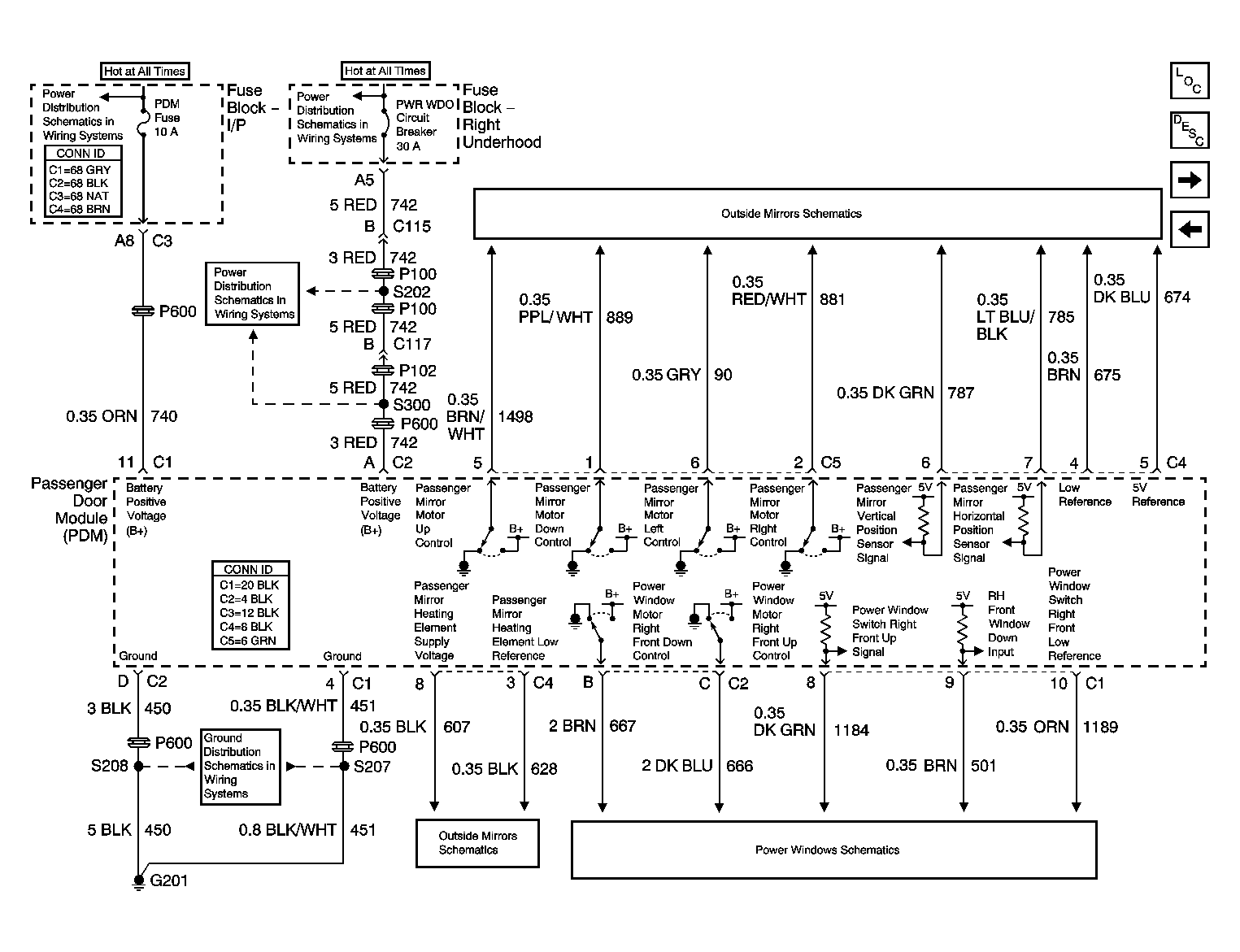

Fig 3: Passenger Door Module Schematic
GM660031Courtesy of GENERAL MOTORS CORP.
Fig 4: Passenger Door Module Inputs and Outputs Schematic
GM660032Courtesy of GENERAL MOTORS CORP.

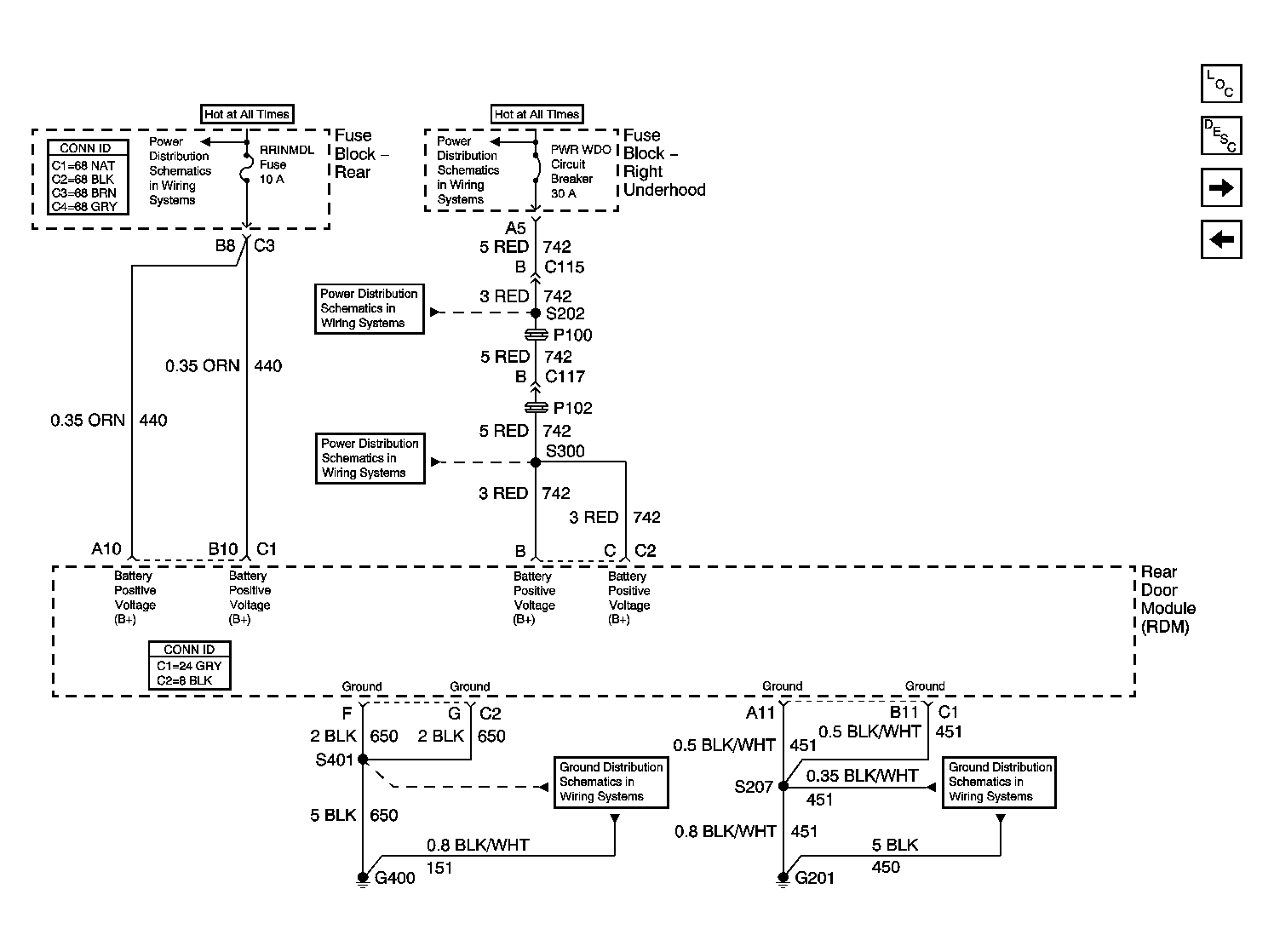

Fig 5: Rear Door Module Schematic
GM660033Courtesy of GENERAL MOTORS CORP.

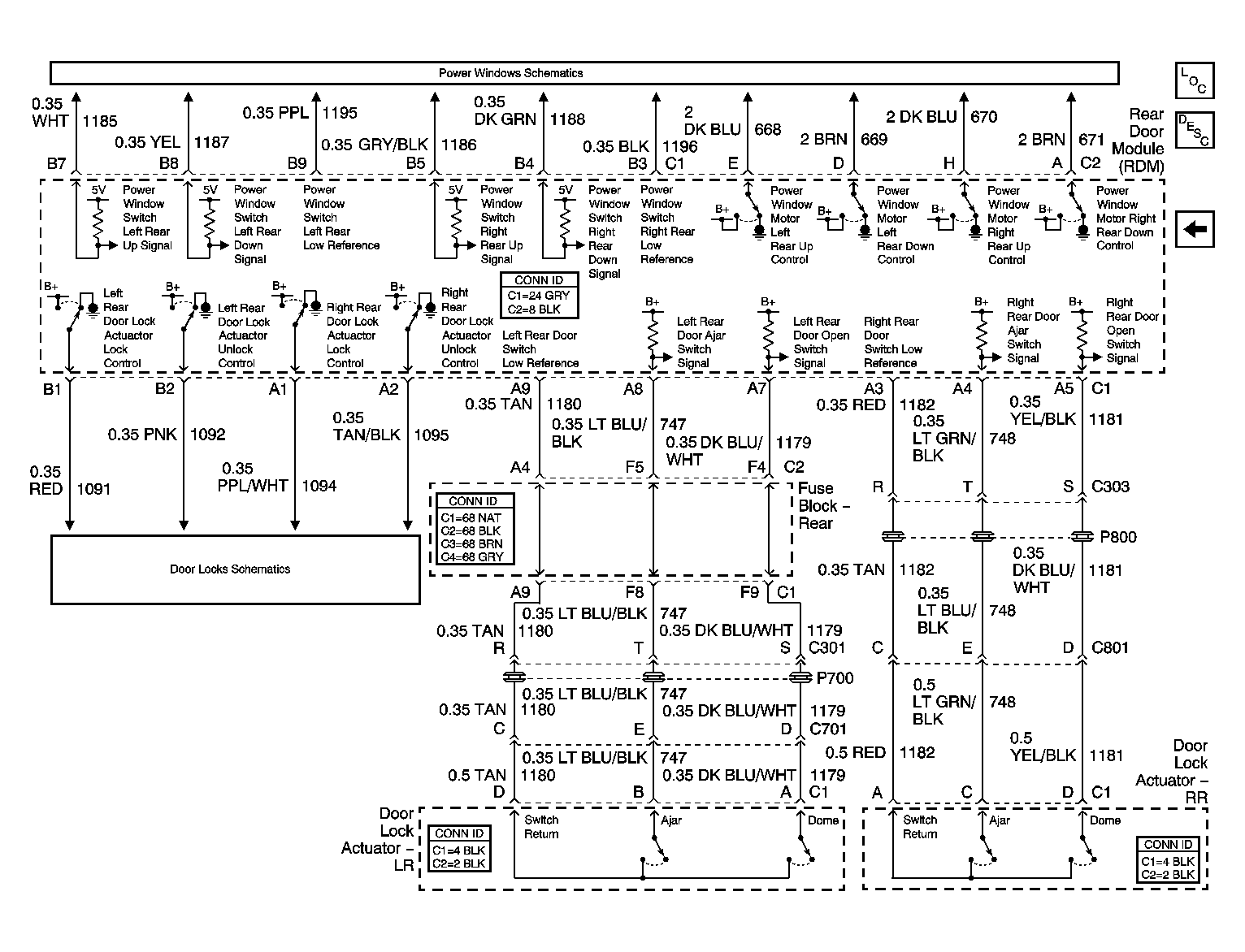

Fig 6: Rear Door Module Inputs and Outputs Schematic
GM660034Courtesy of GENERAL MOTORS CORP.
