Removal Procedure

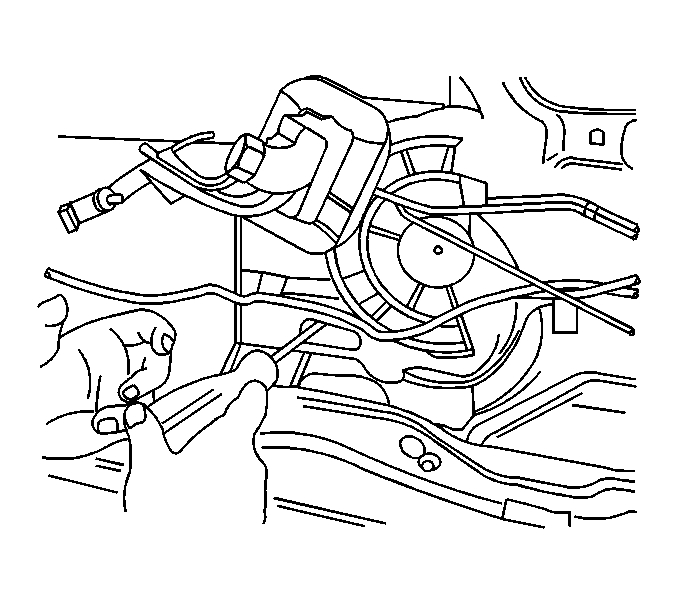

Fig 1: Removing Door Control Module & Adjacent Components

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Glass and Sheet Metal Handling Caution in Cautions and Notices.

CAUTION: Refer to Express Window Down Caution in Cautions and Notices.

Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
Remove the door control module.
Remove the window inner belt molding. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
Remove the window outer belt molding. Refer to Sealing Strip Replacement - Front Door Window Belt Outer .
Reconnect power to the window.
Lower the window regulator in order to access the window clamps through the access hole.

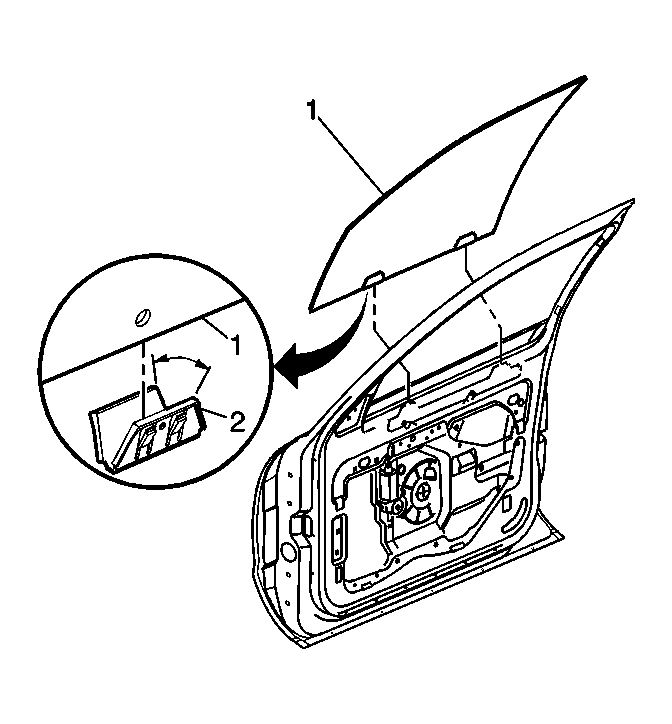

Fig 2: Removing/Installing Window From Regulator

Courtesy of GENERAL MOTORS CORP.

Depress the tabs on the window clamp (2) in order to release the window from the regulator.

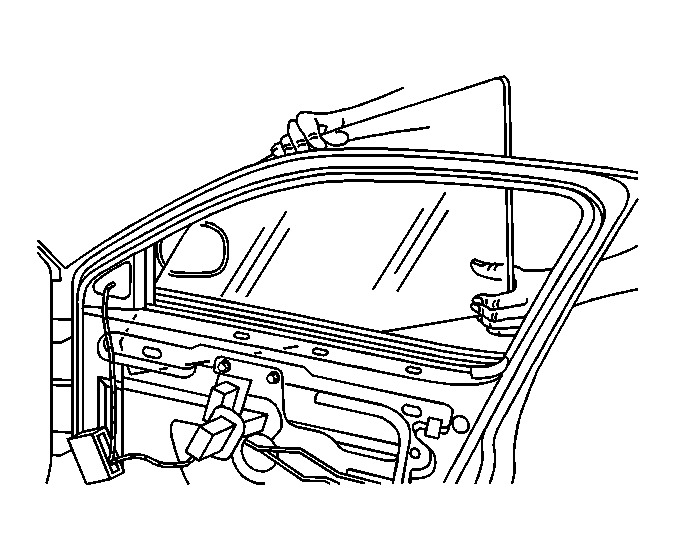

Fig 3: Removing/Installing Window Glass To/From Door

Courtesy of GENERAL MOTORS CORP.

Remove the window by tilting the window forward then pulling the window up and out of the door.
