Removal Procedure

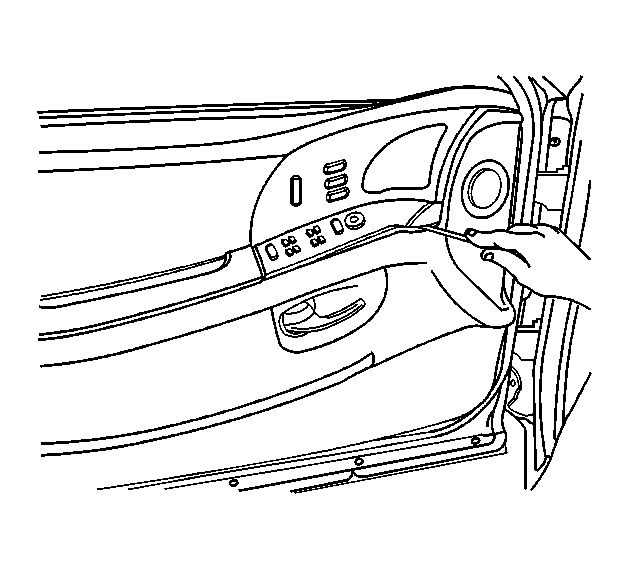

Fig 1: Prying Up On Switch Plate

Courtesy of GENERAL MOTORS CORP.

Insert a flat-bladed tool under the front edge of the switch plate.
Gently pry upwards in order to release the front edge of the switch plate from the door trim panel.
Slide the switch forward in order to release the rear retainer tabs.
Disconnect the electrical connectors.

Fig 2: Removing Switch Pack From Switch Plate

Courtesy of GENERAL MOTORS CORP.

Remove the switch pack (2) from the switch plate (1) by releasing the retainer tabs with a small flat-bladed tool.
