Body Control System Schematics

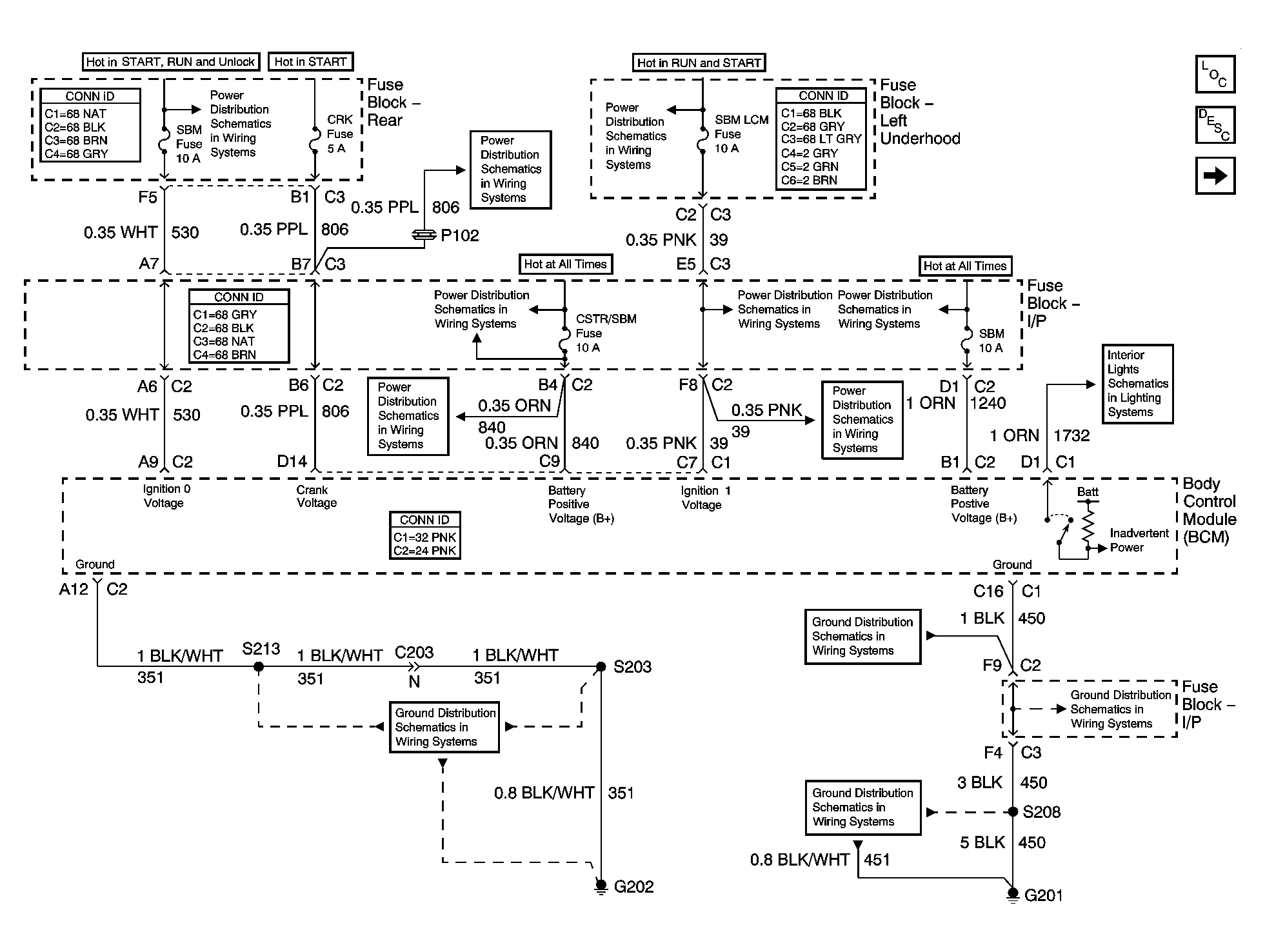

Fig 1: Power and Ground Schematics
GM1441052Courtesy of GENERAL MOTORS CORP.

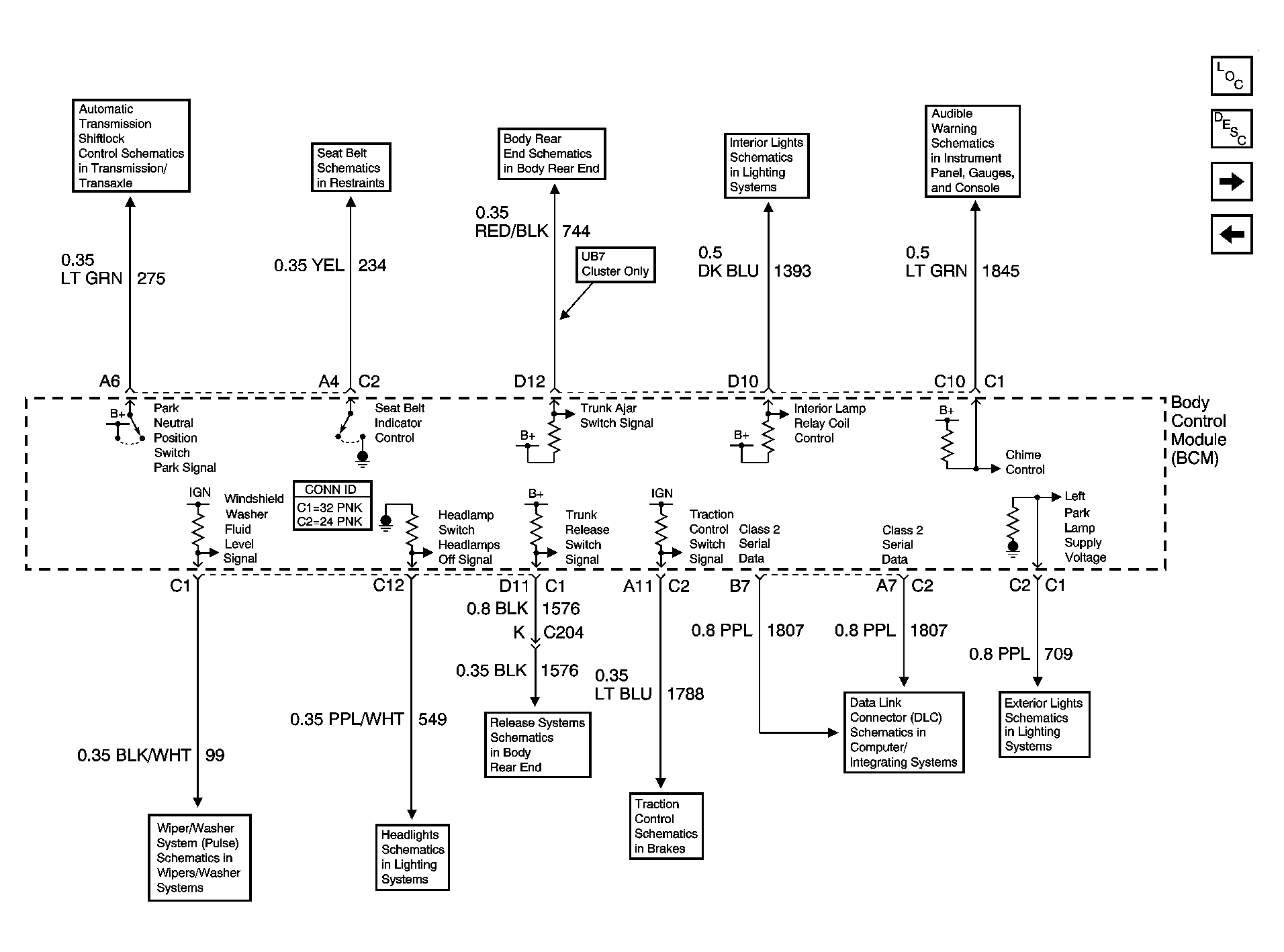

Fig 2: Inputs and Outputs Schematics - 1 of 2
GM1441065Courtesy of GENERAL MOTORS CORP.

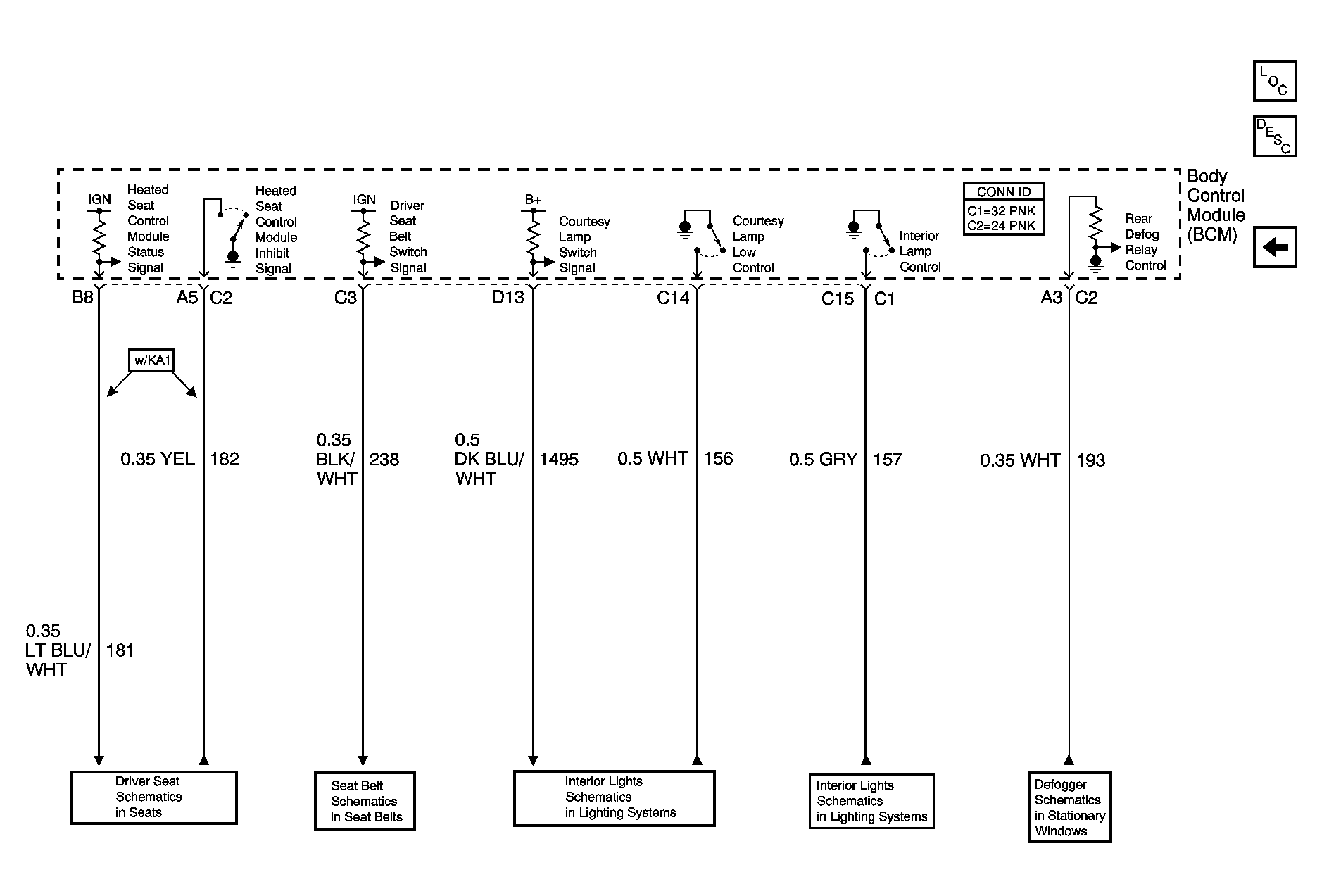

Fig 3: Inputs and Outputs Schematics - 2 of 2
GM1441121Courtesy of GENERAL MOTORS CORP.
