Installation Procedure
- Insert the rear of the module assembly through the roof opening. Index the module assembly on the raised guides on the track.

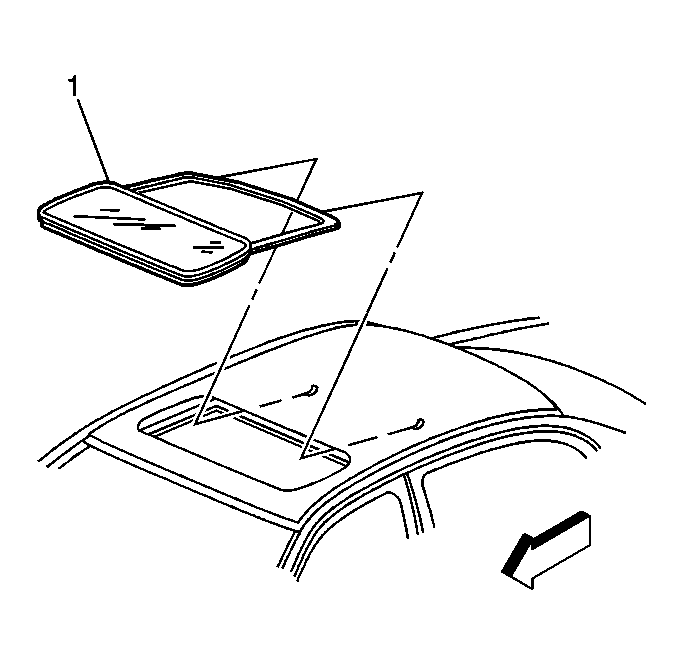

- Slide the module (1) into the sunroof opening. Do not damage the finish at the front of the opening.
As you slide the module assembly under the rear retaining clips, you will feel resistance during the last 6-9 cm (2-3 in) of travel.
- Verify that the module assembly (1) is under the clips. This will prevent noise during travel over road irregularities.
- Lower the window panel into the opening.

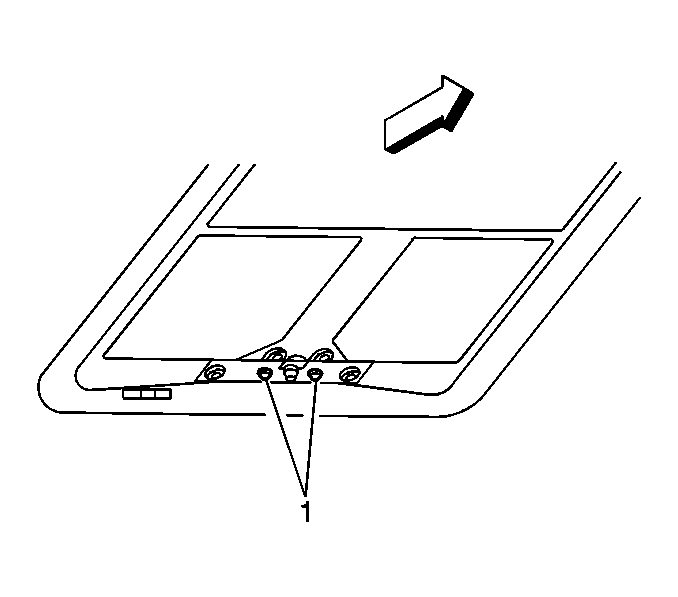

- Install the 2 screws (1) in the sunroof motor/actuator.
- Install the motor/actuator. Refer to Sunroof Motor/Actuator Replacement .
- Cycle the sunroof window fully to the rear.
- Cycle the window forward 3 mm (0.125 in) in order to remove the load from the bumpers.

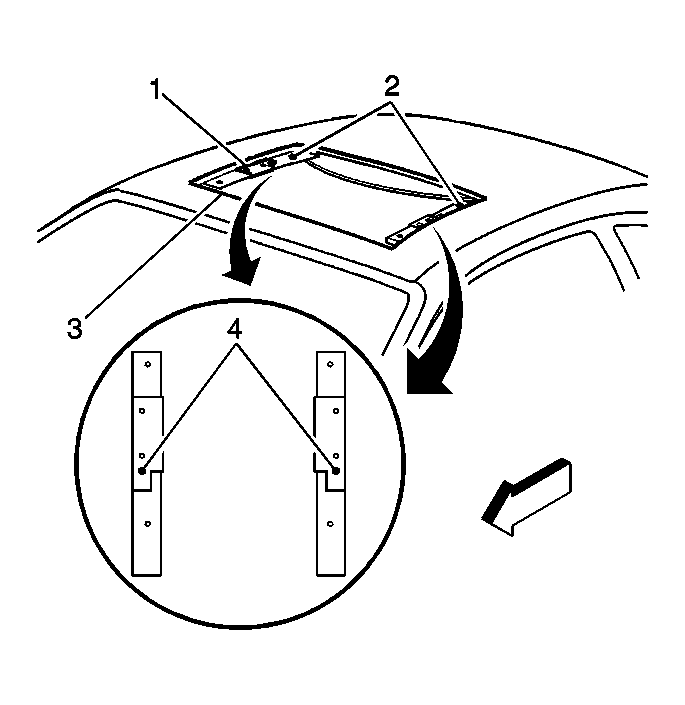

- Install the 2 rear screws (one per side) in the module assembly (3) in order to align the sunroof module assembly to the inner roof panel.
- Install the 6 screws (2).
- Inspect for the following conditions:
- Proper operation
- Proper fit
- Synchronization
- Adjust the sunroof window if necessary. Refer to Sunroof Window Height and Opening Fit Adjustment .
- Install the headliner. Refer to Headliner Replacement (Without Sunroof) or Headliner Replacement (With Sunroof) in Interior Trim.
