Removal Procedure
Courtesy of GENERAL MOTORS CORP.
- Lower the rear of the headliner to gain access to the sunroof control module. Refer to Headliner Replacement (Without Sunroof)
or Headliner Replacement (With Sunroof)
in Interior Trim.

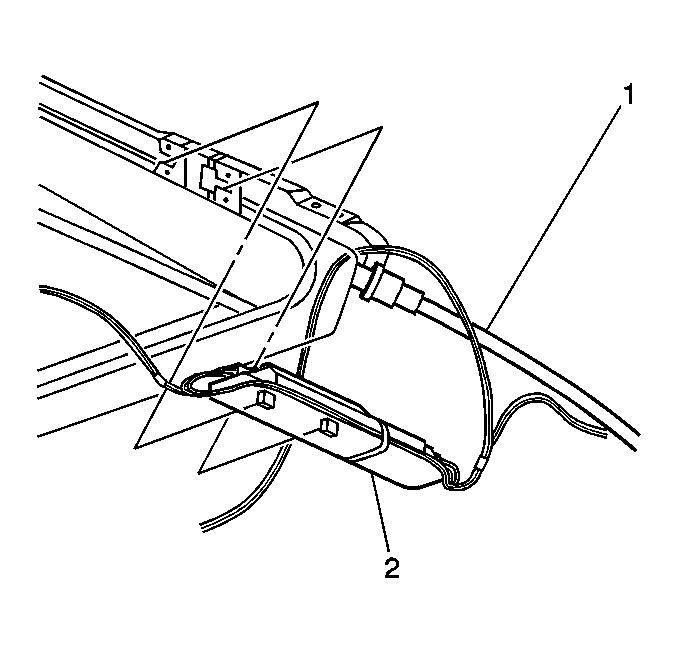

- Depress the tab (3) on the side of the sunroof control module (2).
- With the tab (3) on the side depressed, slide the sunroof control module towards the sunroof motor/actuator in order to release the control module from the sunroof module assembly.
- Disconnect the electrical connectors.
- Remove the sunroof control module from the sunroof module assembly.
