Installation Procedure

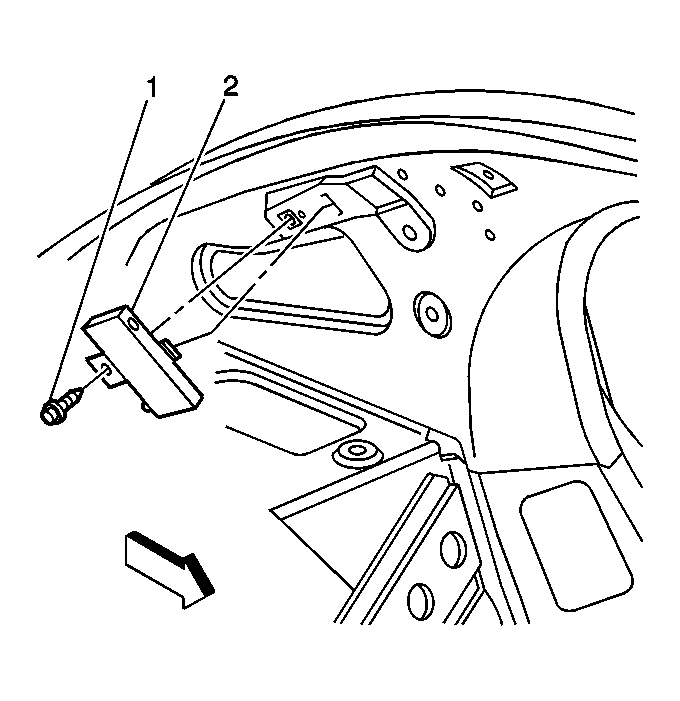

    Fig 1: Removing/Installing Antenna Module
    GM258820Courtesy of GENERAL MOTORS CORP.
  1. Engage the module tab into the slot.
  2. Rotate the tab down in order to align the hole for the bolt (1).
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the bolt (1).

    Tighten:  Tighten the ground antenna to 7.5 N.m (66 lb in).

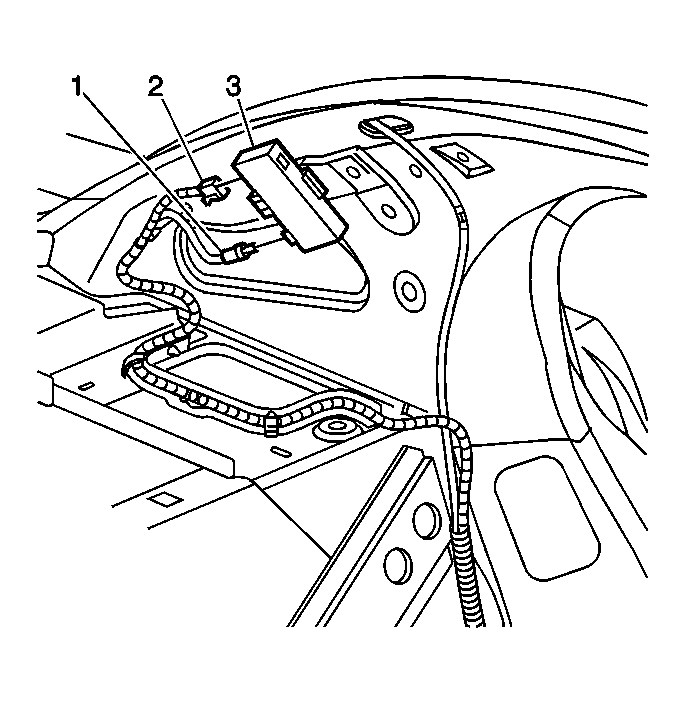

    4. Fig 2: Disconnecting/Reconnecting Antenna Module Connectors
    GM258823Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connectors (2) to the module (3).
  5. Connect the antenna coax cable (1) to the module (3).
  6. Install the left sail trim panel. Refer to Sail Panel Replacement in Interior Trim.
