Power Window Schematics

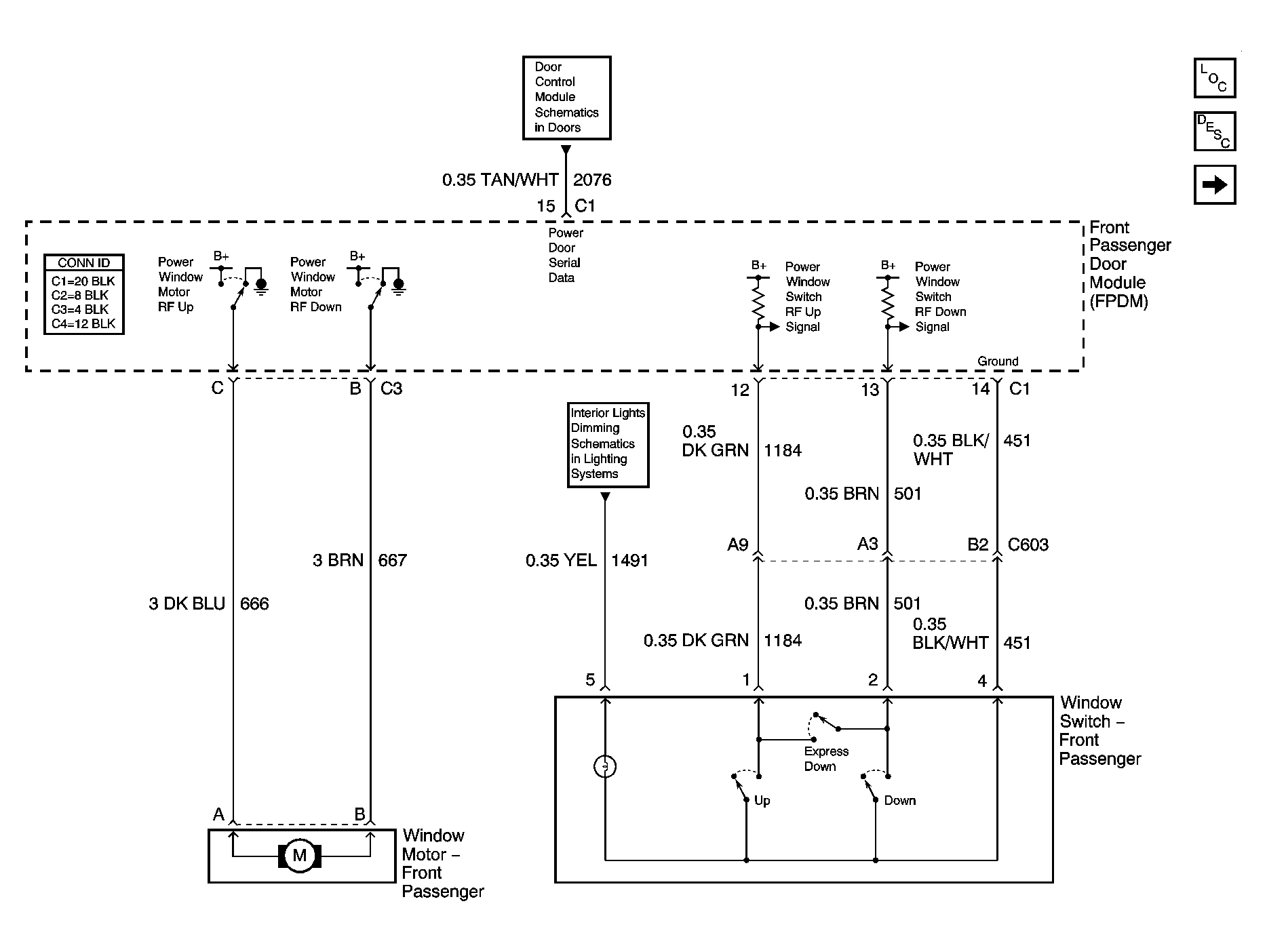

Fig 1: Front Passenger Door Schematics
GM1545407Courtesy of GENERAL MOTORS CORP.

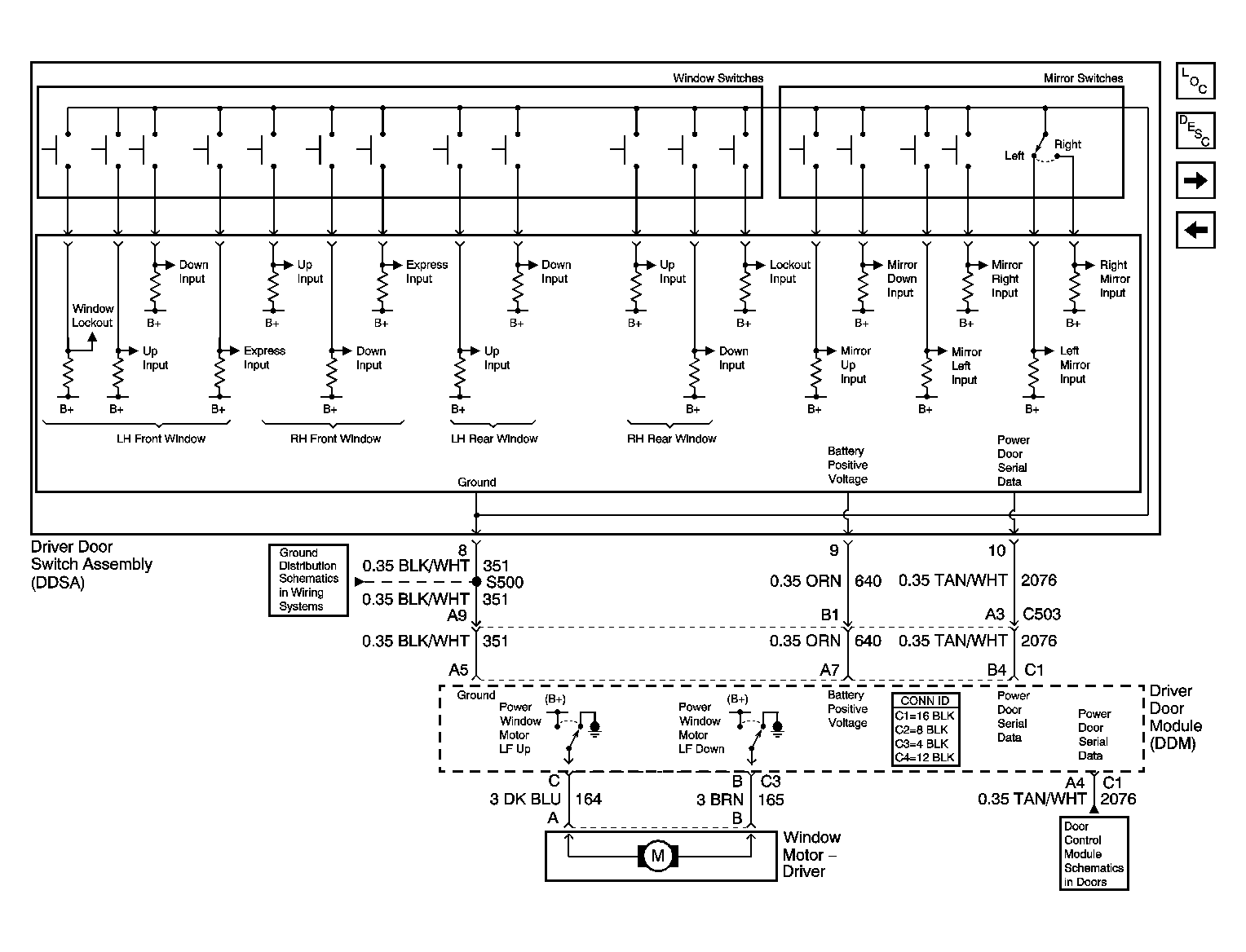

Fig 2: Driver Door Schematic
GM675931Courtesy of GENERAL MOTORS CORP.

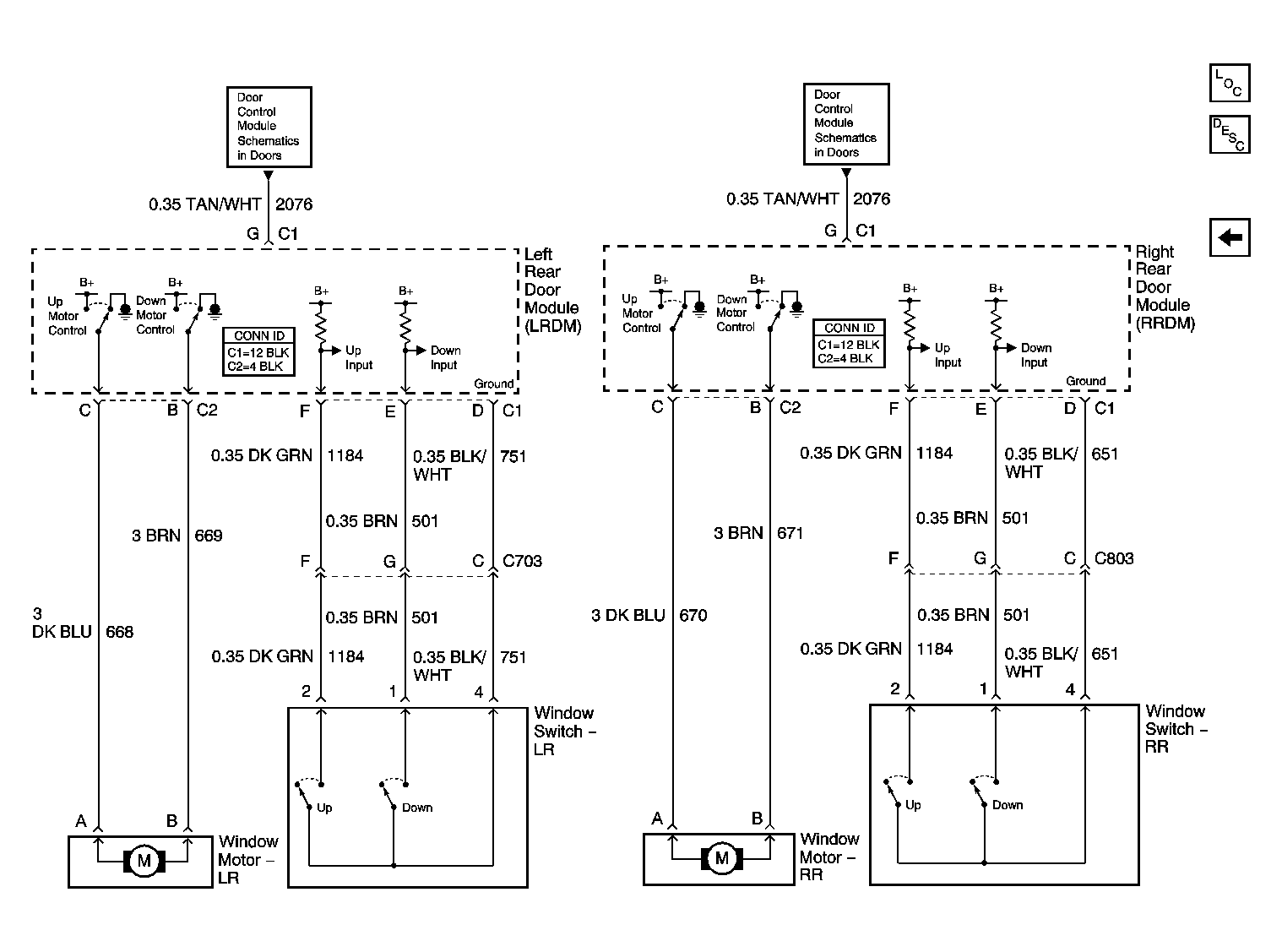

Fig 3: Left Rear Door and Right Rear Door Schematic
GM675935Courtesy of GENERAL MOTORS CORP.
