Installation Procedure

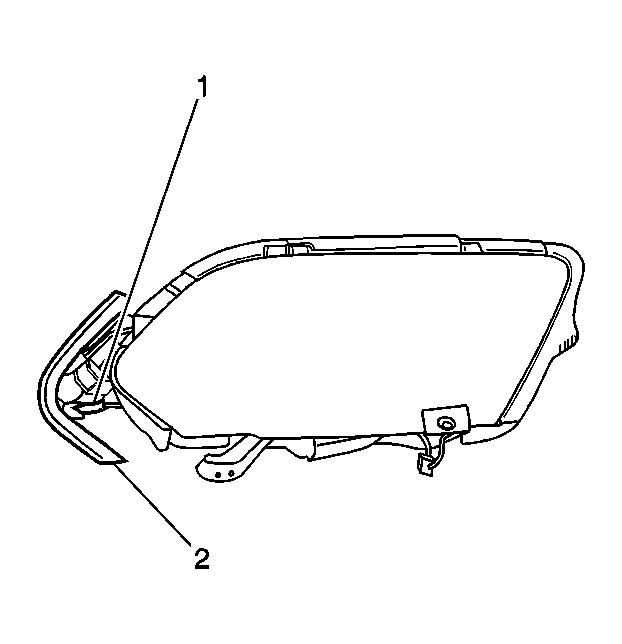

    Fig 1: View of Electrical Connector and Trim Panel
    GM428523Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector (1).
  2. Align the retaining clips on the trim panel (2) with the console.
  3. Push the trim panel inward in order to secure the retaining clips.
