Installation Procedure

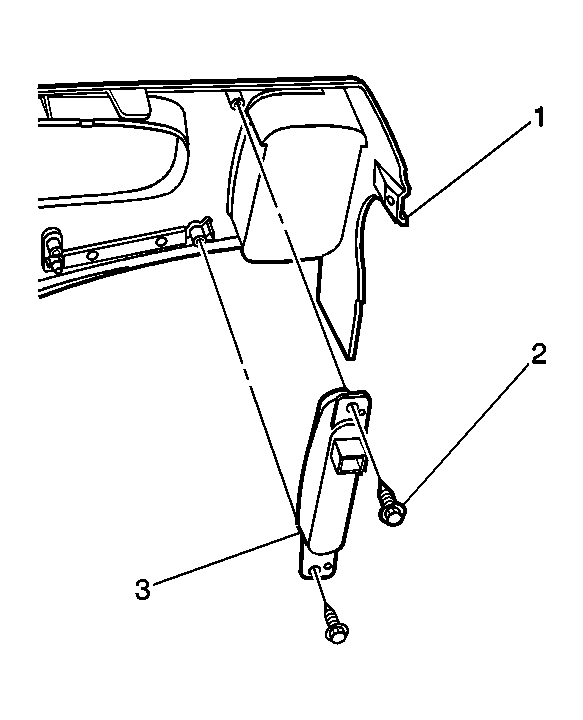

    Fig 1: Removing/Installing Driver Information Center Switch
    GM262567Courtesy of GENERAL MOTORS CORP.
  1. Install the driver information center switch (3) to the IP cluster trim plate (1).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fasteners (2).

    Tighten:  Tighten the fasteners to 2 N.m (18 lb in).

  3. Connect the electrical connector.
  4. Install the IP cluster trim plate (1). Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster .
