Installation Procedure

  1. Connect the electrical connector.

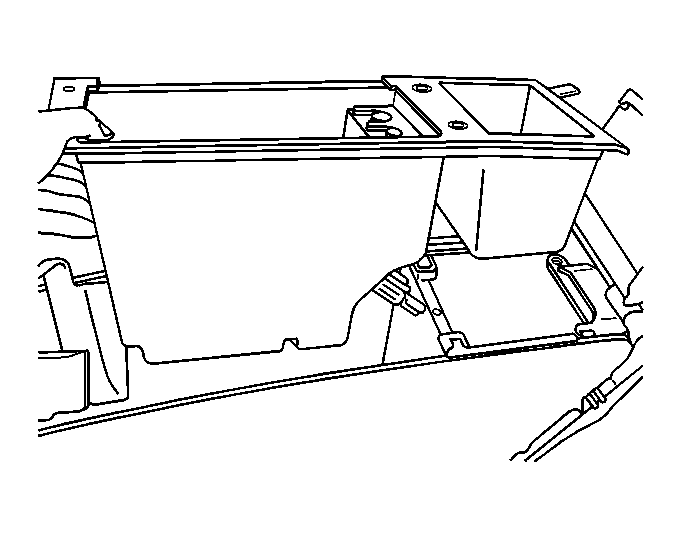

    2. Fig 1: View of Storage Bin
    GM428521Courtesy of GENERAL MOTORS CORP.
  2. Install the storage bin into the console.

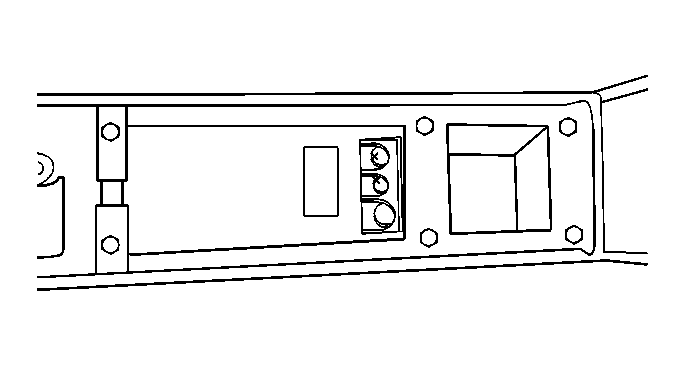

    3. Fig 2: View of Console Storage Bin & Fasteners
    GM428520Courtesy of GENERAL MOTORS CORP.
  3. Install the fasteners to the storage bin.
  4. Install the rear console door. Refer to Door Replacement - Console Compartment Rear .
  5. Install the center door. Refer to Door Replacement - Console Compartment Center .
