Installation Procedure

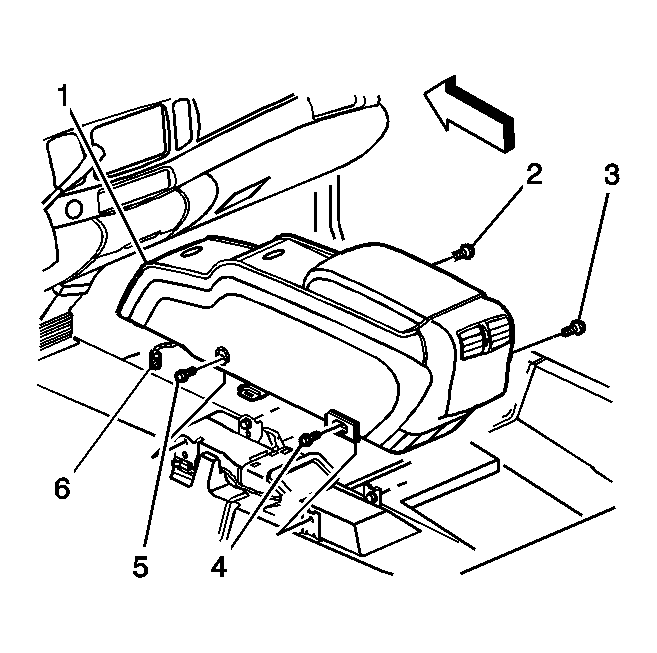

    Fig 1: View of Rear Side Bolts, Front side Bolts, Electrical Connector & Console Assembly
    GM789102Courtesy of GENERAL MOTORS CORP.
  1. Carefully, as not to damage the front seats, position the console (1) in the vehicle.
  2. Connect the electrical connector (6).
  3. Align the console assembly (1) to the floor mounting holes.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the front two bolts (2,5).

    Tighten:  Tighten the bolts to 2 N.m (18 lb in).

  5. Move the front seats to the full forward position.
    6. NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the rear two bolts (3,4).

    Tighten:  Tighten the bolts to 2 N.m (18 lb in).
