Outside Mirror Schematics

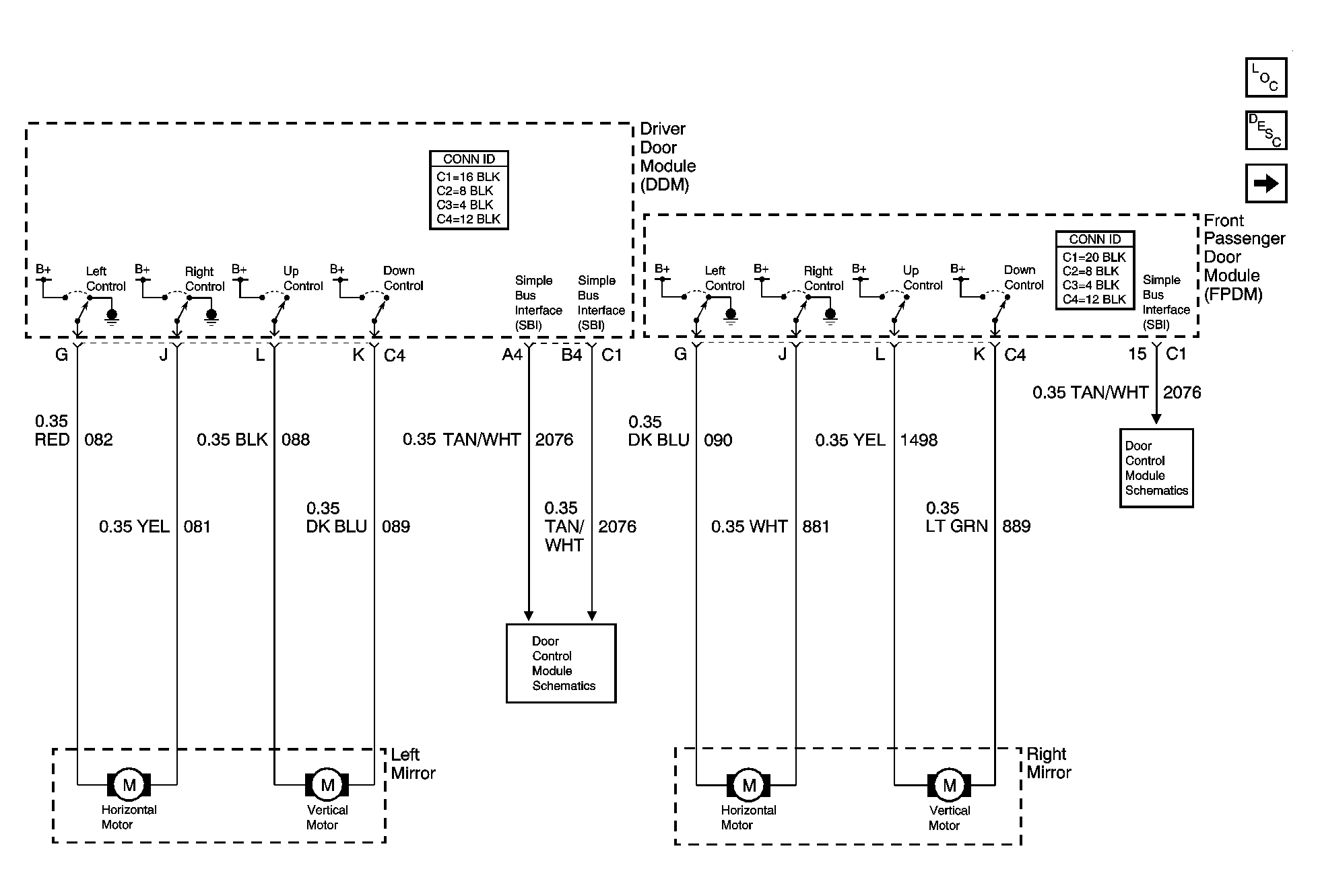

Fig 1: Driver Mirror and Front Passenger Mirror Schematic
Courtesy of GENERAL MOTORS CORP.

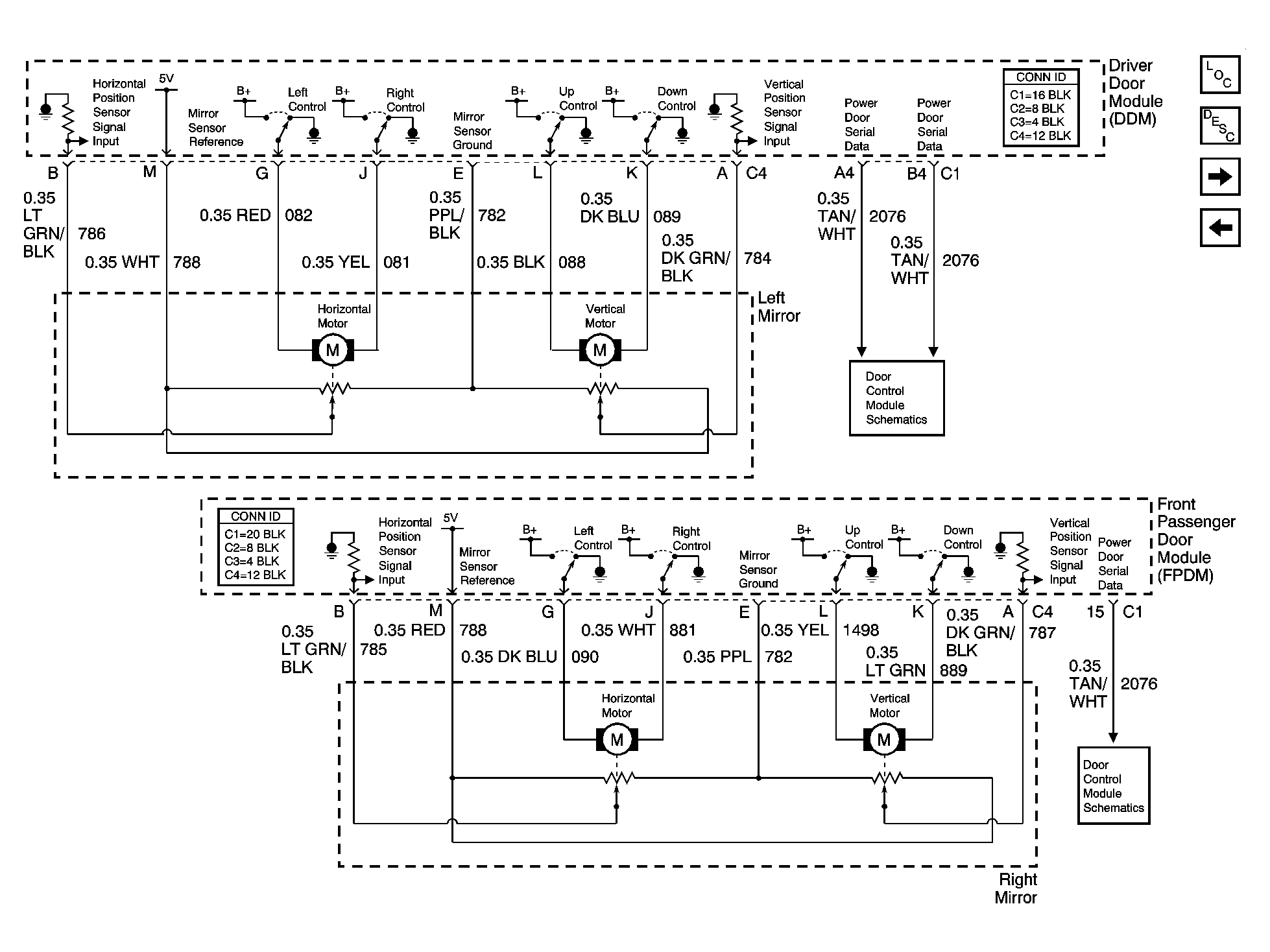

Fig 2: Driver Mirror and Front Passenger Mirror Schematic - w/A45
Courtesy of GENERAL MOTORS CORP.

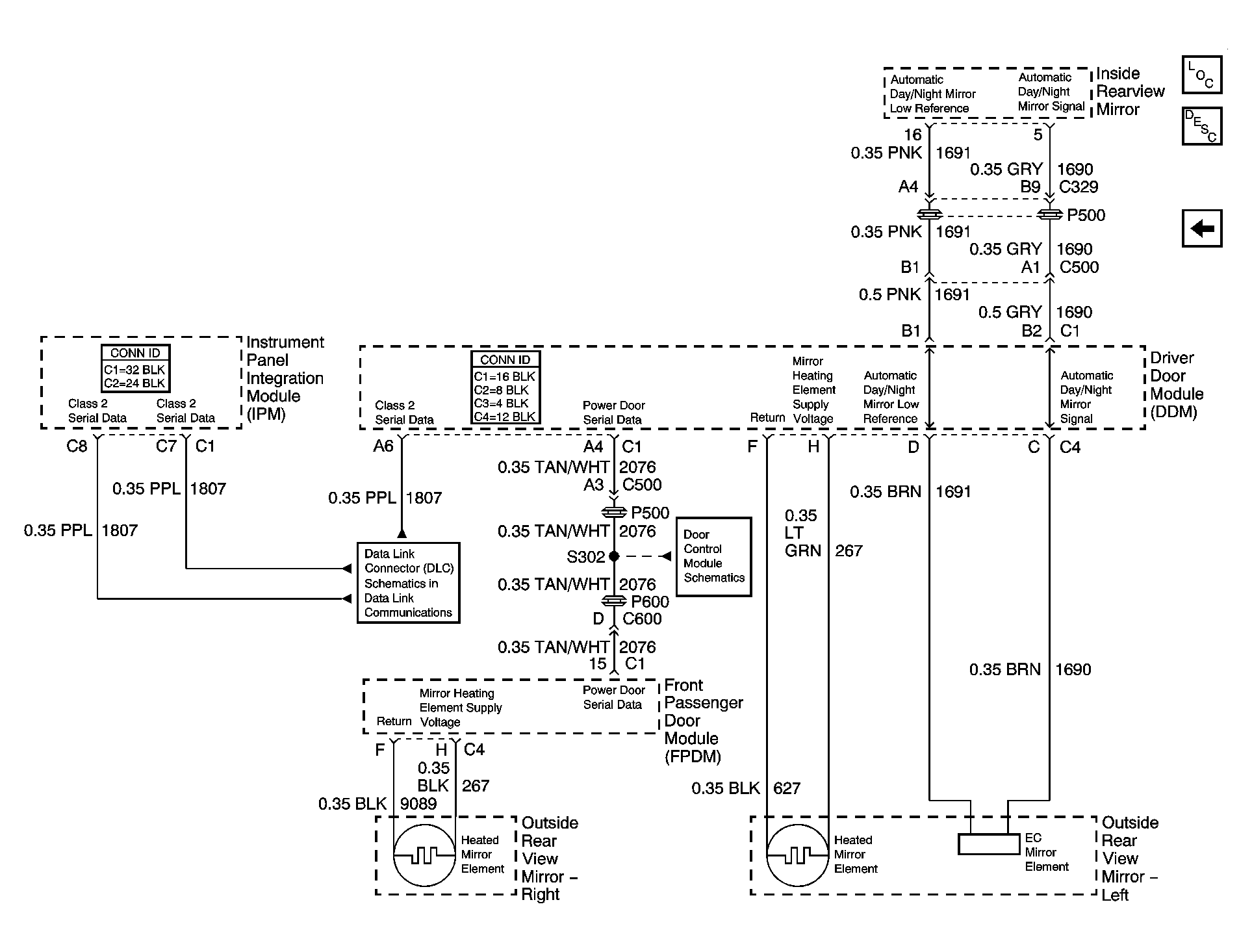

Fig 3: Heated Mirrors Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
