Installation Procedure

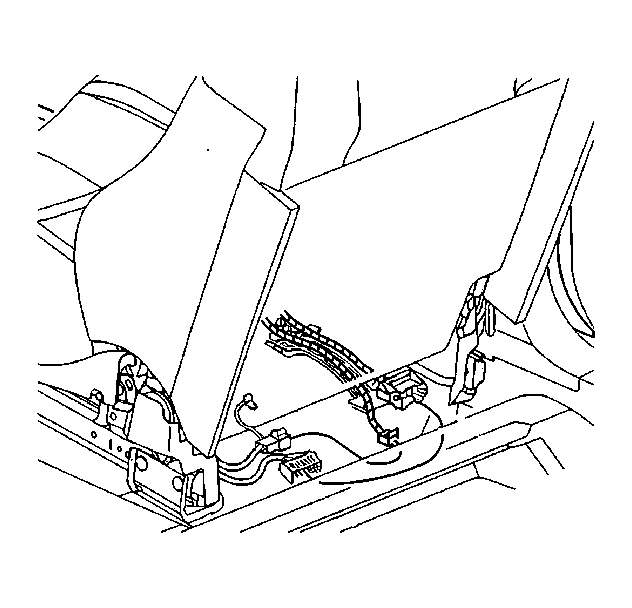

Fig 1: View of Center Belt on AM6 Drivers Seat

Courtesy of GENERAL MOTORS CORP.

Position the front seat in the vehicle.
Install the center seat belt on the AM6 drivers seat. Refer to Seat Belt Replacement - Center Front in Seat Belts.
Connect the electrical connector on the six-way power seat.

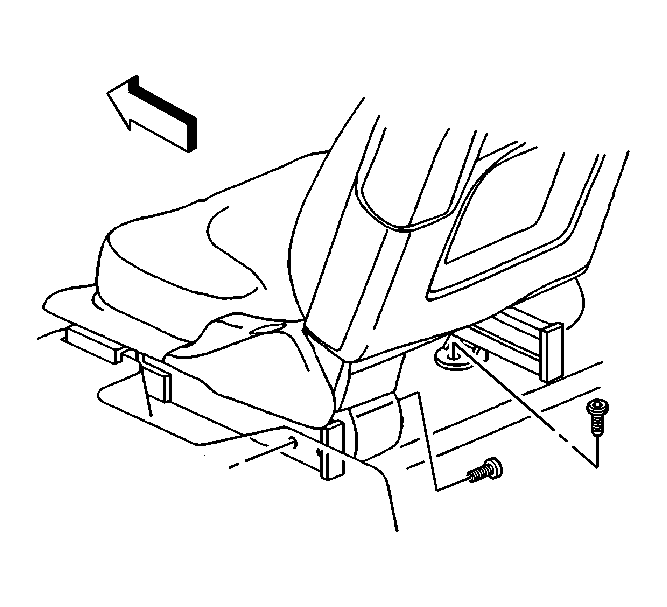

Fig 2: View Of Seat Track Fasteners

Courtesy of GENERAL MOTORS CORP.

Install the rearward front seat fasteners.
Tighten: Tighten the fasteners to 30 N.m (22 lb ft).

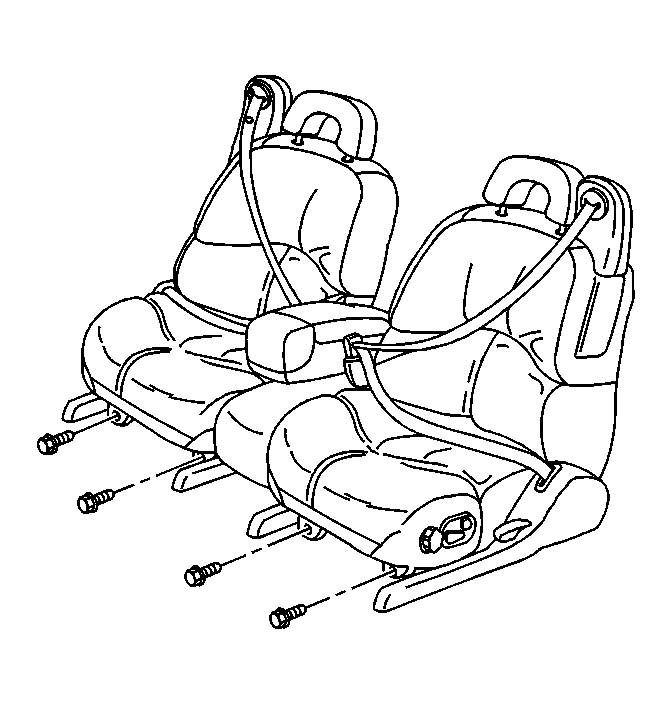

Fig 3: View of Forward Front Seat Fasteners

Courtesy of GENERAL MOTORS CORP.

Place the seat to the full rearward position.
Install the forward front seat fasteners.
Tighten: Tighten the fasteners to 30 N.m (22 lb ft).

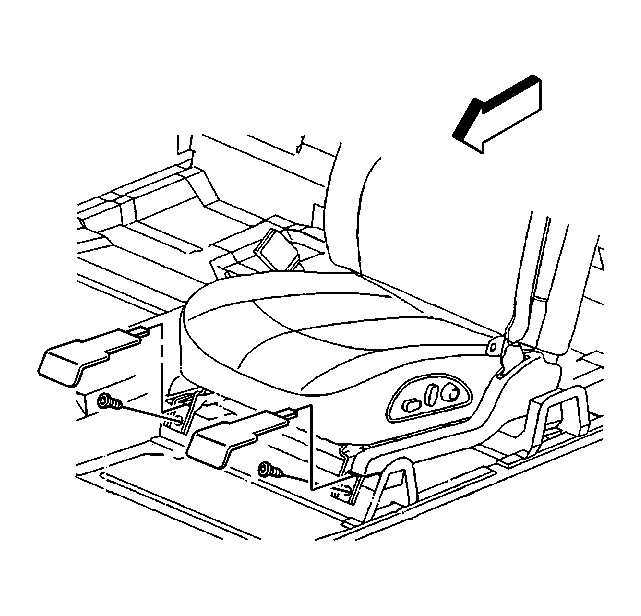

Fig 4: View of Front Seat At Full Rearward Position

Courtesy of GENERAL MOTORS CORP.

Install the front seat fastener trim covers.
Return the front seat to its original position.
Enable the SIR system. Refer to SIR Disabling and Enabling Zone 7 and SIR Disabling and Enabling Zone 9 in SIR.
