Harness Routing Views

WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: LF Of The Vehicle Connectors
GM1254202Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C106 Shown, C107 Similar
2 Headlamp Assembly - Left Shown, Right Similar
3 Cornering/Marker Lamp - Left Shown, Right Similar
4 Headlamp Low Beam - Left Shown, Right Similar
5 Headlamp High Beam - Left Shown, Right Similar
6 Park/Turn Signal Lamp - LF Shown, RF Similar
Fig 2: Front Of Vehicle Connectors
GM1340766Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C120
2 Fuse Block - Underhood, C3
3 G101
4 Fog Lamp - LF Connector (Regal)
5 C106
6 Forward Lamp Wiring Harness
7 Ambient Outside Air Temperature Sensor Connector (CJ2)
8 Fog Lamp - RF Connector (Regal)
9 C107
10 C103
Fig 3: RF Of The Vehicle Connectors
GM592187Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Right Front Frame Rail
2 Horn Assembly
3 C103
Fig 4: Cooling Fans Connectors
GM859061Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Wiring Harness
2 C105
3 Cooling Fan - Right Connector
4 Cooling Fan Jumper Wiring Harness
5 Cooling Fan - Left Connector
Fig 5: Upper Rear Of The Engine Components (LG8) Connectors
GM1219598Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator B+
2 Generator
3 Generator Connector
4 Engine Wiring Harness
5 C102
6 Heated Oxygen Sensor (HO2S) 1
7 Ignition Control Module (ICM), C2
8 Ignition Control Module (ICM), C3
Fig 6: Upper Front Of The Engine Connectors (L36)
GM1268173Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Manifold Absolute Pressure (MAP) Sensor
2 C110
3 Fuel Injector 5
4 C126
5 Engine Wiring Harness
6 Evaporative Emission (EVAP) Canister Purge Solenoid Valve
7 Fuel Injector 3
8 Fuel Injector 1
9 Ignition Control Module (ICM) Wiring Harness
Fig 7: Upper Front Of The Engine Connectors (L67)
GM1273290Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C110
2 C126
3 Idle Air Control (IAC) Valve
4 Throttle Position (TP) Sensor
5 Mass Air Flow (MAF) Sensor
6 Intake Air Temperature (IAT) Sensor Connector
7 Supercharger Boost Control Solenoid
8 Fuel Injector 5
9 Fuel Injector 3
10 Fuel Injector 1
Fig 8: RF Of The Engine Compartment Connectors (L36/L67)
GM1043757Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Camshaft Position (CMP) Sensor
2 Ignition Control Module (ICM) Wiring Harness
3 C110
4 Ignition Control Module (ICM)
5 Ignition Coils
6 G111
7 Ignition Control Module (ICM) Wiring Harness
8 Ignition Control Module (ICM) Wiring Harness
9 Crankshaft Position (CKP) Sensor
Fig 9: Lower Rear Of The Engine Connectors (L36/L67)
GM1273481Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C125
2 Engine Oil Pressure Switch
3 Vehicle Speed Sensor
4 Knock Sensor (KS) 2
5 Knock Sensor (KS) 2 Connector
6 Knock Sensor (KS) 2 Jumper Harness
7 C125
Fig 10: Left Side Of Engine Compartment Connectors (LG8)
GM849492Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G111
2 G113
3 C113
4 Electronic Brake Control Module (EBCM) Connector (JL9/JM4)
5 C101
6 A/C Refrigerant Pressure Sensor Connector
7 Wheel Speed Sensor (WSS) - LF (JL9/JM4)

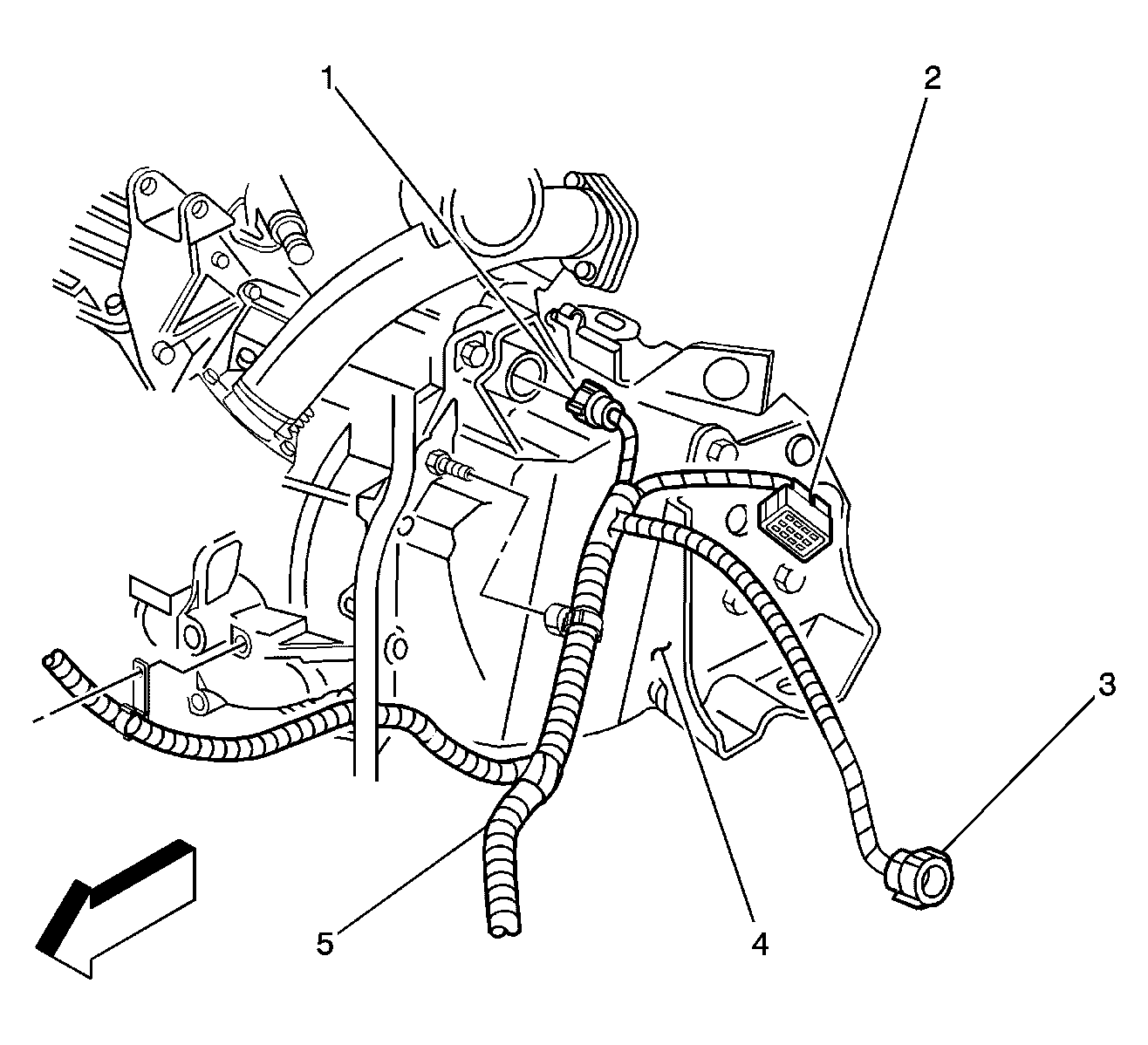

Fig 11: Transmission Connectors (L36/L67)
GM1042171Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C113
2 Electronic Brake Control Module (EBCM) Connector (JL9/JM4)
3 C101
4 Automatic Transmission
5 Engine Wiring Harness
Fig 12: LR Of The Engine Compartment Connectors
GM1095521Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 P103
2 I/P Wiring Harness
3 Cruise Control Module (CCM) Connector
4 Cruise Control Module (CCM) (K34)
5 Electronic Brake Control Module (EBCM) (JL9/JM4)
6 Electronic Brake Control Module (EBCM) Connector (JL9/JM4)
7 Engine Wiring Harness
8 Brake Fluid Level Switch
9 C101
10 A/C Refrigerant Pressure Sensor
11 Engine Wiring Harness
12 G171 (JL9/JM4)

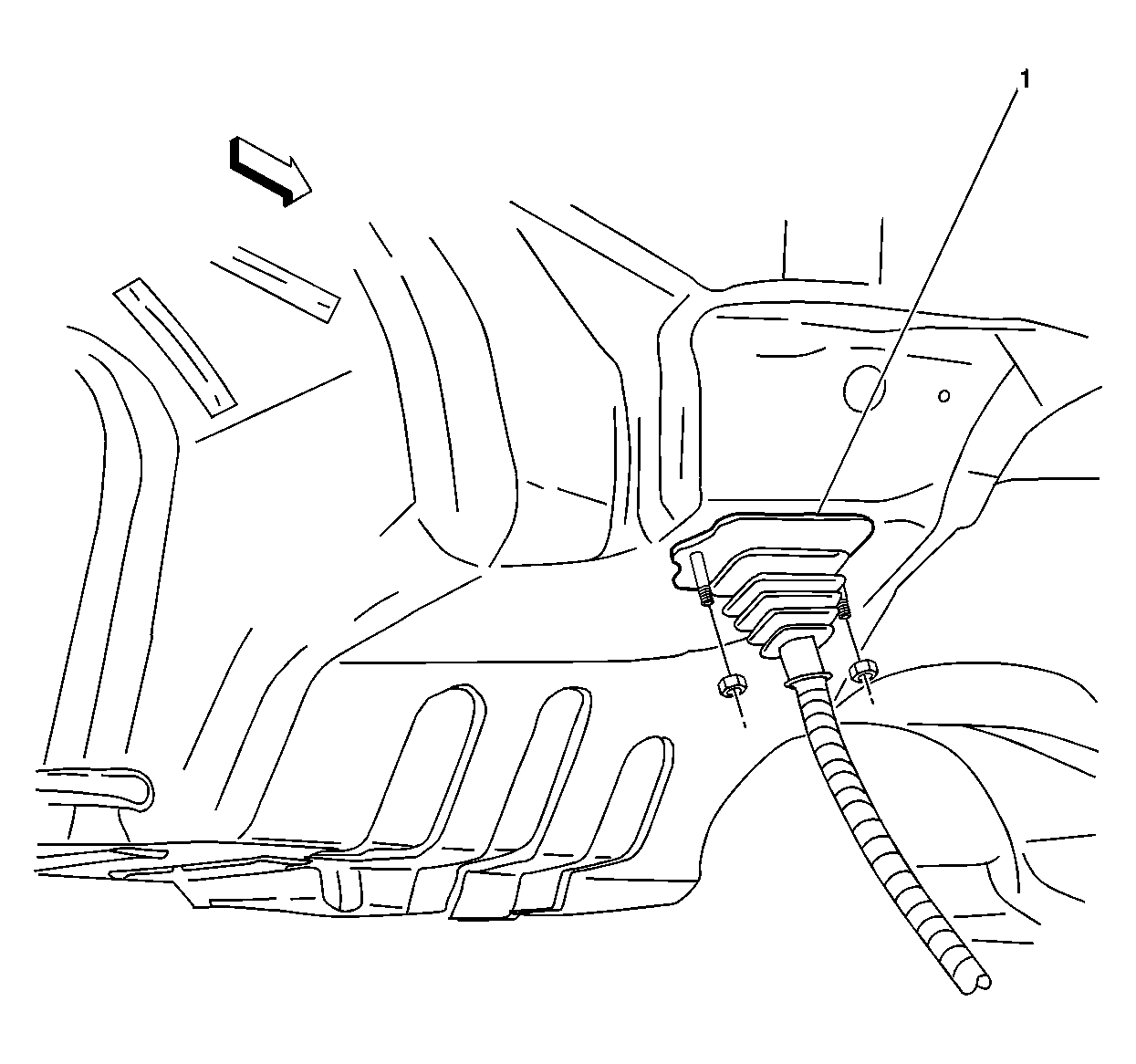

Fig 13: IP Harness Passthrough To Engine Compartment Connectors
GM581306Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 P100
Fig 14: Steering Wheel Connectors
GM1318303Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Wheel Controls - Left (UK3)
2 C203 (UK3)
3 Steering Wheel Controls - Right (UK3)
4 Inflatable Restraint Steering Wheel Module Connector
5 Inflatable Restraint Steering Wheel Module
6 Horn Switch B+ Connector
7 C203 (UK3)
8 Horn Switch Ground Connector
Fig 15: Lower Left Of The I/P Connectors
GM1254617Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cruise Control Release Switch
2 Stop Lamp Switch
3 C201
4 Stop Lamp Switch Connector C2
5 Stop Lamp Switch Connector C1
6 C207
7 C216
8 C215
9 C201
10 G201
11 C205 (UK3)

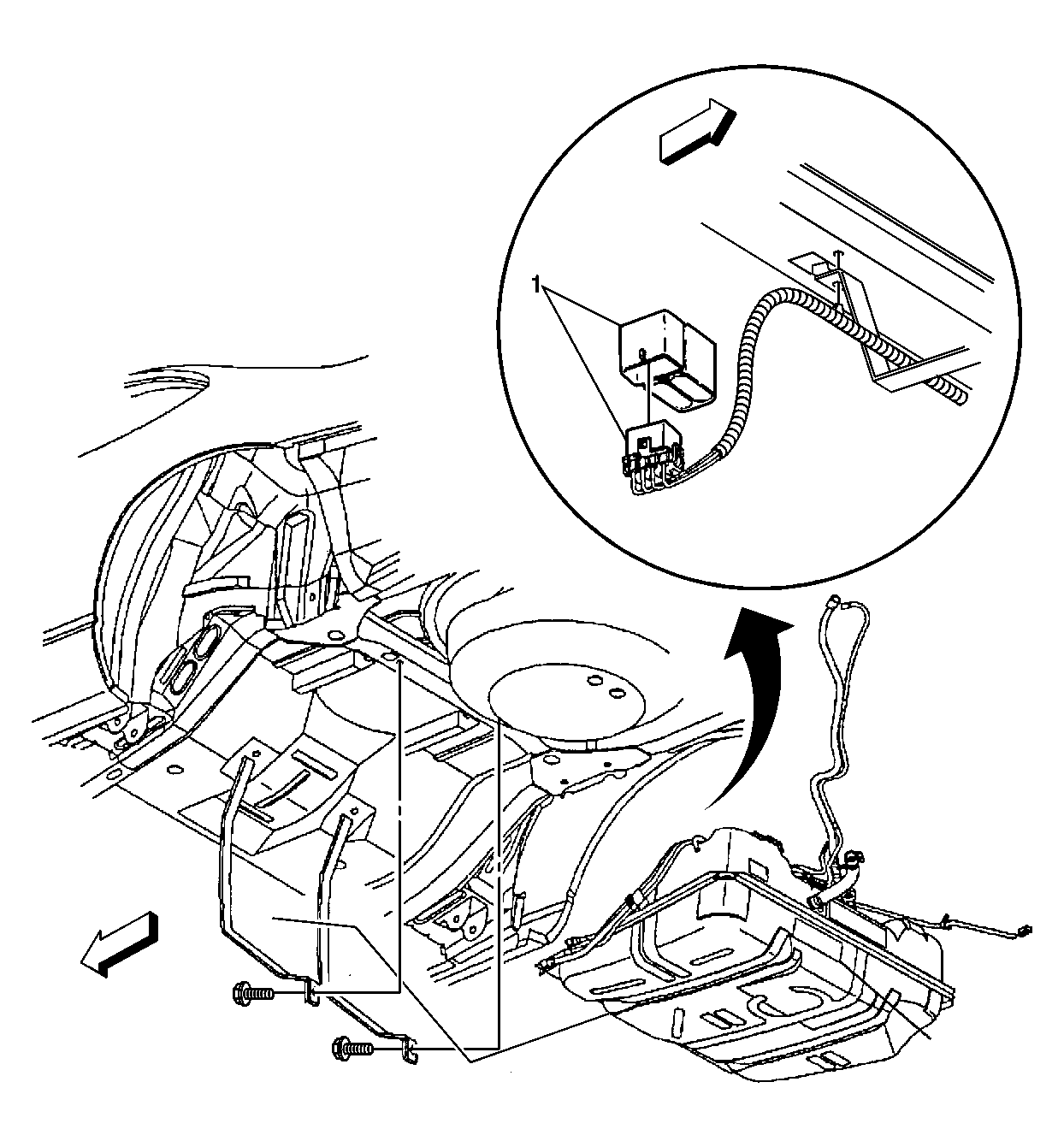

Fig 16: Vehicle Fuel Tank Connectors
GM374824Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C405
Fig 17: Behind The Right Side Of The I/P Connectors
GM1162362Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Vacuum Reservoir
2 G200
3 Fuse Block - I/P
4 C200
5 Blower Motor
6 Blower Motor Resistor Assembly (CJ3)/Blower Motor Control Processor (CJ2)
7 P100
8 Vacuum Reservoir
9 Black Vacuum Hose
10 Air Temperature Actuator - Right
11 Automatic Headlamp Relay
12 Rear Compartment Lid Release Relay
13 Rear Window Defogger Relay
14 Retained Accessory Power (RAP) Relay
15 I/P Wiring Harness
16 Air Temperature Actuator - Left
Fig 18: Right Side Of The I/P Connectors - Front
GM1250639Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C200
2 G200
3 Fuse Block - I/P
4 I/P Wiring Harness
5 C290
6 Body Wiring Harness
7 C200
Fig 19: Right Side Of Instrument Panel Connectors - Rear
GM855481Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park Lamp Relay
2 Brake to Shift Relay
3 P100
4 Fuse Block-I/P
Fig 20: Cigar Lighter Connectors (Century)
GM1252910Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C242
Fig 21: Center Console Connectors (D06)
GM1246259Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Seat Switch - Driver (KA1)
2 Traction Control Switch (Regal)
3 Heated Seat Switch - Passenger (KA1)
4 Cigar Lighter
5 Auxiliary Power Outlet (Regal)
6 C240 (Regal)
7 I/P Wiring Harness
Fig 22: Left Side Of The Passenger Compartment Connectors
GM1340808Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Wiring Harness
2 C351
3 Park Brake Cable
4 G301
5 C301
6 C311
7 Body Wiring Harness

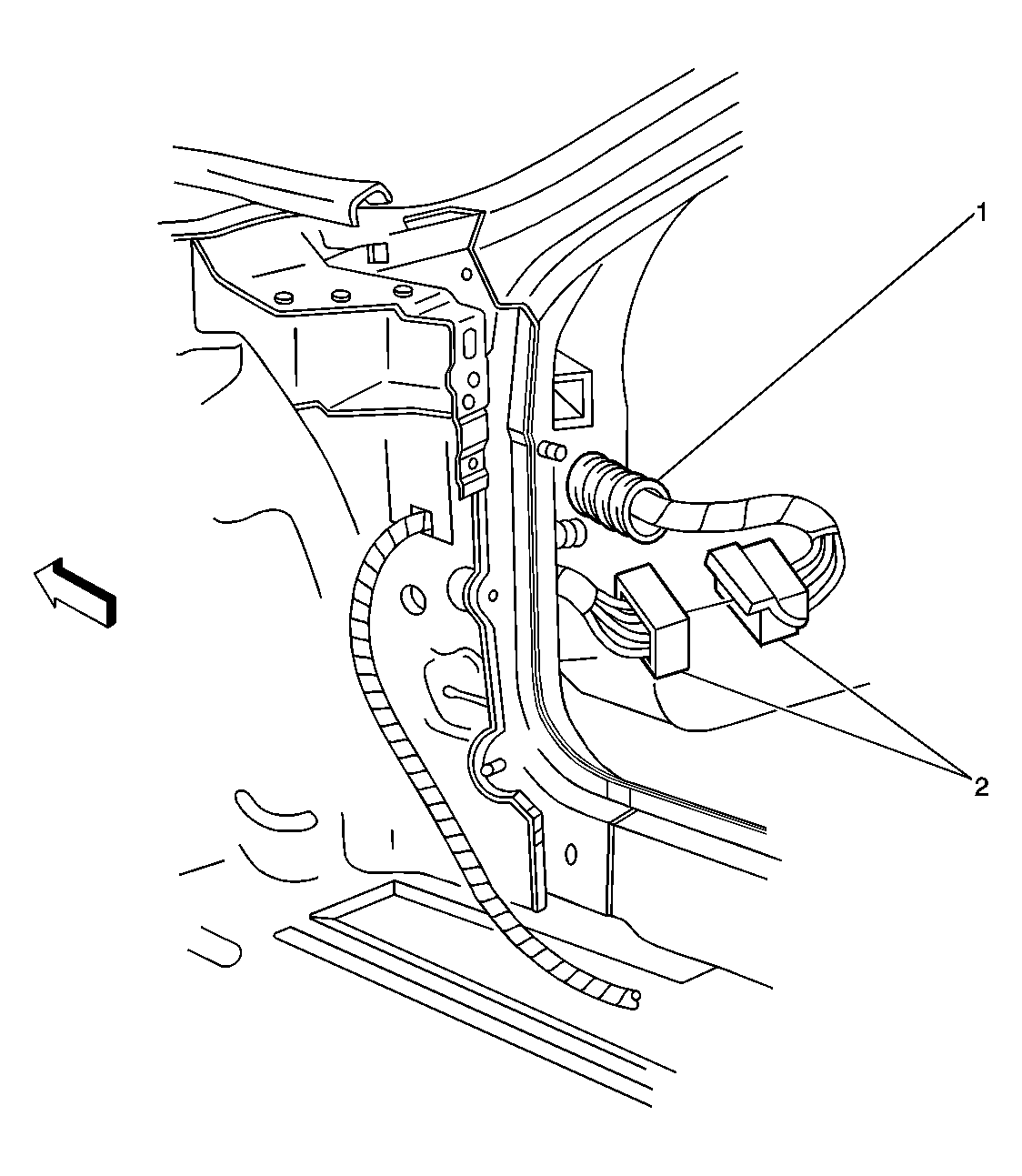

Fig 23: Lower RH A Pillar Connectors
GM581286Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 P500
2 C301

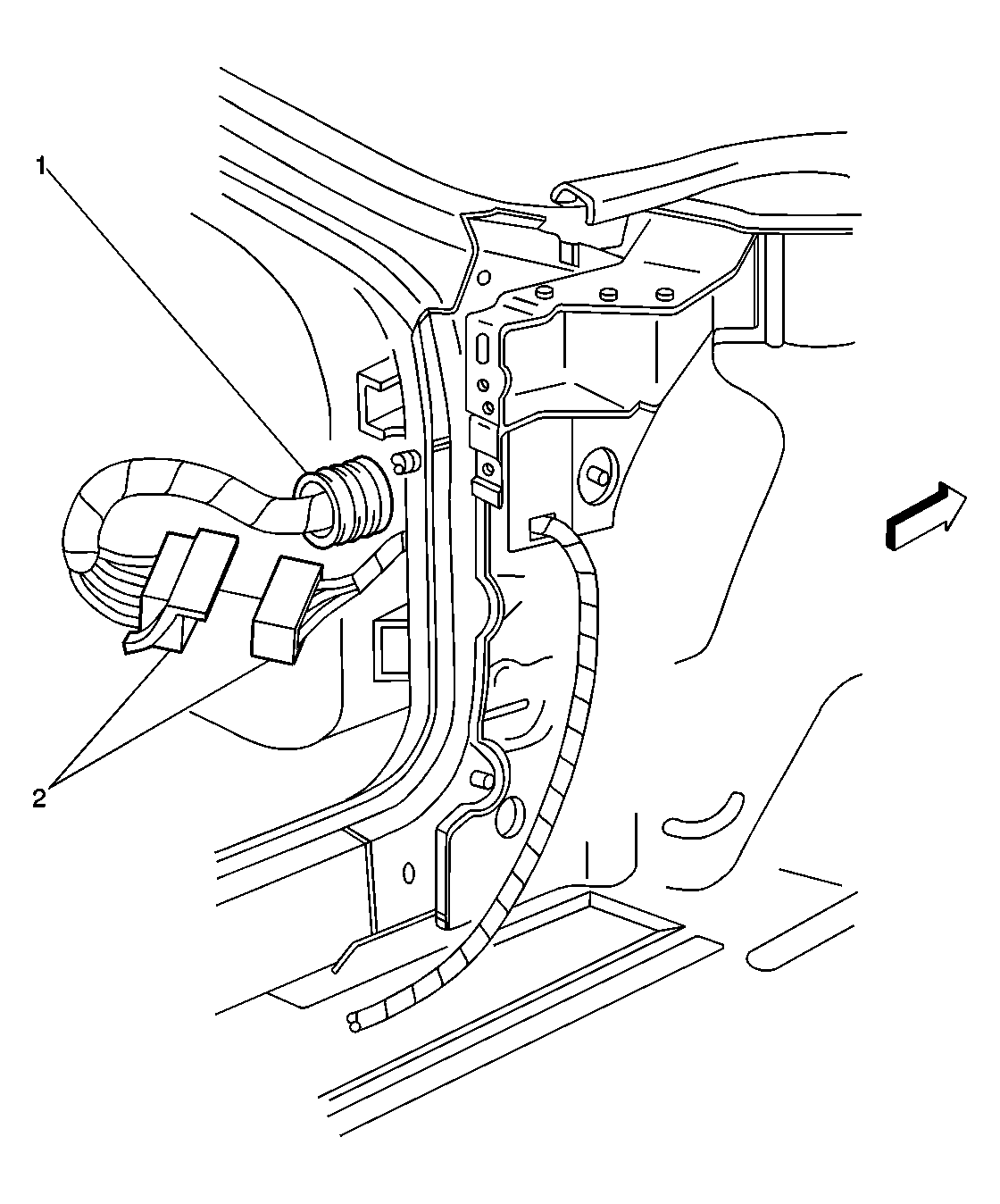

Fig 24: Lower LH A Pillar Connectors
GM581287Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 P600
2 C302
Fig 25: Cross Body Wiring Connectors
GM581283Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C311
2 Inflatable Restraint Sensing and Diagnostic Module Connector
3 Heated Seat Switch - Driver
4 Heated Seat Switch - Passenger
5 C312

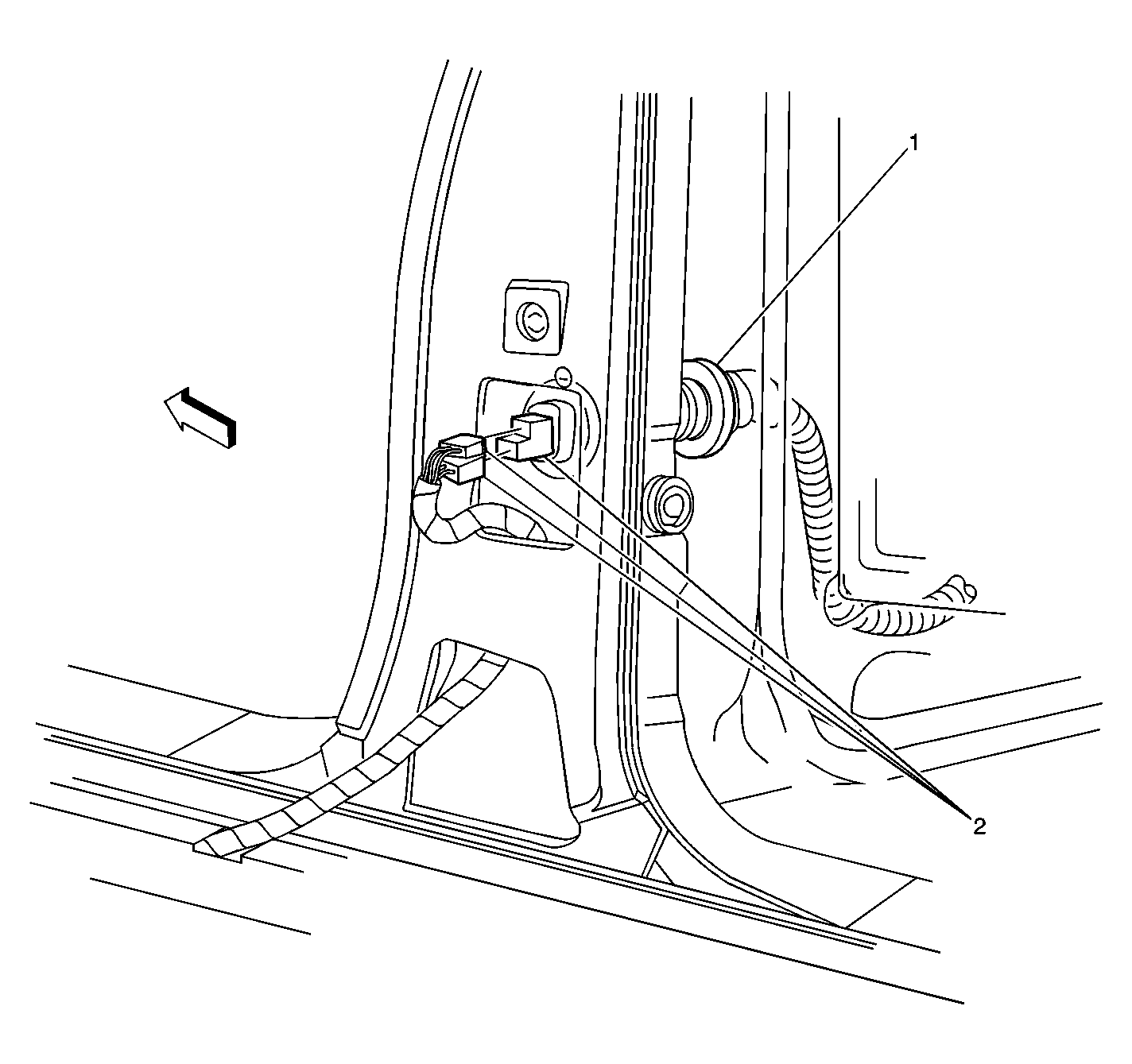

Fig 26: LH Pillar B Connectors
GM581288Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 P700 LH Shown, P800 RH Similar
2 C351 LR Shown, RR C352 Similar

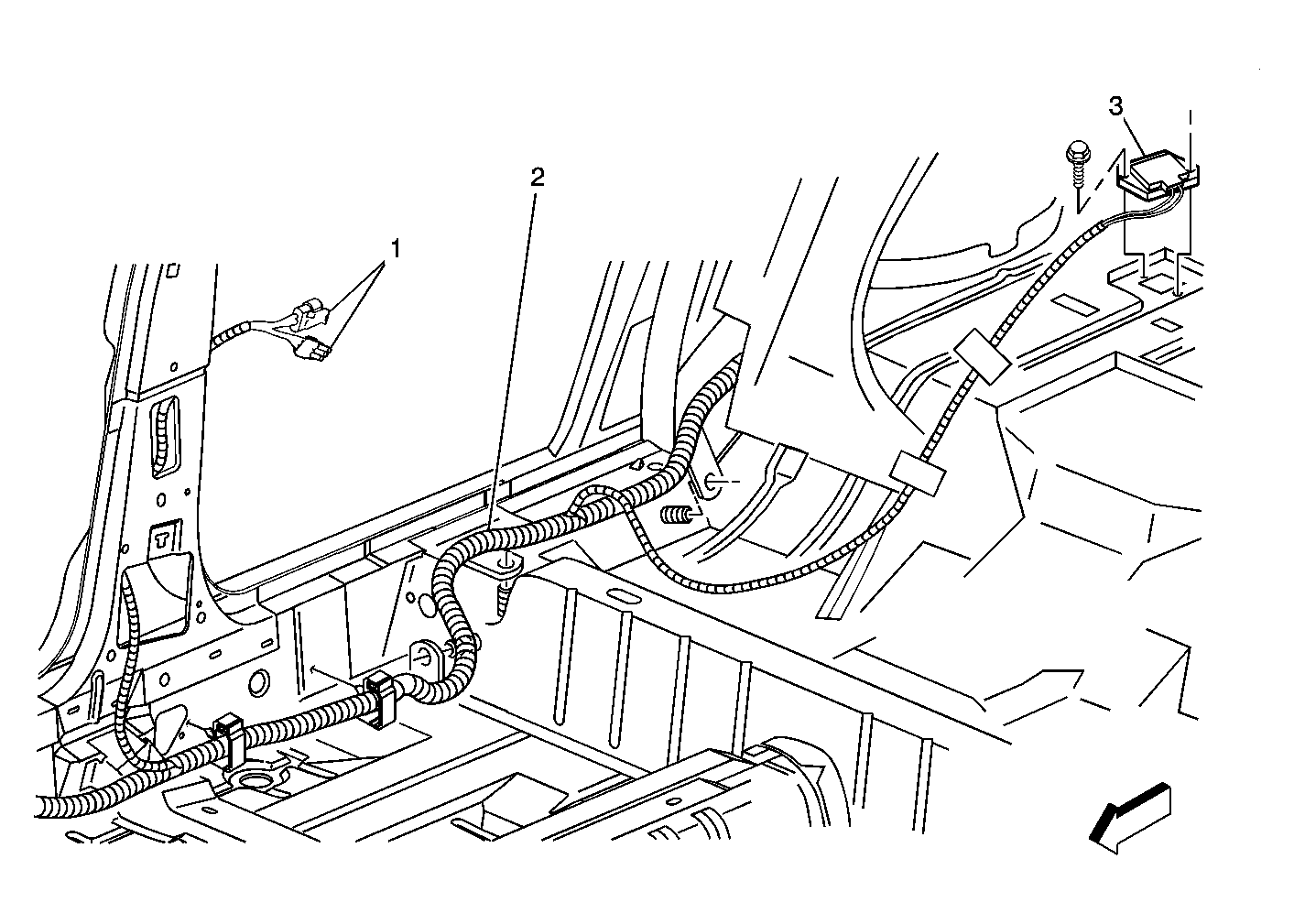

Fig 27: Right Side Of Passenger Compartment Connectors
GM1340816Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C352
2 Body Wiring Harness
3 C405
Fig 28: Left Side Of Rear Window Shelf Connectors
GM885618Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cellular Antenna Connector (UE1)
2 C404 (UE1)
3 Body Wiring Harness
4 C403 (UE1)
5 Navigation Antenna Connector (UE1)
Fig 29: Right Side Of The Rear Window Shelf Connectors
GM1340982Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radio Antenna Module (U77)
2 Rear Window Antenna Grid Connector (U77)
3 C398
4 C420
5 C399
6 C395 (U77)
7 C390
8 Rear Window Defogger Connector, C1

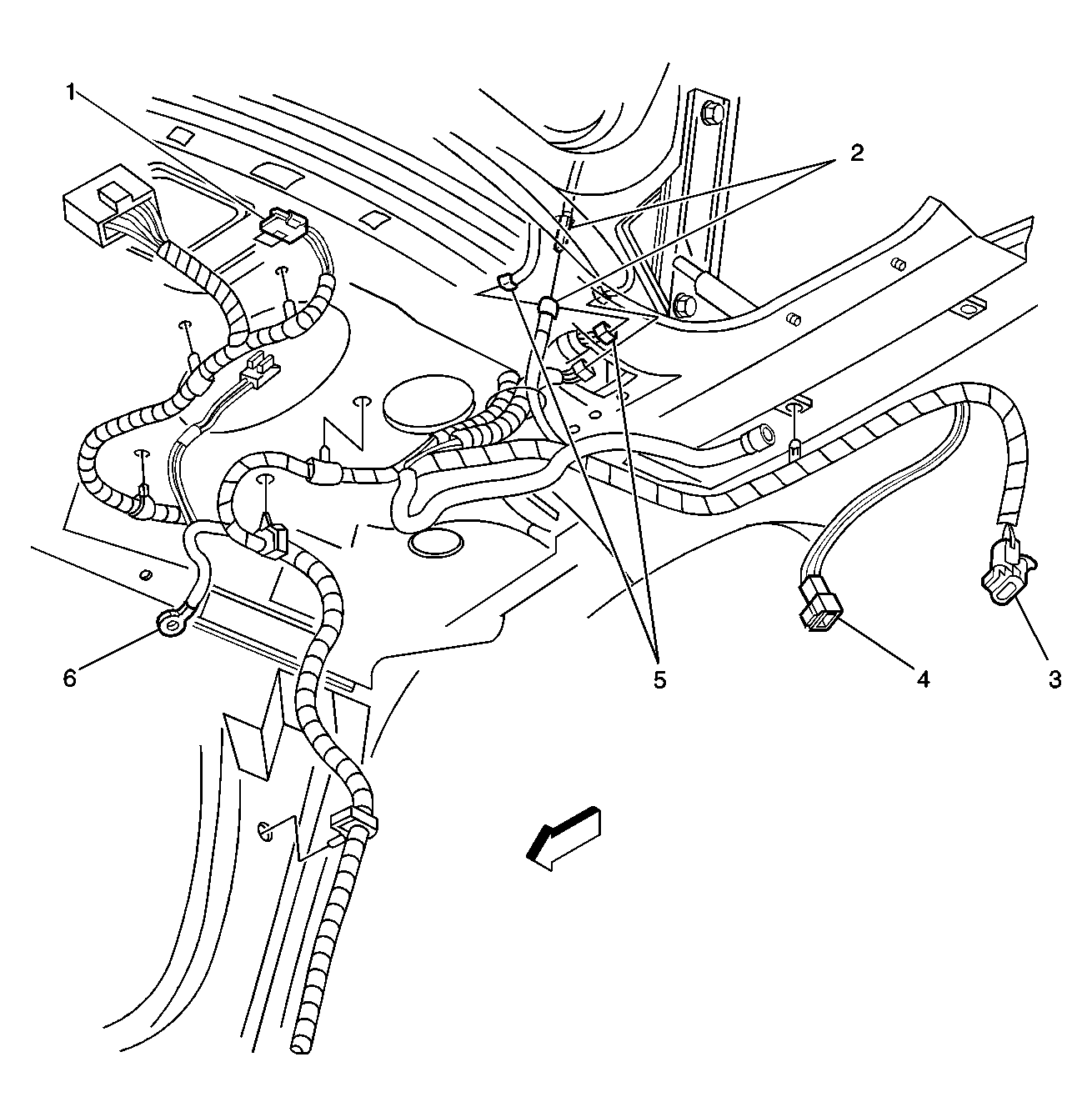

Fig 30: Right Side Of Rear Compartment Connectors
GM581289Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Compartment Courtesy Lamp Connector
2 C399
3 C402
4 C410
5 C395 (U77)
6 G402
Fig 31: Left Side Of Rear Compartment Connectors
GM1367423Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - RR Connector
2 G401
3 P425
4 Evaporative Emissions (EVAP) Canister Vent Solenoid Connector
5 C402
Fig 32: Right Side Of The Luggage Compartment Connectors (US6)
GM1367608Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C399
2 Fixed Mast Antenna

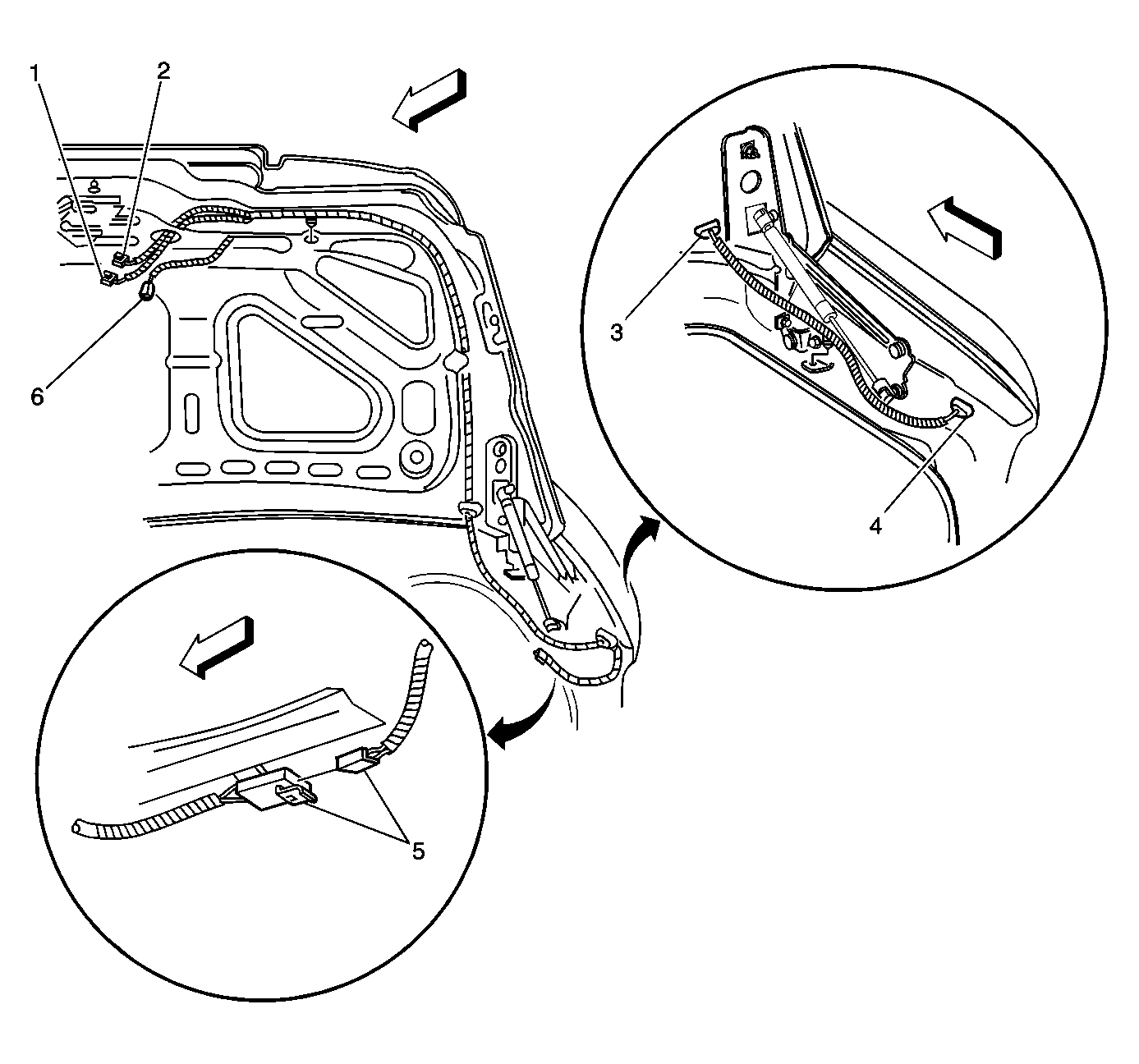

Fig 33: Rear Compartment Lid Connectors
GM581296Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Compartment Lid Ajar Switch Connector
2 Rear Compartment Lid Lock Release Actuator Connector
3 P932
4 P430
5 C410
6 C915
Fig 34: LR Of The Vehicle Connectors
GM1318236Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Evaporative Emissions (EVAP) Canister Vent Solenoid Valve
2 Body Wiring Harness
3 Evaporative Emissions (EVAP) Canister
4 P425
5 Body Wiring Harness
Fig 35: Left Rear Of Vehicle Connectors
GM1366158Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C401 Shown, C402 Similar
2 Tail/Stop and Turn Signal Lamp - Left Shown, Right Similar
3 Marker Lamp - LR Shown, RR Similar
4 P401 Shown, P402 Similar
Fig 36: Rear Of The Vehicle Connectors
GM1365922Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C915
2 P915
3 Rear Compartment Lid Lock Release Actuator
4 Rear Compartment Lid Applique
5 License Lamps
6 Tail Lamp - Right
7 Back Up Lamps
8 Tail Lamp - Left
