Retained Accessory Power (RAP) Schematics

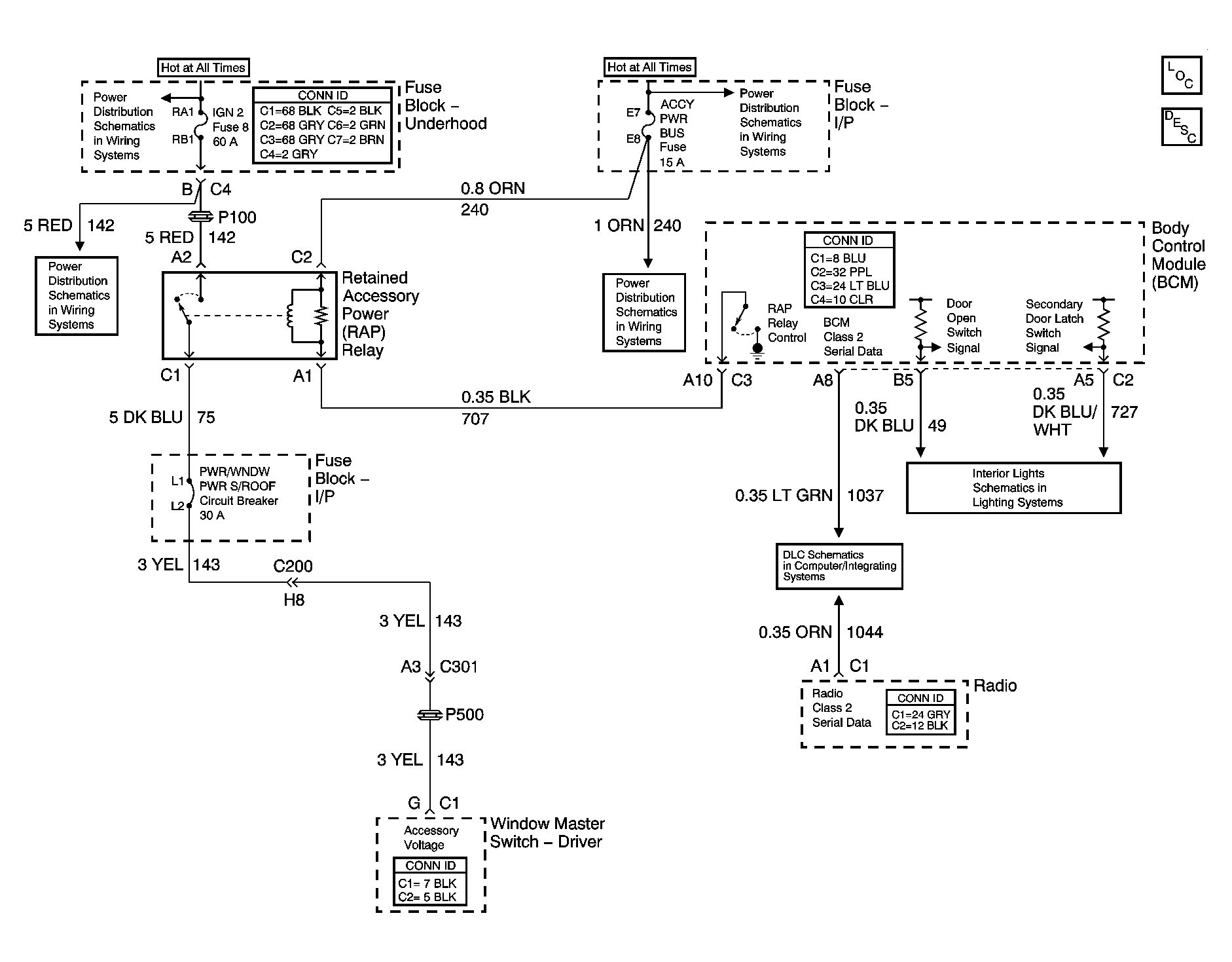

Fig 1: Retained Accessory Power (RAP) Schematic

GM1381754

Courtesy of GENERAL MOTORS CORP.
