Data Link Connector (DLC) Schematics

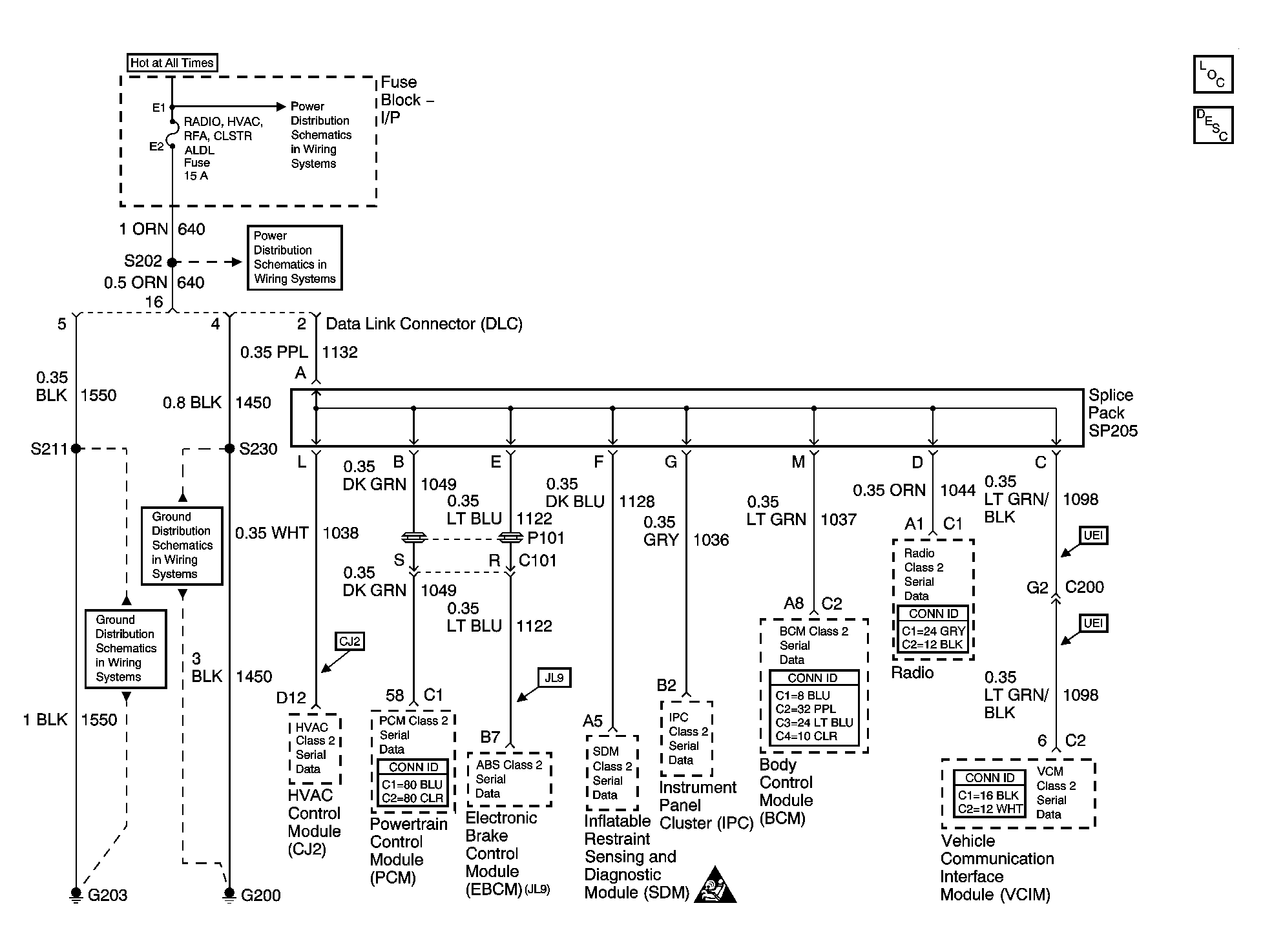

Fig 1: Data Link Connector (DLC) Schematic

GM1470261

Courtesy of GENERAL MOTORS CORP.
