Automatic Transmission Shift Lock Control Schematics

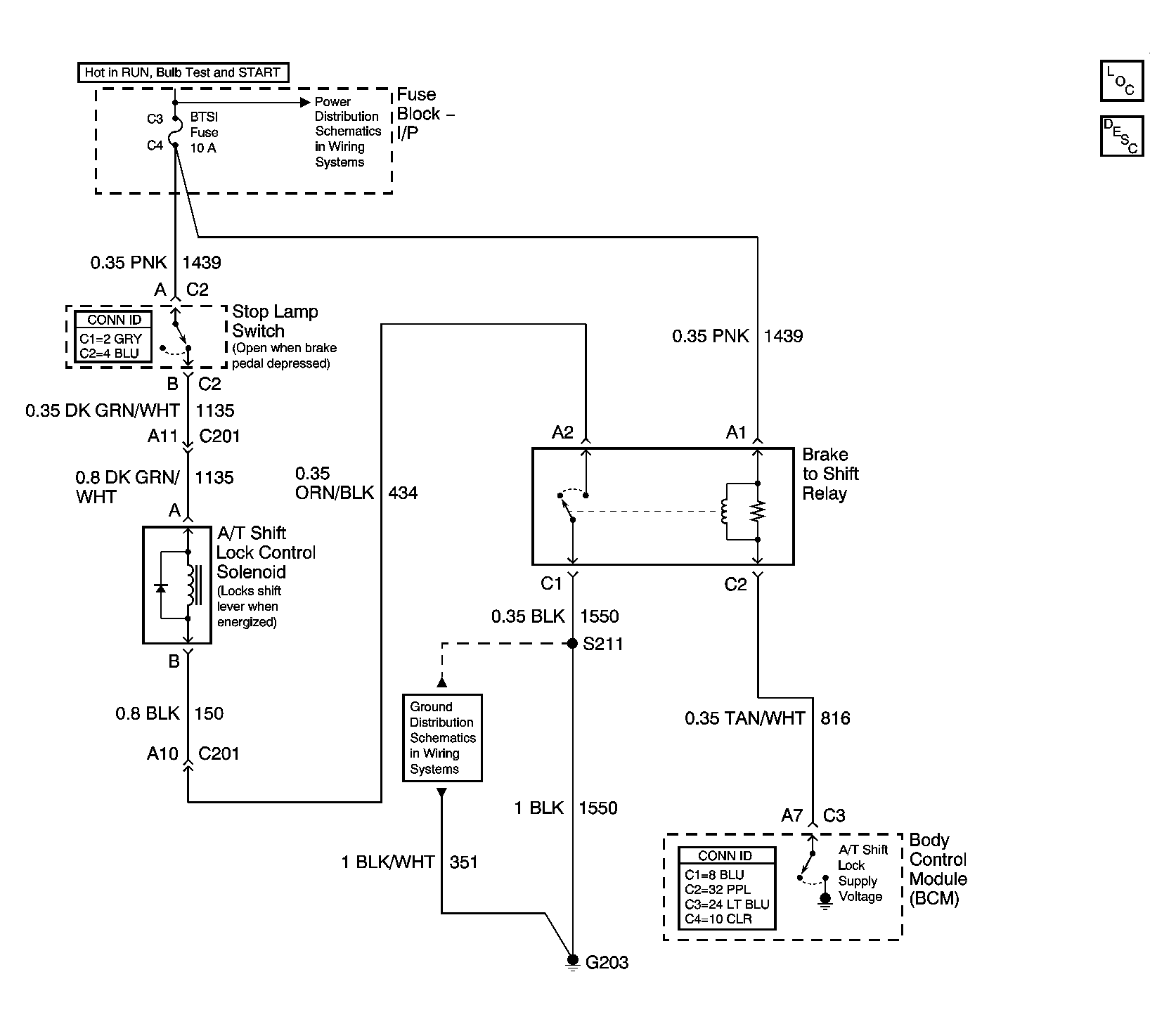

Fig 1: Automatic Transmission Shift Lock Control Schematics

GM1377755

Courtesy of GENERAL MOTORS CORP.
