Automatic Transmission Controls Schematics

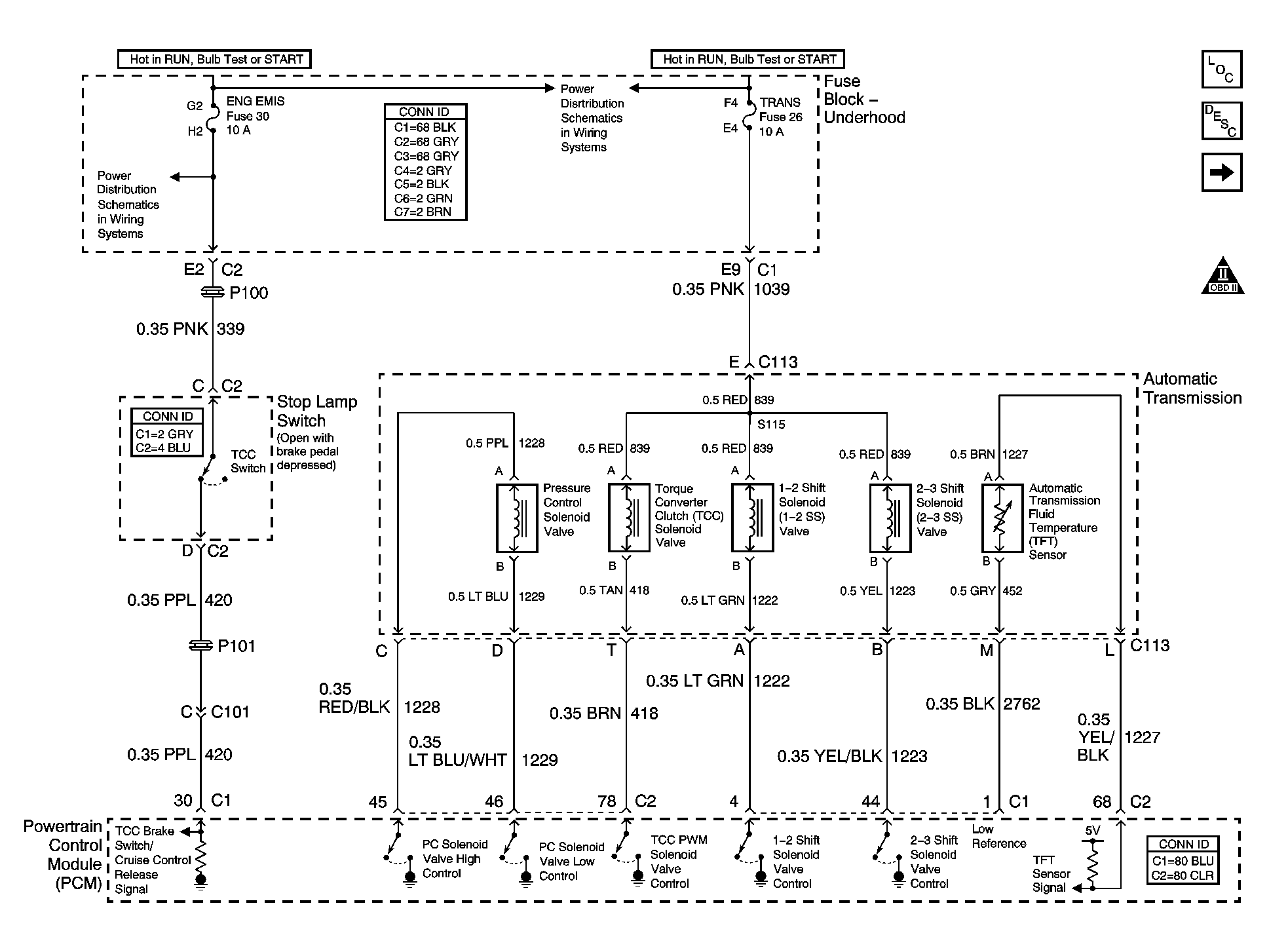

Fig 1: Solenoid Controls & TFT Sensor Schematic
GM1217757Courtesy of GENERAL MOTORS CORP.

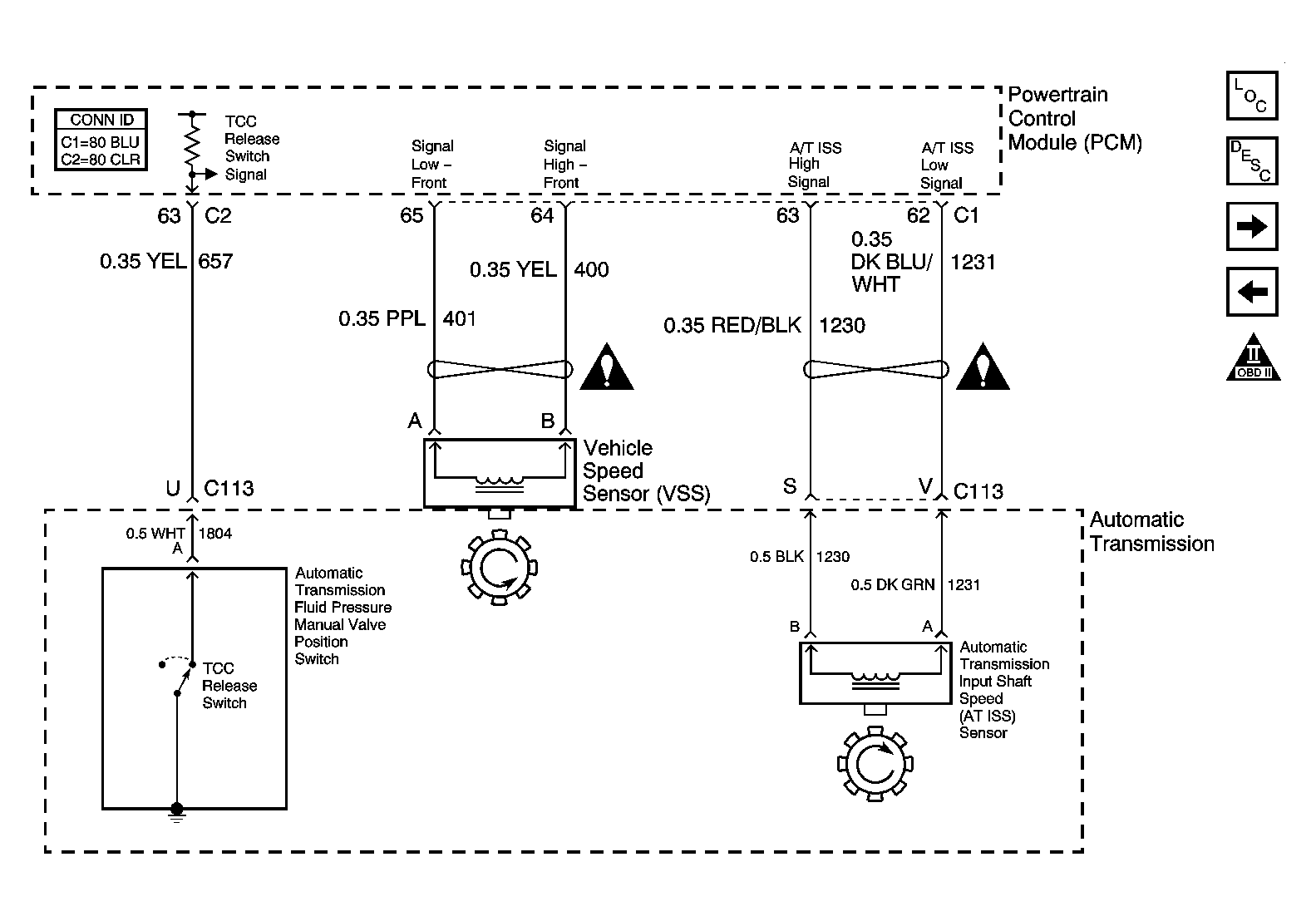

Fig 2: Fluid Pressure Manual Valve Position Switch, ISS Sensor & VSS Schematic
GM1275983Courtesy of GENERAL MOTORS CORP.

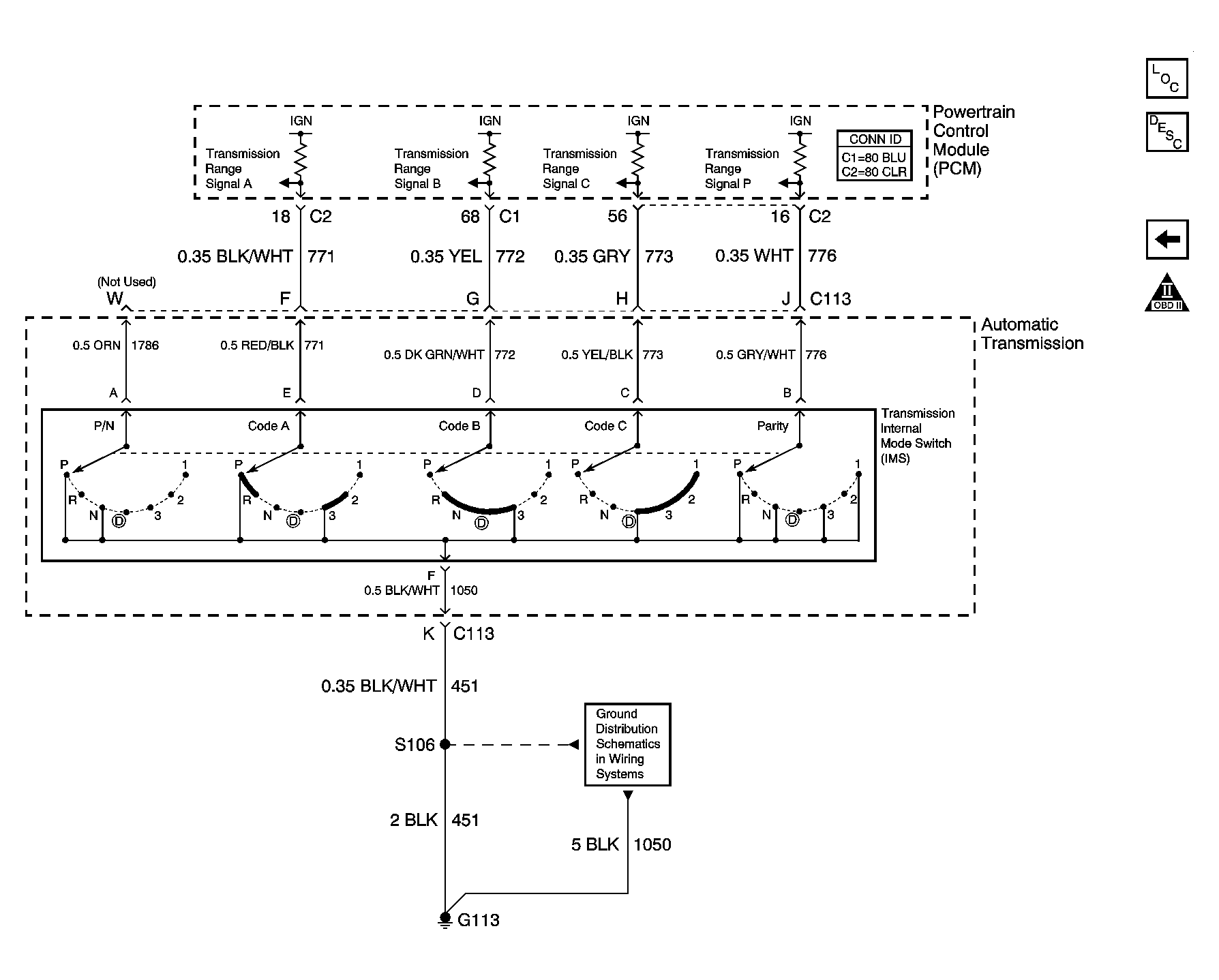

Fig 3: Internal Mode Switch (IMS) Schematic
GM1377384Courtesy of GENERAL MOTORS CORP.
