Removal Procedure

    CAUTION: Refer to Automatic Transaxle Range Selector Cable Caution in Cautions and Notices.
  1. Remove the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement in Engine Controls - 3.1L.
    2. Fig 1: View Of Automatic Transaxle Range Selector Cable At Wiring Harness Clip
    GM161181Courtesy of GENERAL MOTORS CORP.
  2. Remove the A/T range selector cable from the wiring harness clip or strap.

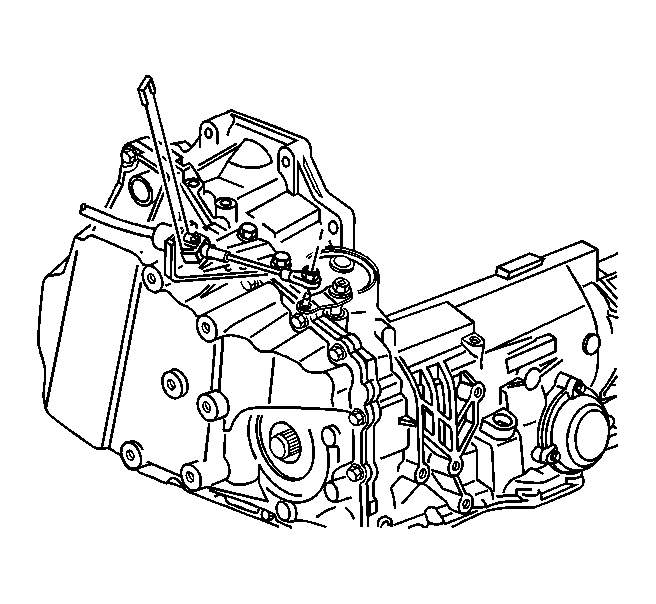

    3. Fig 2: View Of Transaxle Range Selector Cable & Shift Lever
    GM629690Courtesy of GENERAL MOTORS CORP.
  3. Remove the A/T range selector cable retainer.
    4. Fig 3: Identifying Automatic Transaxle Range Selector Cable To Cable Bracket
    GM629687Courtesy of GENERAL MOTORS CORP.
  4. Remove the A/T range selector cable from the A/T range selector lever.
  5. Remove the A/T range selector cable from the A/T range selector cable bracket.
    6. Fig 4: View Of Automatic Transmission Range Selector Cable At Shift Control Lever
    GM161185Courtesy of GENERAL MOTORS CORP.
  6. Remove the left knee bolster. Refer to Knee Bolster Replacement in Instrument Panel, Gages and Console.
  7. Remove the A/T range selector cable from the shift control lever.
    8. Fig 5: View Of Automatic Transmission Range Selector Cable At Cowl
    GM161182Courtesy of GENERAL MOTORS CORP.
  8. Install a piece of mechanics wire to the end of the A/T range selector cable.
  9. Remove the A/T range selector cable through the hole in the cowl.
