Installation Procedure

CAUTION: Refer to Automatic Transaxle Range Selector Cable Caution in Cautions and Notices.
    Fig 1: View Of Automatic Transmission Range Selector Cable At Cowl
    GM161182Courtesy of GENERAL MOTORS CORP.
  1. Install the A/T range selector cable through the hole in the cowl.
  2. Remove the mechanics wire from the end of the A/T range selector cable.
    3. Fig 2: View Of Automatic Transmission Range Selector Cable At Shift Control Lever
    GM161185Courtesy of GENERAL MOTORS CORP.
  3. Install the A/T range selector cable to the shift control lever.
  4. Install the left knee bolster. Refer to Knee Bolster Replacement in Instrument Panel, Gages and Console.

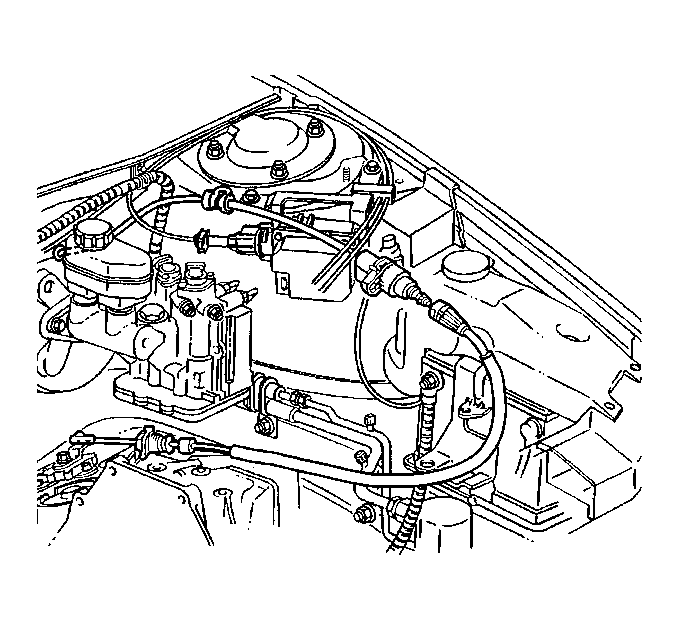

    5. Fig 3: Routing Automatic Transmission Range Selector Cable
    GM161152Courtesy of GENERAL MOTORS CORP.
  5. Properly route and position the A/T range selector cable.
    6. Fig 4: Identifying Automatic Transaxle Range Selector Cable To Cable Bracket
    GM629687Courtesy of GENERAL MOTORS CORP.
  6. Install the A/T range selector cable to the A/T range selector cable bracket.
  7. Install the A/T range selector cable to the A/T range selector lever.
    8. Fig 5: View Of Transaxle Range Selector Cable & Shift Lever
    GM629690Courtesy of GENERAL MOTORS CORP.
  8. Install the A/T range selector cable retainer.
    9. Fig 6: Connecting Cable Sections
    GM161176Courtesy of GENERAL MOTORS CORP.
  9. Place the transaxle in the NEUTRAL position.
  10. Place the shift control in the NEUTRAL position.
  11. Connect each cable section to the following before connecting the 2 cable sections.
    1. Insert the metal end fitting of the shift control cable into the transaxle cable end.
    2. Use the molded end fittings to push the metal end fitting of the shift control cable and the transaxle cable end together until the metal post snaps into place.
  12. Depress the adjuster clip once. This mobilizes the adjuster housing toward the transaxle end fitting.
  13. Line up the end fittings so they slide together until you feel the parts cam together and lock.
    14. Fig 7: Depressing Adjuster Clip
    GM161177Courtesy of GENERAL MOTORS CORP.
  14. Depress the adjuster clip completely. This locks the cable into its adjusted service position.
  15. Pull the conduit in the opposite direction to assure full system adjustment of the shift cable.
    16. Fig 8: View Of Fully Engaged Conduit
    GM161178Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The horseshoe clip with the tab is flush when fully engaged.
  16. Ensure the conduit is fully engaged.
    17. Fig 9: View Of Not Fully Engaged Conduit
    GM161179Courtesy of GENERAL MOTORS CORP.
  17. The horseshoe clip with the tab is not flush when not fully engaged.
    18. Fig 10: View Of Automatic Transaxle Range Selector Cable At Wiring Harness Clip
    GM161181Courtesy of GENERAL MOTORS CORP.
  18. Install the A/T range selector cable to the wiring harness clip or strap.
  19. Adjust the A/T range selector cable. Refer to Automatic Transmission Range Selector Cable Adjustment .
  20. Install the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement in Engine Controls - 3.1L.
