Installation Procedure

  1. Position the transaxle bracket to the transaxle.
    2. Fig 1: View Of Transaxle Mount Bracket And Bolts
    GM161246Courtesy of GENERAL MOTORS CORP.
  2. Hand start the transaxle mount bracket to transaxle bolts.
    3. NOTE: Refer to Fastener Notice in CAUTIONS AND NOTICES .
  3. Install the transaxle bracket bolts.

    Tighten:  Start with the forward lower bolt and work clockwise to tighten the transaxle bracket bolts to 95 N.m (70 lb ft).

  4. Remove the support from the transaxle.

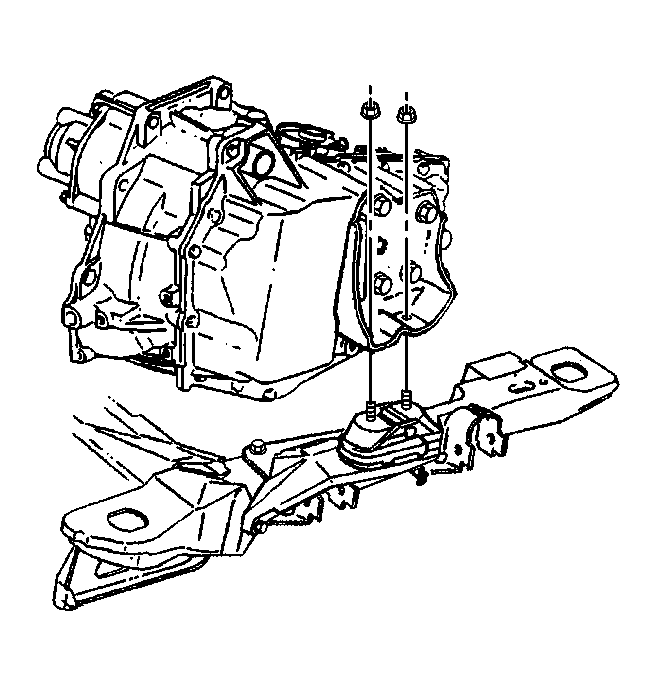

    5. Fig 2: View Of Transaxle Bracket To Transaxle Mount Upper Nuts
    GM161248Courtesy of GENERAL MOTORS CORP.
  5. Install the transaxle bracket to the transaxle mount upper nuts.

    Tighten:  Tighten the transaxle mount upper nuts to 47 N.m (35 lb ft).

  6. Install the left engine splash shield. Refer to Splash Shield Replacement - Engine in Body Front End.
  7. Install the left front tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  8. Lower the vehicle.
