Installation Procedure

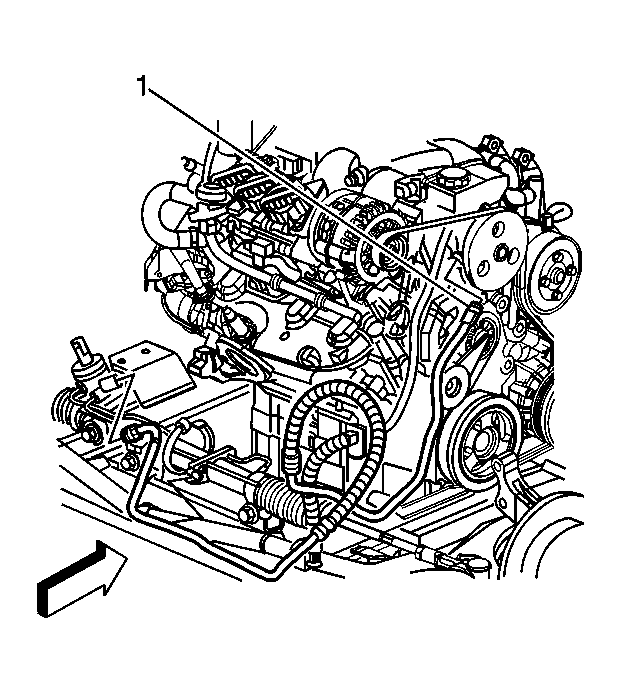

    Fig 1: Locating Power Steering Pressure Hose
    GM469241Courtesy of GENERAL MOTORS CORP.
  1. Install the power steering pressure hose (1) to the vehicle.
  2. Install the power steering pressure hose to the clamps on the power steering gear.
    3. Fig 2: View Of Power Steering Lines And Power Steering Gear
    GM417973Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the power steering pressure hose to the power steering gear.

    Tighten:  Tighten the fitting to 27 N.m (20 lb ft).

  4. Install the power steering pressure hose to the retaining bracket on the engine.
  5. Lower the vehicle.

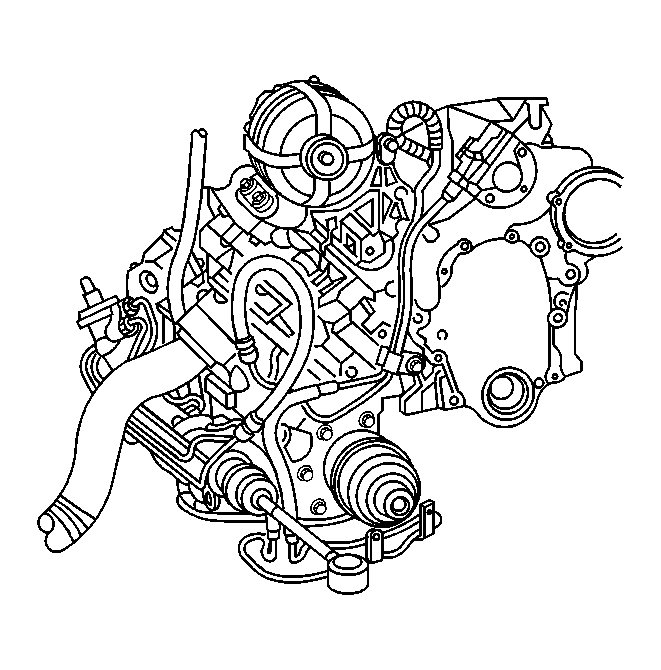

    6. Fig 3: View Of Pressure Hose At Power Steering Pump
    GM515071Courtesy of GENERAL MOTORS CORP.
  6. Install the power steering pressure hose to the power steering pump.

    Tighten:  Tighten the fitting to 27 N.m (20 lb ft).

  7. Install the coolant reservoir. Refer to Coolant Recovery Reservoir Replacement in Engine Cooling.
  8. Fill the power steering system with power steering fluid. Refer to Checking and Adding Power Steering Fluid .
  9. Bleed the power steering system. Refer to Bleeding the Power Steering System .
  10. Inspect the power steering system for leaks. Refer to Power Steering Fluid Leaks .
  11. Remove the drain pan from under the vehicle.
