Installation Procedure

WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

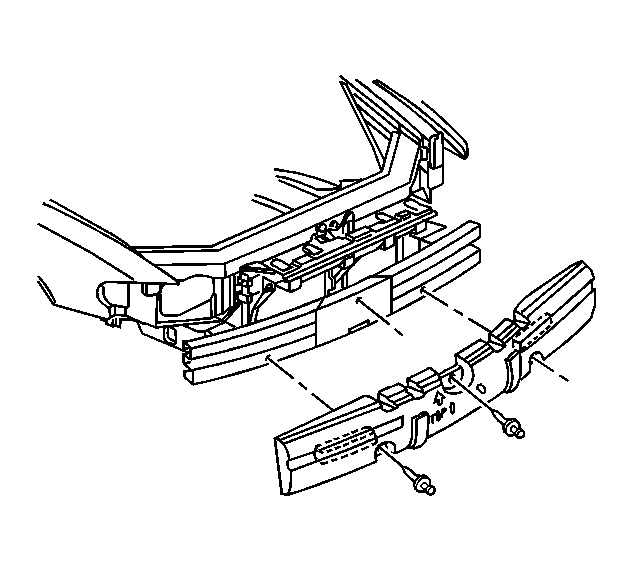

    Fig 1: Front Bumper Energy Absorber
    GM325300Courtesy of GENERAL MOTORS CORP.
  1. Install the front bumper energy absorber to the front bumper impact bar.
  2. Install the push-in retainers to the front bumper energy absorber.
  3. Install the front bumper fascia. Refer to Fascia Replacement - Front Bumper  .
