Body Control System Schematics

WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Power, Ground, And DLC Schematic

Courtesy of GENERAL MOTORS CORP.

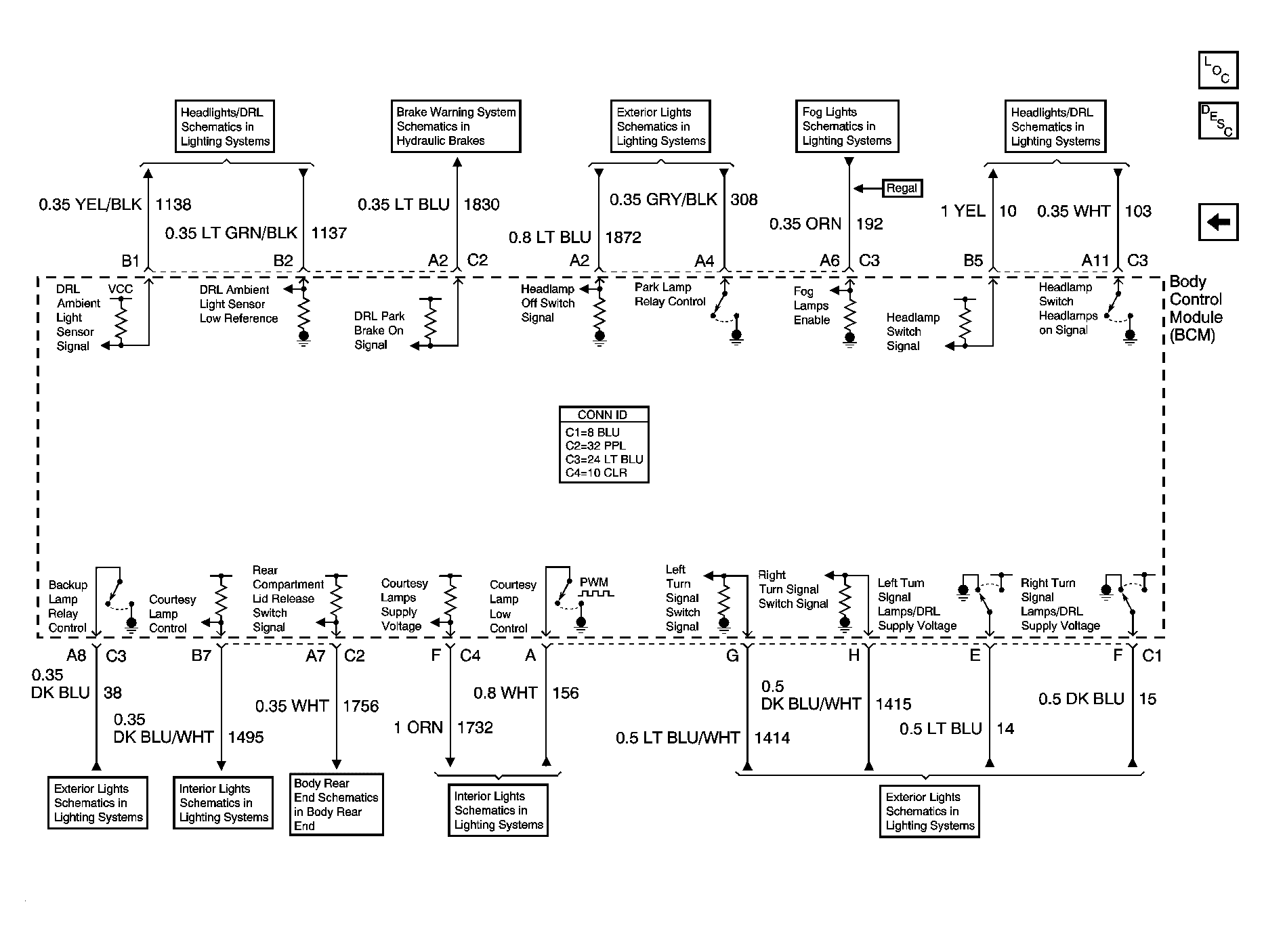

Fig 2: References Schematic, Page 1 Of 2

Courtesy of GENERAL MOTORS CORP.

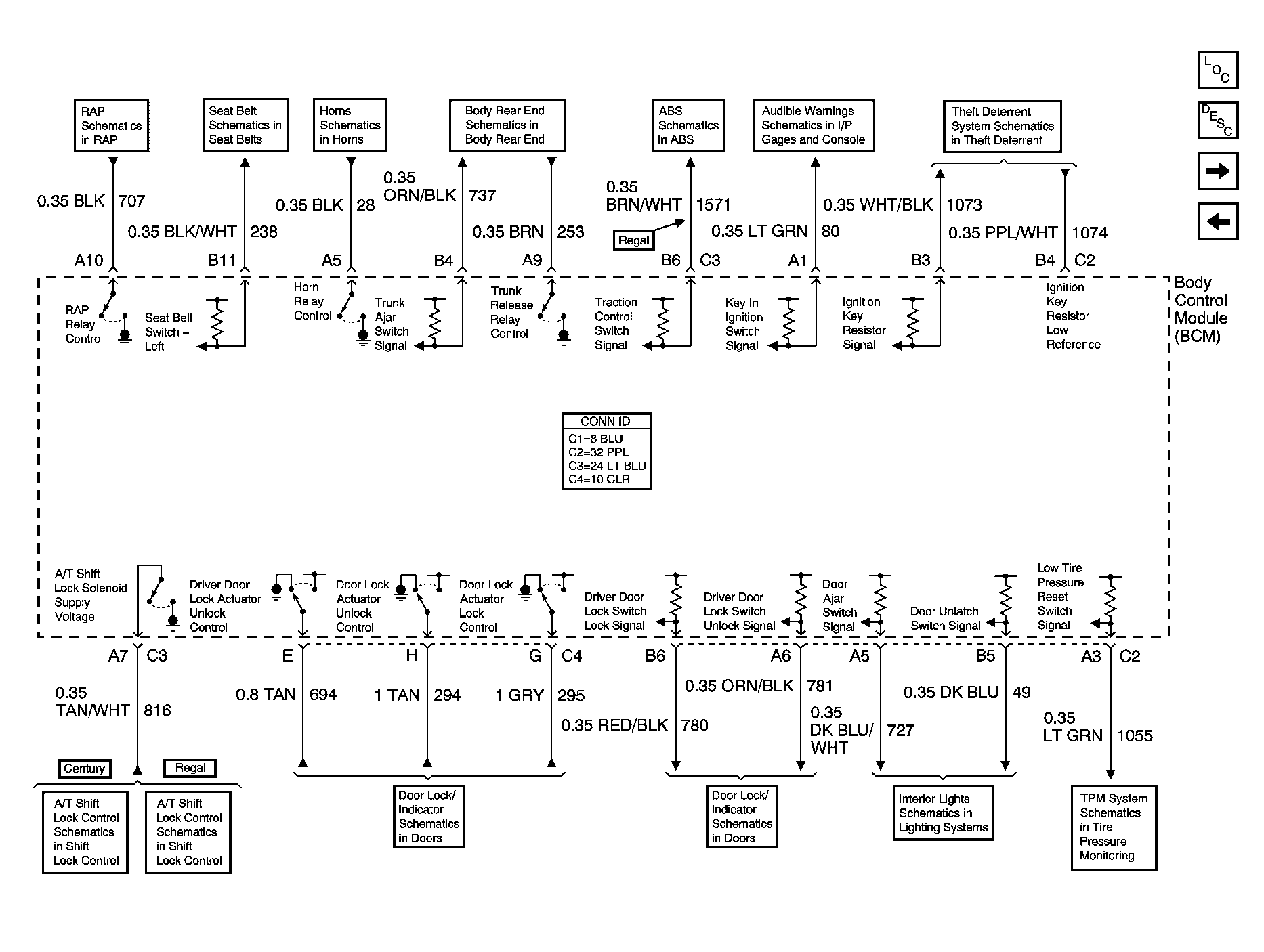

Fig 3: References Schematic, Page 2 Of 2

Courtesy of GENERAL MOTORS CORP.
