Removal Procedure

WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right instrument panel (I/P) insulator. Refer to Closeout/Insulator Panel Replacement - Right in Instrument Panel, Gages and Console.
  2. Pull back the right side of the carpet in order to gain access to the wiring harness.
  3. Disconnect the I/P antenna extension cable from the body harness antenna cable.

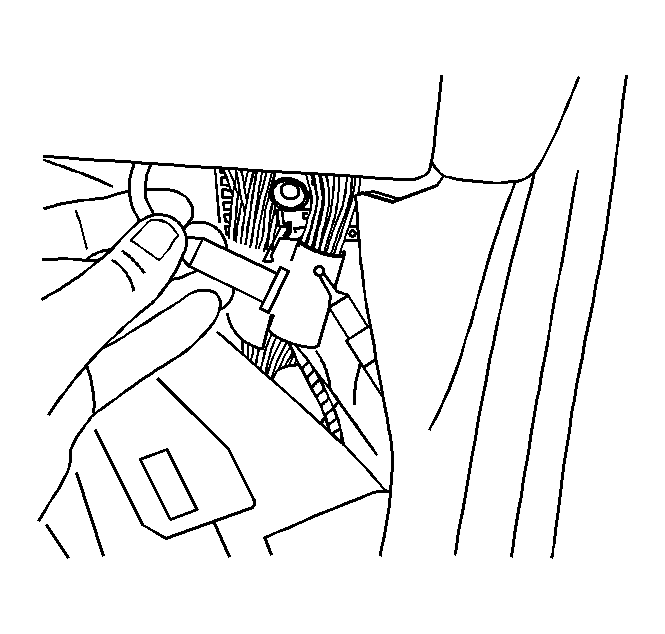

    4. Fig 1: I/P Antenna Extension Cable At Body Harness Antenna Cable
    GM815659Courtesy of GENERAL MOTORS CORP.
  4. Remove the I/P compartment. Refer to Compartment Replacement - Instrument Panel (I/P) in Instrument Panel, Gages and Console.
  5. Remove the radio. Refer to Radio Replacement .
  6. Observe the routing of the I/P antenna extension cable. Cut off the visible ends of the I/P antenna extension cable being replaced:
    • Cut off the radio end of the extension cable.
    • Cut off the end of the cable that connects at the front door hinge pillar. Cut the cable at the location where the cable exits the I/P wiring harness, as shown.

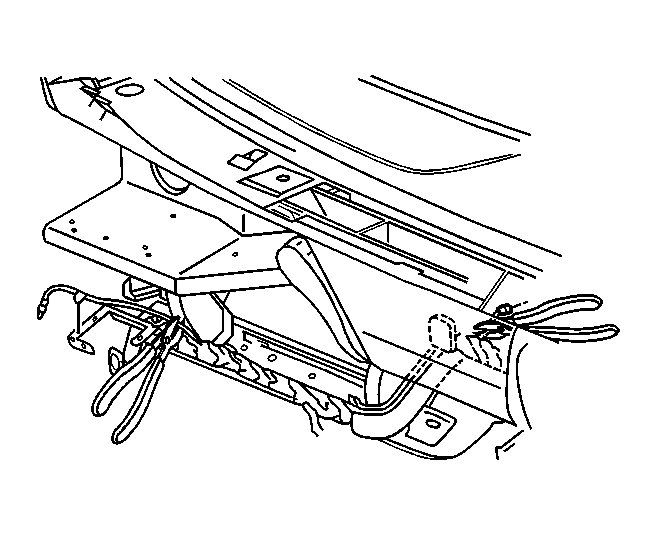

    7. Fig 2: Cut Off Visible Ends Of I/P Antenna Extension Cable
    GM362094Courtesy of GENERAL MOTORS CORP.
