Removal Procedure

WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right upper quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper in Interior Trim.
  2. Disconnect the body harness antenna extension cable from the antenna cable.
    3. Fig 1: Body Harness Antenna Extension Cable At Antenna Cable
    GM910399Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear in Seats.
  4. Remove the right instrument panel (I/P) insulator. Refer to Closeout/Insulator Panel Replacement - Right in Instrument Panel, Gages, and Console.
  5. Remove the right front carpet retainer. Refer to Carpet Retainer Replacement - Front in Interior Trim.
  6. Remove the right rear carpet retainer. Refer to Carpet Retainer Replacement - Rear in Interior Trim.
  7. Remove the lower trim panel from the right center pillar.
  8. Pull back the right side of the carpet in order to gain access to the wiring harness.
  9. Disconnect the I/P antenna extension cable from the body harness antenna cable at the front door hinge pillar.
  10. Observe the routing of the antenna cable. Cut off the visible ends of the body harness antenna cable to be replaced.

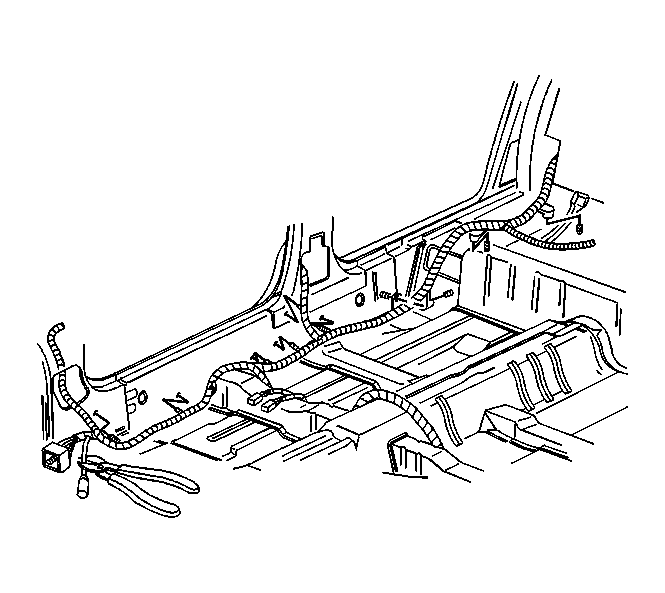

    11. Fig 2: Routing Of Antenna Cable
    GM676065Courtesy of GENERAL MOTORS CORP.
