Installation Procedure

WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the antenna module.
  2. Connect the antenna coaxial cable to the antenna module.
  3. Connect the antenna module electrical connector.
    4. NOTE: Refer toFastener Notice in Cautions and Notices.
  4. Install the antenna module bolt.

    Tighten:  Tighten the bolt to 3 N.m (27 lb in).

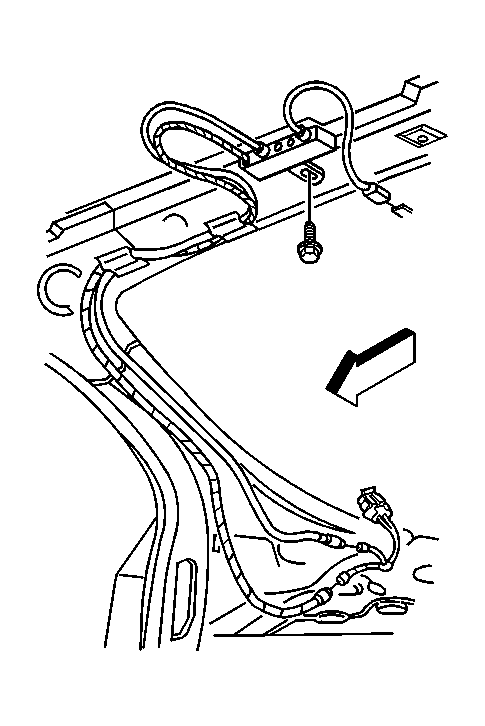

    5. Fig 1: Antenna Module & Bolt
    GM362096Courtesy of GENERAL MOTORS CORP.
  5. Connect the antenna lead to the rear window antenna connector.
  6. With tape, secure the wiring harnesses to the inner upper panel of the rear window.
  7. Install the headliner. Refer to Headliner Replacement in Interior Trim.
  8. Install the rear shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf in Interior Trim.
