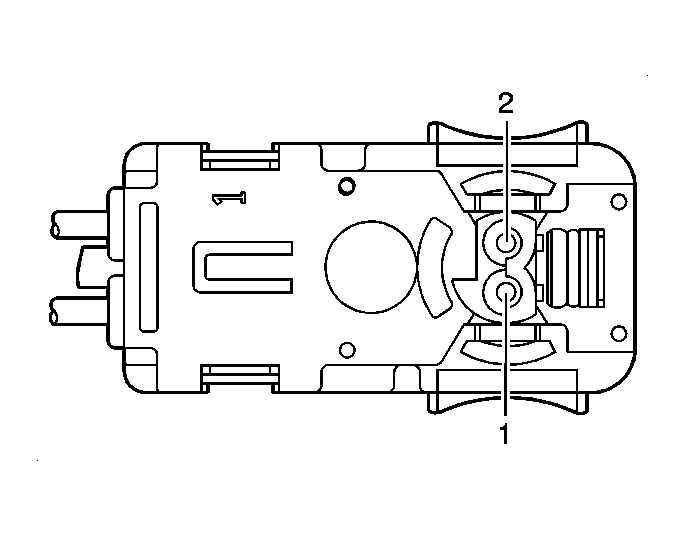

Inflatable Restraint Steering Wheel Module Connector End View
Inflatable Restraint Steering Wheel Module Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 81040434 (FCI)
- 2-Way F Airbag Reverse Tether Assembly (BLK/YEL)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
WHT |
347 |
Steering Wheel Module - High Control |
| 2 |
DK GRN |
348 |
Steering Wheel Module - Low Control |
