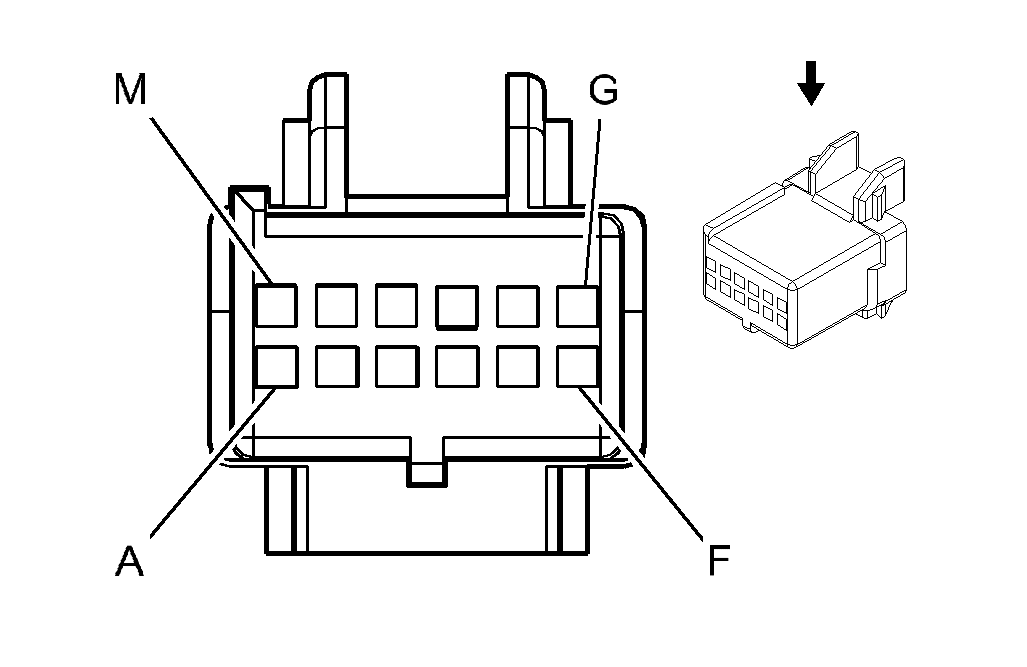

HVAC Control Module, Connector End View C2
HVAC Control Module, C2 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | DK GRN | 71 | Off Blower Motor Control |
| B | DK GRN/WHT | 762 | A/C Request Signal |
| C | BRN | 41 | Ignition 3 Voltage |
| D | WHT | 193 | Rear Defog Relay Control |
| E | WHT/BLK | 1236 | Right Air Temperature Door Control |
| F | - | - | Not Used |
| G | DK BLU | 1199 | Air Temperature Door Control |
| H | - | - | Not Used |
| J | GRY | 8 | Instrument Panel Lamps Dimmer Switch Signal |
| K | BLK | 1450 | Ground |
| L | ORN | 640 | Battery Positive Voltage |
| M | YEL | 32 | Instrument Panel Lamp Fuse Supply Voltage - 1 |
