Engine Electrical Component Views

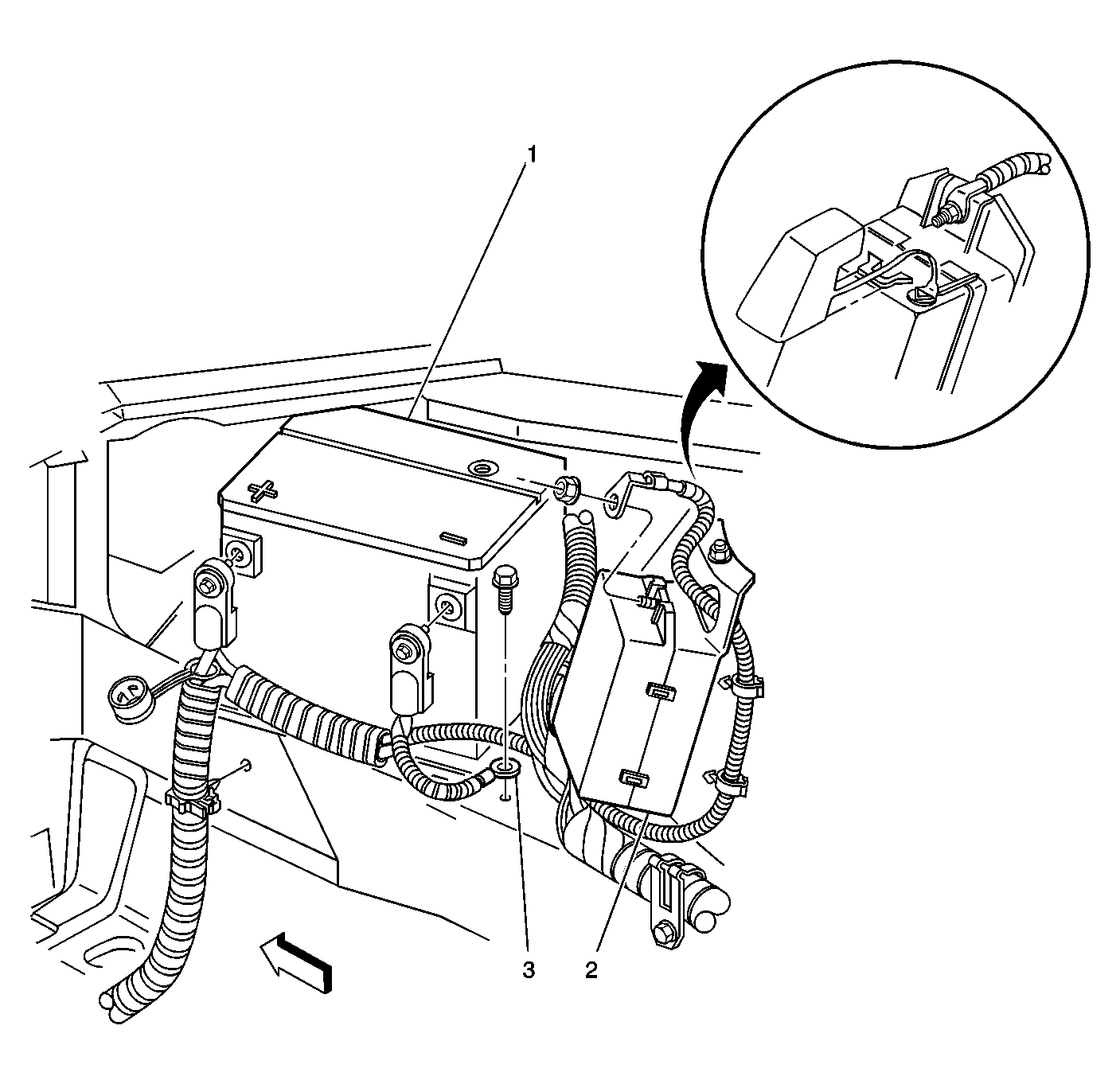

Fig 1: Battery Cable And Grounding Point Component View

Courtesy of GENERAL MOTORS CORP.

Fig 2: Upper Rear Of The Engine Components (LG8) Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator B+
2	Generator
3	Generator Connector
4	Engine Wiring Harness
5	C102
6	Heated Oxygen Sensor (HO2S) 1
7	Ignition Control Module (ICM), C2
8	Ignition Control Module (ICM), C3

Fig 3: Lower Front Of The Engine Components (LG8)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Crankshaft Position (CKP) Sensor A Connector
2	Knock Sensor (KS) 1
3	Engine Oil Pressure (EOP) Switch
4	Starter
5	Engine Wiring Harness
6	Starter Solenoid S Terminal
7	Fusible Link
8	Starter Solenoid B Terminal
9	Positive Battery Lead
10	A/C Compressor Clutch
